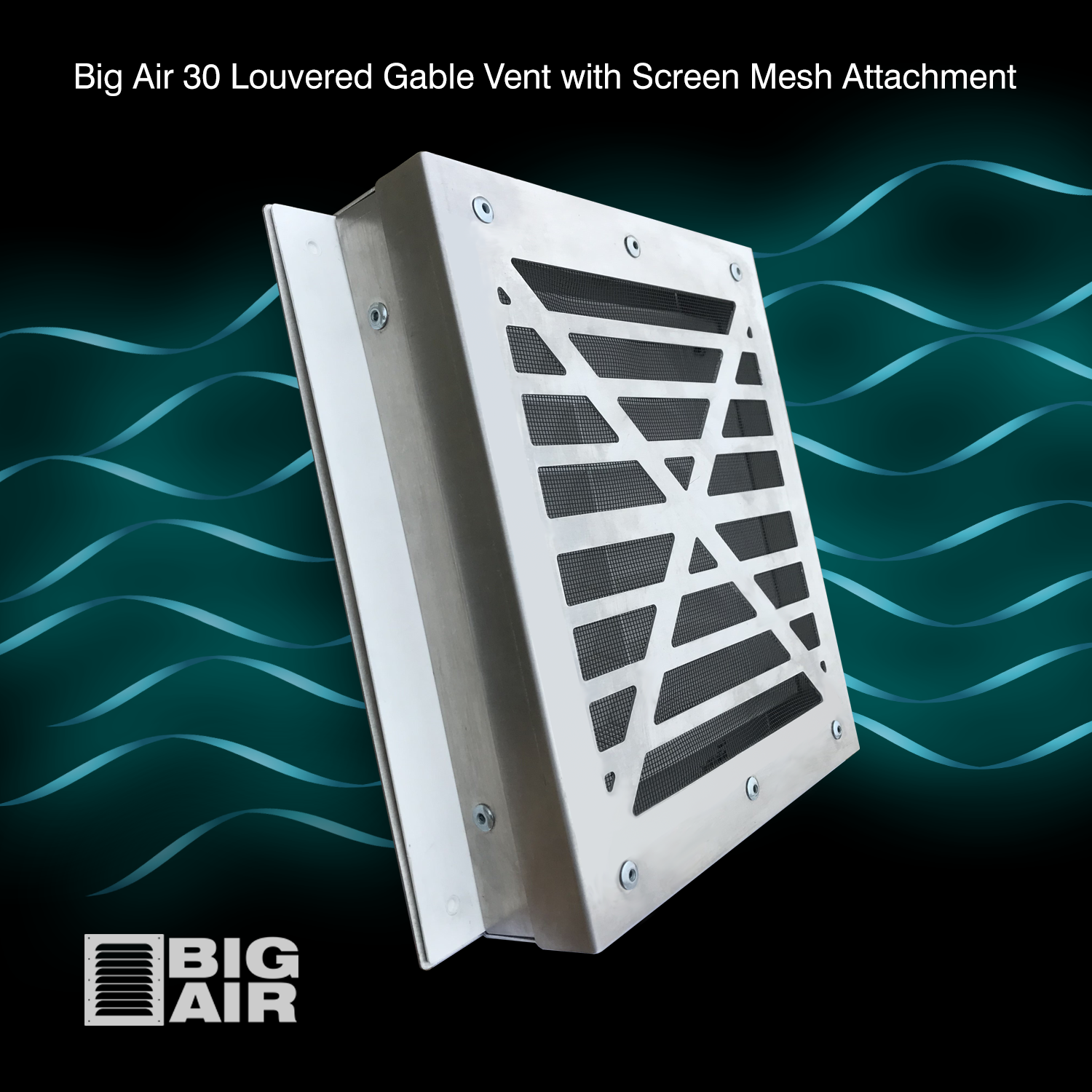

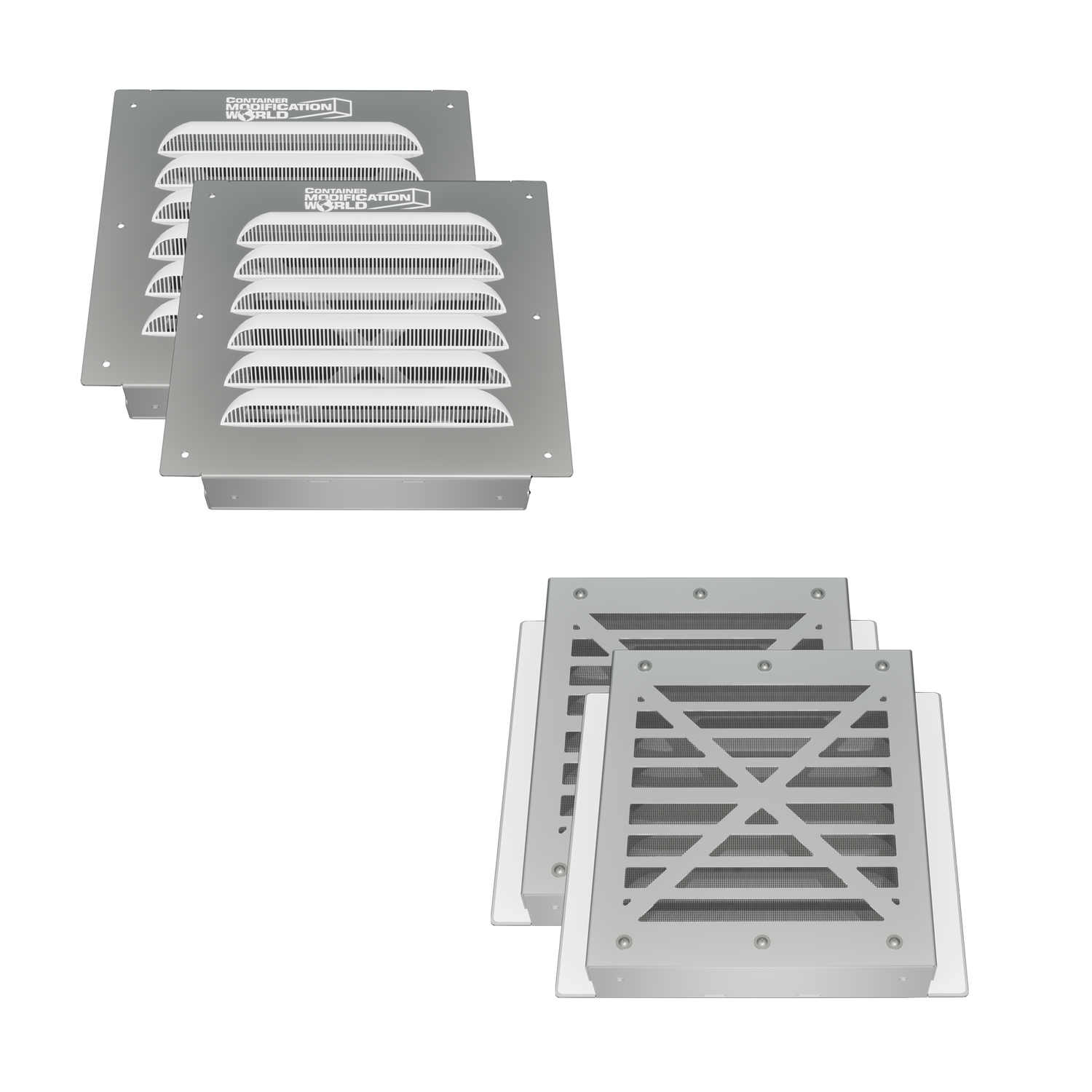

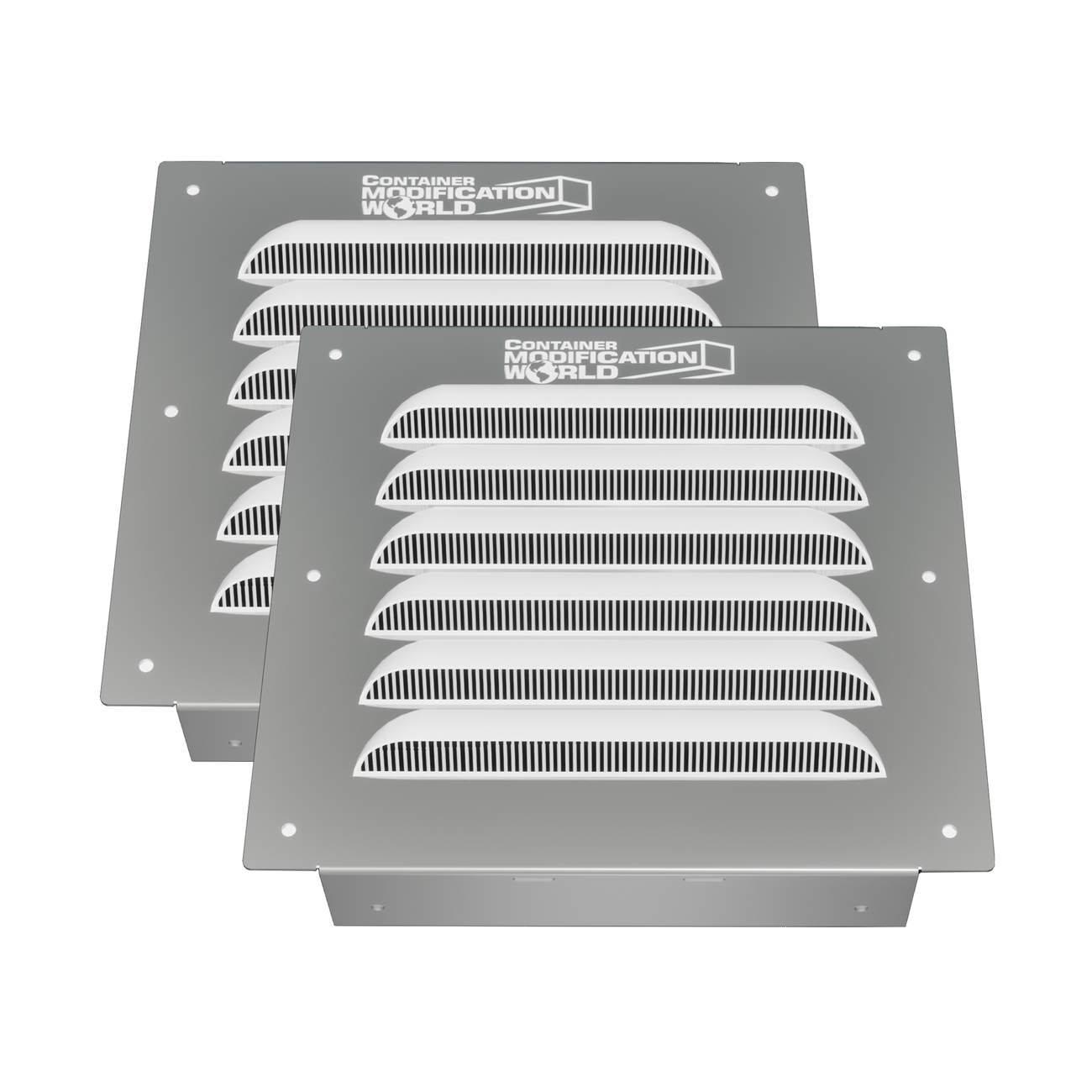

BIG AIR® 30 Louvered Gable Vents

BIG AIR® Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.

BIG AIR® Louvered Container Vents (sizes: 30, 45 & 60), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets).

A minimum of two vents are required per container for temperature & moisture control in temperate climates. Four vents per container are suggested in tropical climates. For HAZMAT ventilation, two vents installed high and two vents installed low are suggested. It is the customer's responsibility to ensure OSHA compliance when storing hazardous materials.

Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BIG AIR® will never rust!

The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.


The above-mentioned variables include, but are not limited to the following:

• Humidity

• Interior temperature

• Exterior temperature

• Wind direction

• Wind speed

• Foundation

• Adequate airflow under the container

• Direct sunlight to roof

• Direct sunlight to walls/doors

• Type of contents stored

• The volume of contents stored inside

• Color of container

• Number of stock vents in the container



Features:

• Designed to be installed anywhere on shipping container side walls, end walls, or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
• Utilizes Duraflo 680812 CSA Approved Gable Vent
• High UV-Resistant Polypropylene and laser-cut aluminum frame will never rust!
• 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose

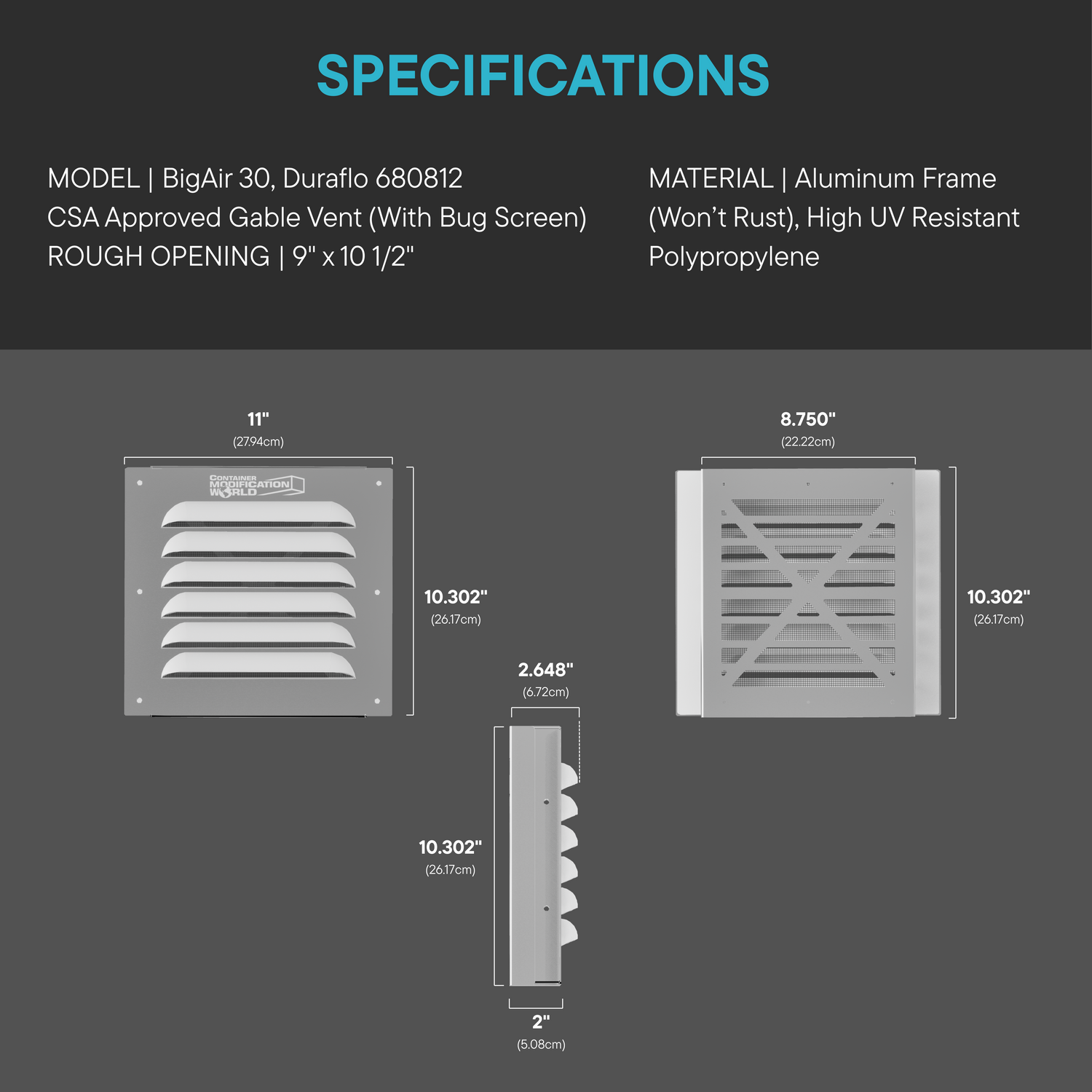

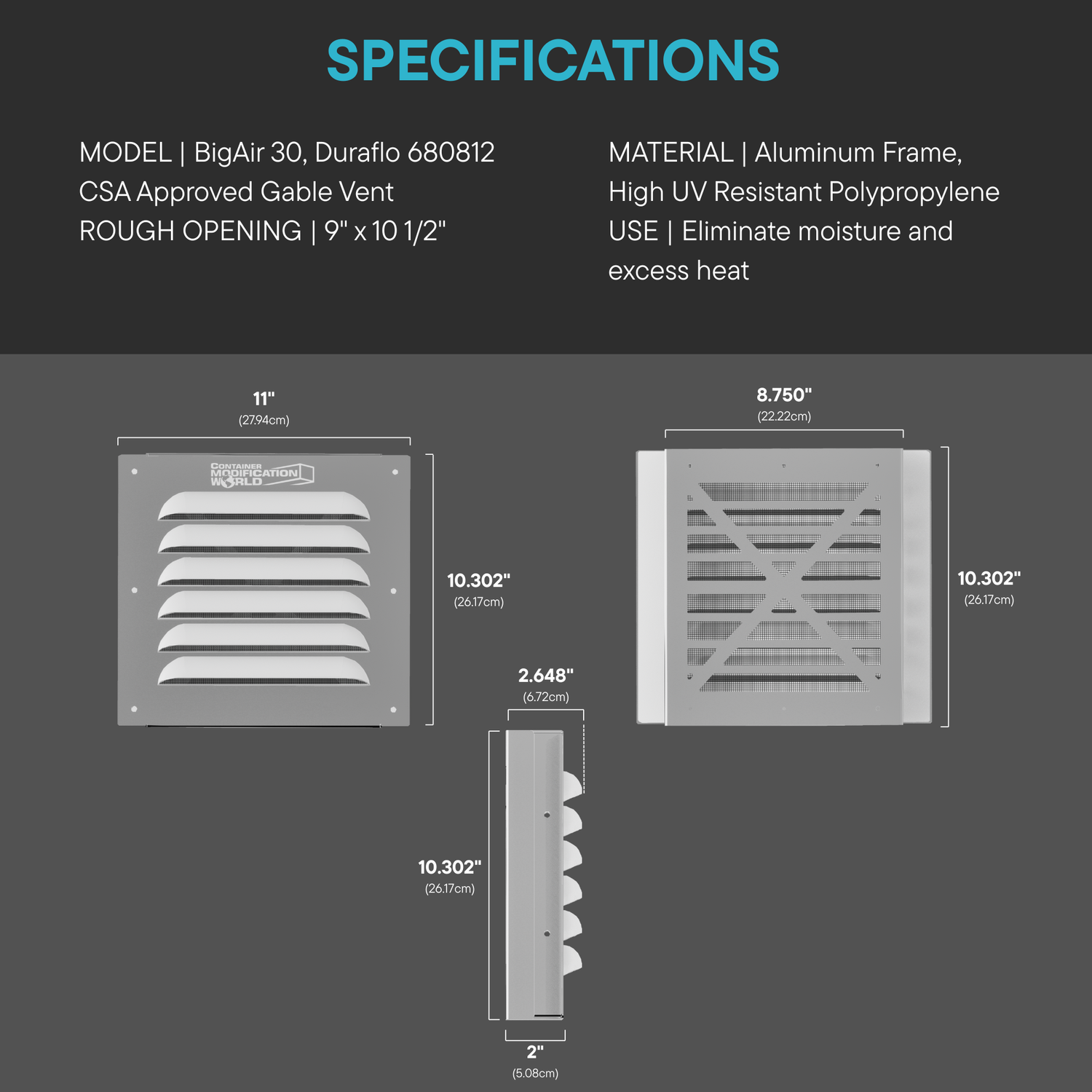

• BIG AIR® 30 = 9” x 10 ½” Rough Opening
• BIG AIR® 45 = 9" x 14" Rough Opening
• BIG AIR® 60 = 9” x 17 ⅞” Rough Opening
• Disclaimer: Ensure Your Container Complies With OSHA When Storing Hazardous Materials

• Includes Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self-Tapping Screws

Installation Instructions

BIG AIR® 30 Installation Instructions (Download PDF)
BIG AIR® 45 Installation Instructions (Download PDF)
BIG AIR® 60 Installation Instructions (Download PDF)
