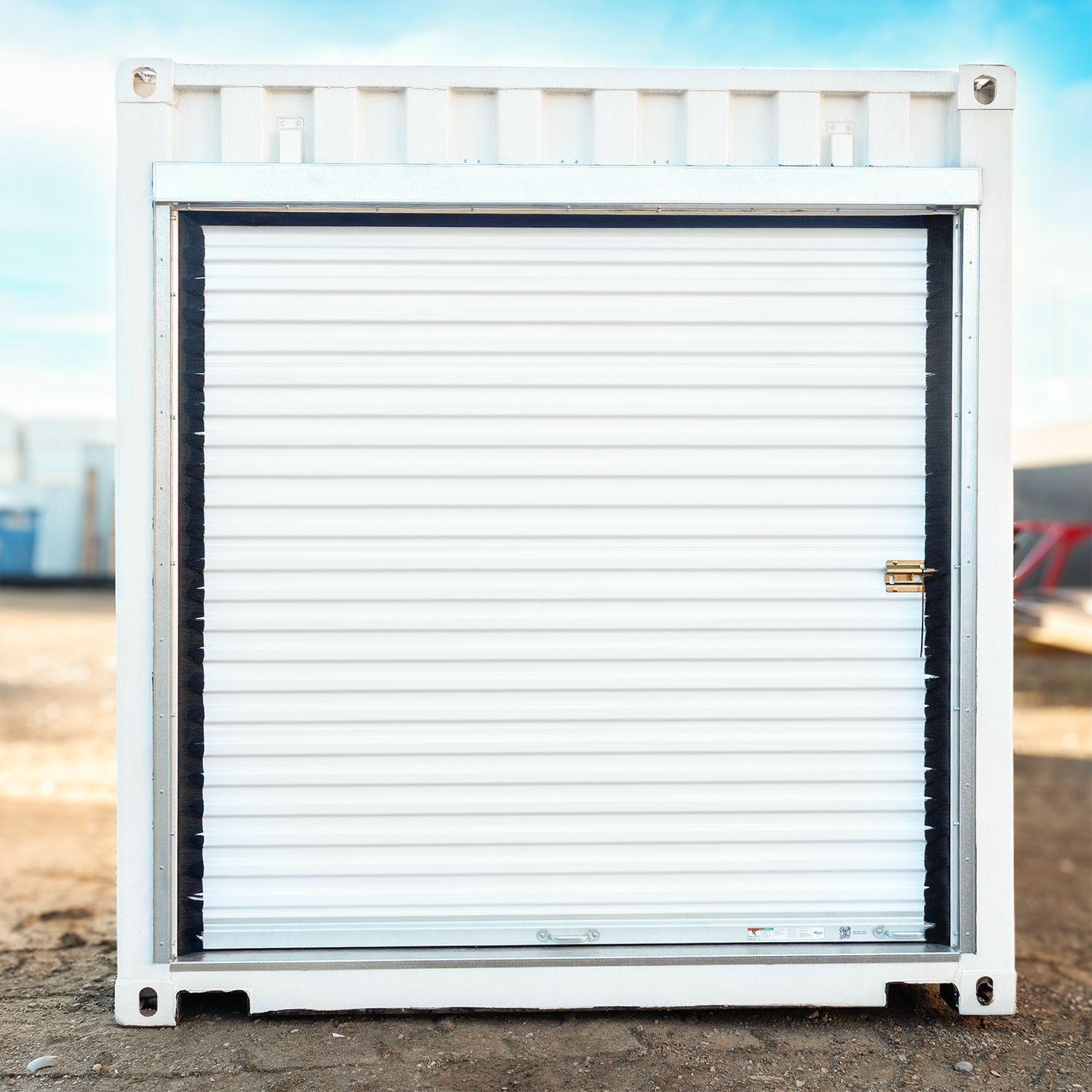

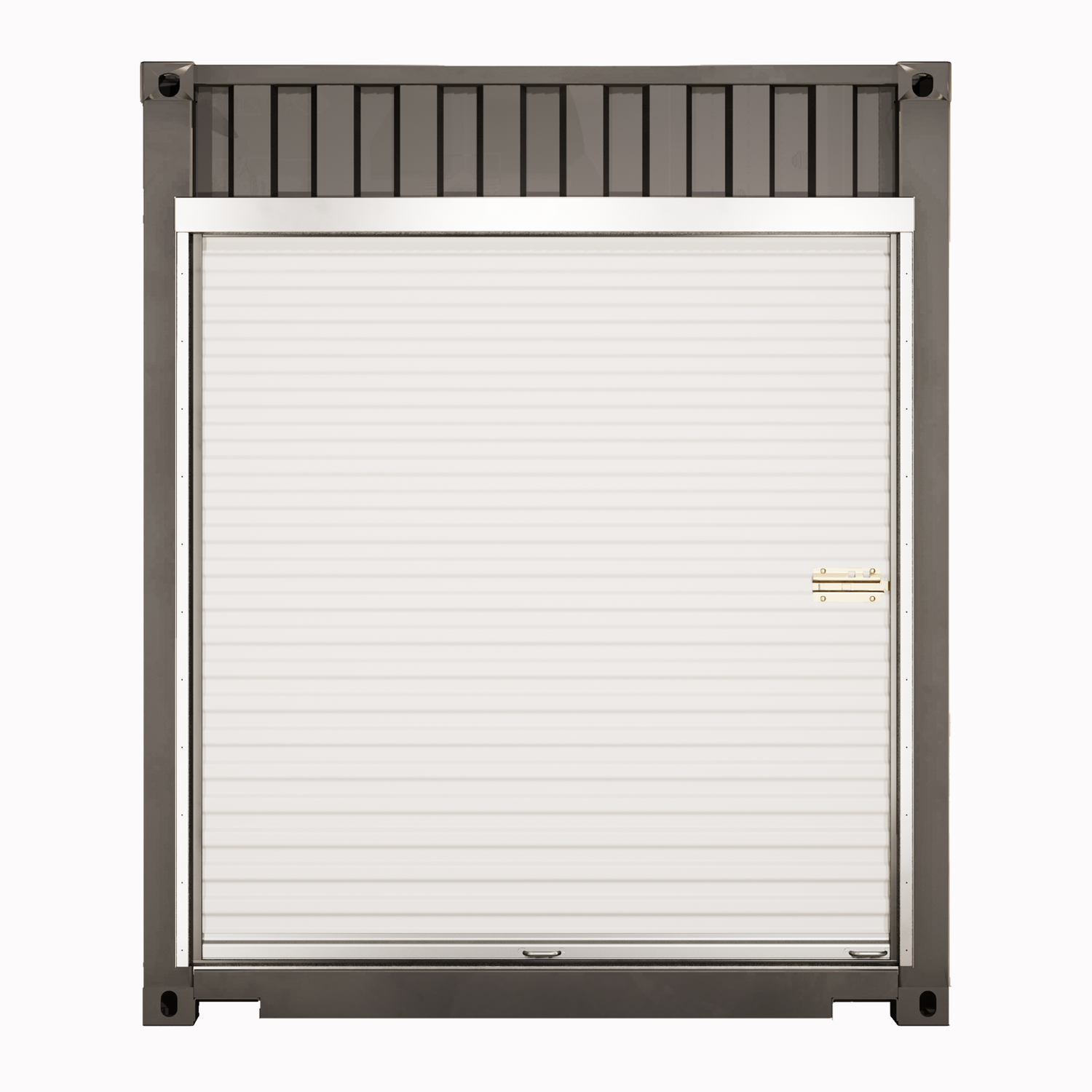

Roll-up door installed on the end wall of a shipping container with galvanized steel framing kit, featuring horizontal panels and a center locking latch

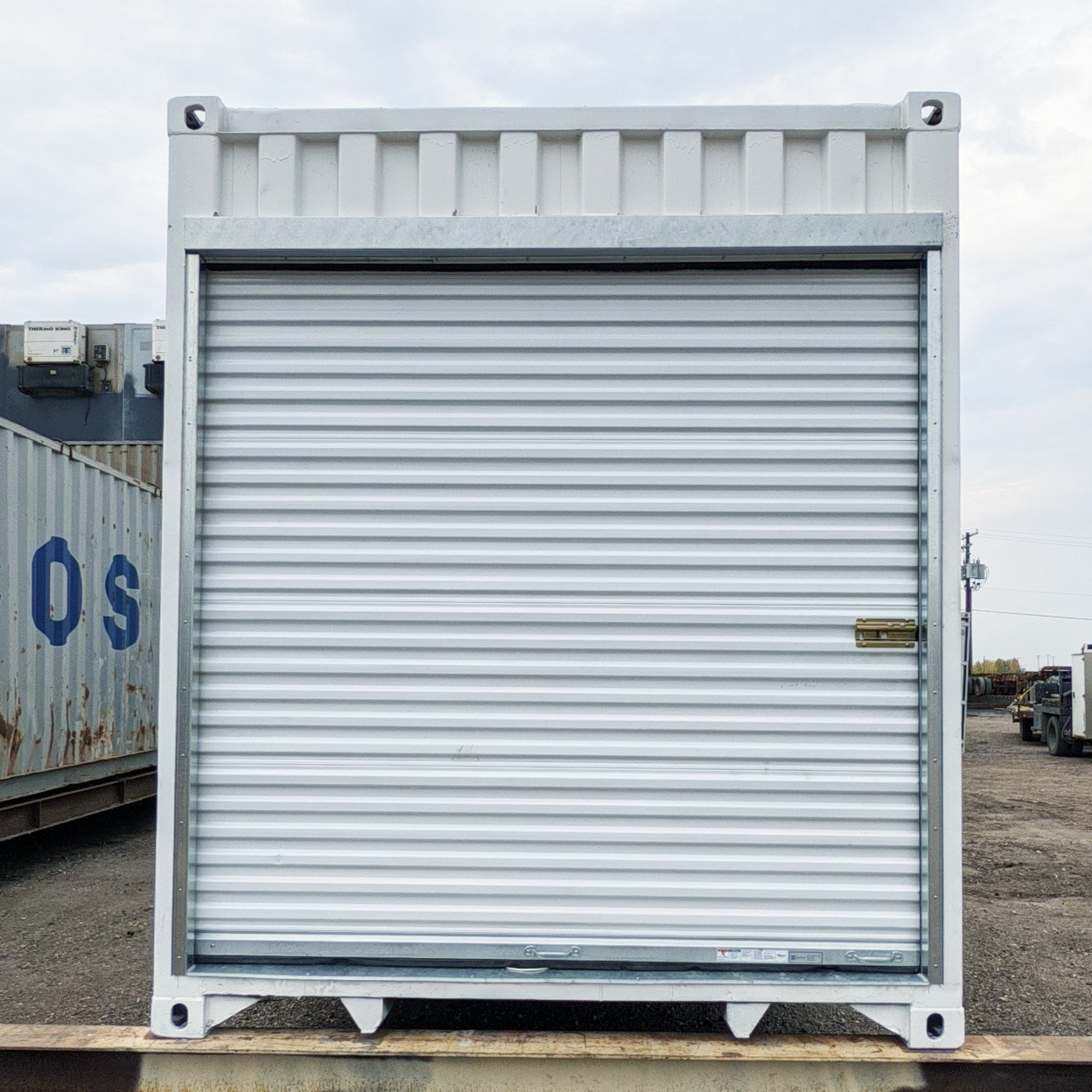

Roll-up door installed on the end of a white shipping container using a galvanized steel framing kit, photographed in an outdoor industrial yard.

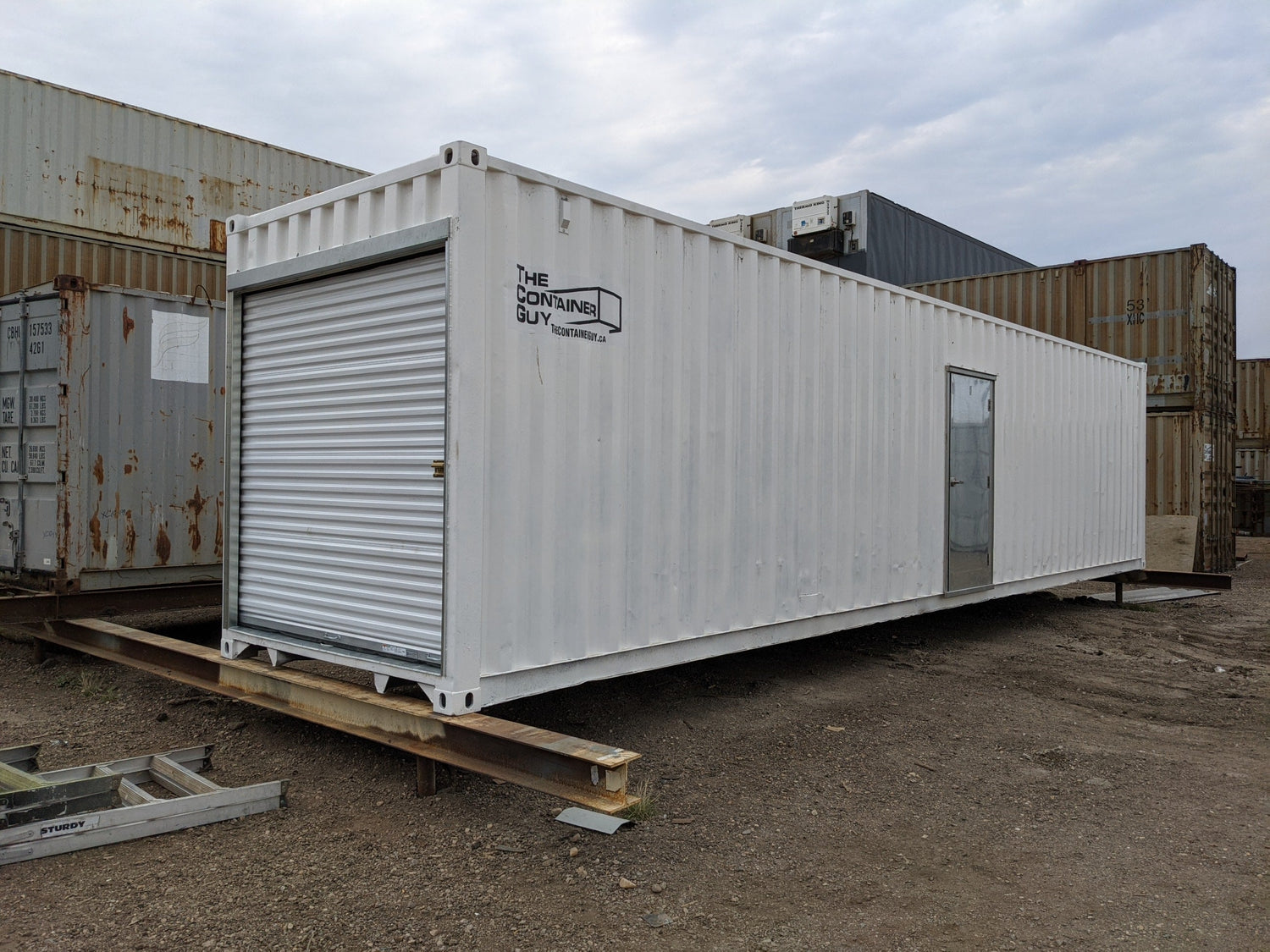

Modified white shipping container featuring a roll-up door on the end and a man door on the side, displayed in an outdoor container yard

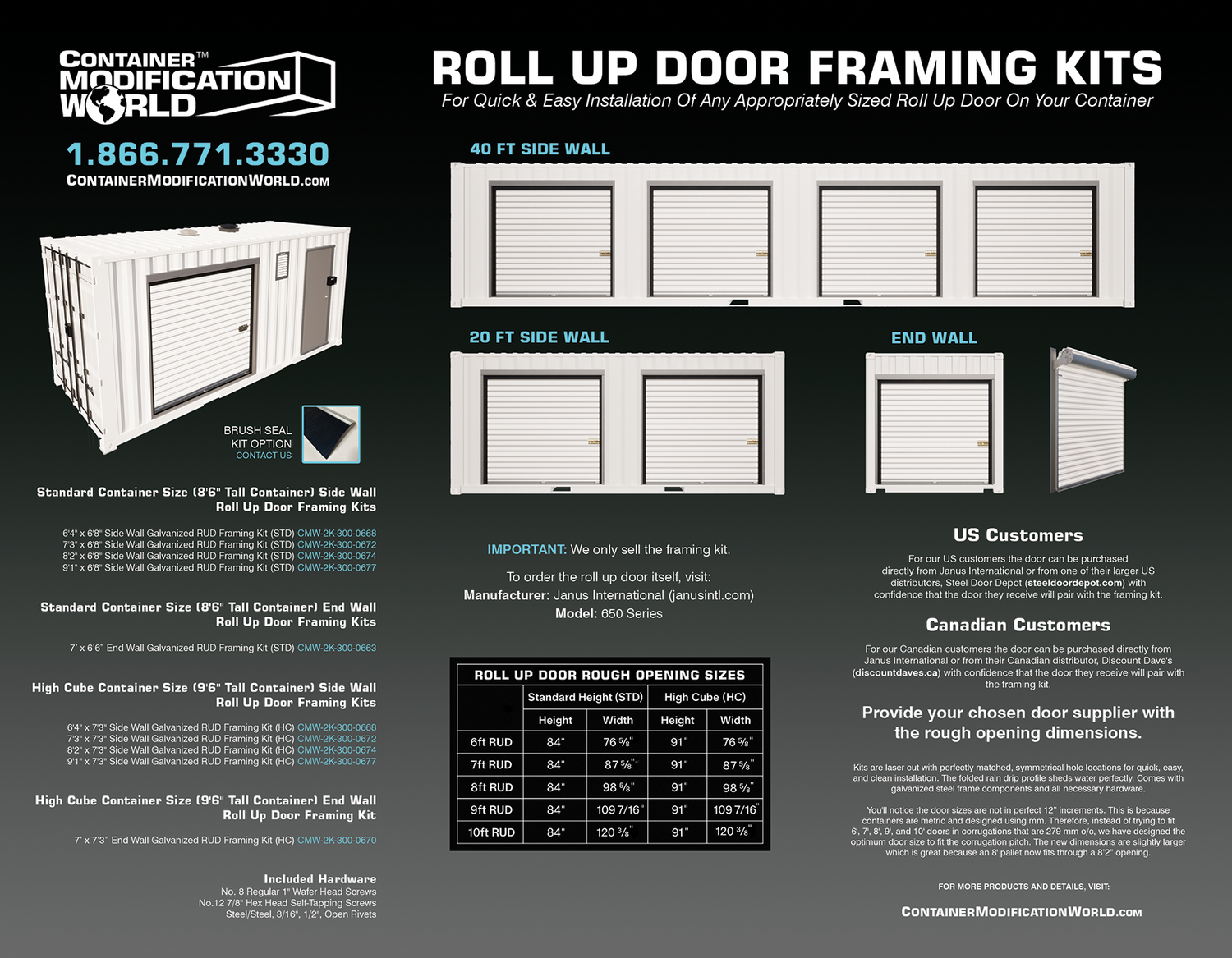

Marketing flyer showing various roll-up door framing kits for standard and high cube shipping containers. Includes product options for 20 ft, 40 ft sidewalls and end walls, model compatibility (Janus 650 Series), rough opening sizes, brush seal option, and ordering details for US and Canadian customers. Features illustrations of installed kits and door configuration variations.
$800.00 CAD
$800.00 CAD
  • A few left in stock!
  • Inventory on the way

IMPORTANT: We only sell the framing kit, we have included the required information below to order the roll up door itself

Manufacture: Janus International

Model: 650 Series

US Customers

For our US Customers, the door can be purchased from one of Janus International's largest US distributors, Steel Door Depot (https://www.steeldoordepot.com/) with confidence that the door they receive will pair with the framing kit.

Canadian Customers

For our Canadian Customers, the door can be purchased from Janus International's Canadian distributor, Discount Dave's (https://www.discountdaves.ca/) with confidence that the door they receive will pair with the framing kit.


Provide your chosen door supplier with the rough opening dimensions

Rough Opening Dimensions for STD & HC End Wall Roll-Up Door Framing Kits:
HC RO: 84 3/8W x 91 1/4H
STD RO: 84 3/8W x 84 1/4H

Janus Roll Up Door Model 650 PDF

This framing kit allows for quick and easy installation of any appropriately sized roll-up door on the sidewall of a container. The door is not included.

Brush seal option is available.

Engineered framing kit is laser cut with all perfectly matched, symmetrical hole locations for quick, easy, and clean installation. The folded profile sheds water perfectly.

Comes with galvanized steel frame components, all necessary hardware and edge trim for the top of the door for a clean appearance and watershed seal.

You'll notice the door size is in inches. This is because containers are metric and designed using mm. Therefore, instead of trying to fit 6', 7', 8', 9', and 10' doors in corrugations that are 278 mm o/c, we have designed the optimum door size to fit the optimum frame design. The new dimensions are slightly larger which is great because an 8' pallet now fits through a 98 1/2" door.

If you are a dealer, this may require a little adjustment to your system/inventory but once you make the switch, we promise, you won't look back.

Included Hardware

  • No.8 Regular, 1" Wafer Head Screws
  • No.12, 7/8" Hex Head Self Tapping Screws
  • Steel/Steel, 3/16", 1/2", Open Rivets



Installation Instructions

Download Installation Instructions (PDF)
