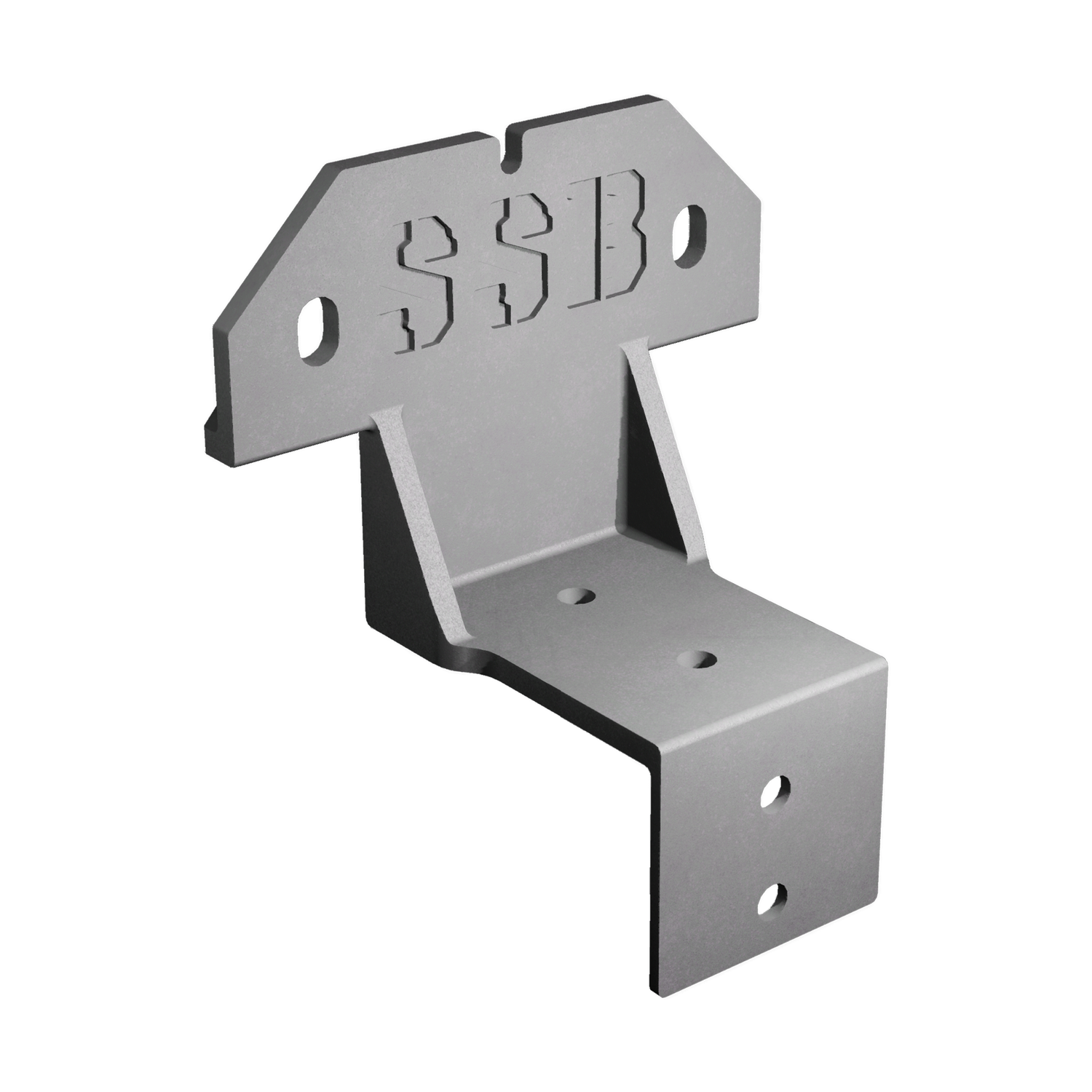

Composite steel stud brackets designed for interior shipping container framing with spray foam insulation
Close-up of durable glass-filled composite steel stud bracket

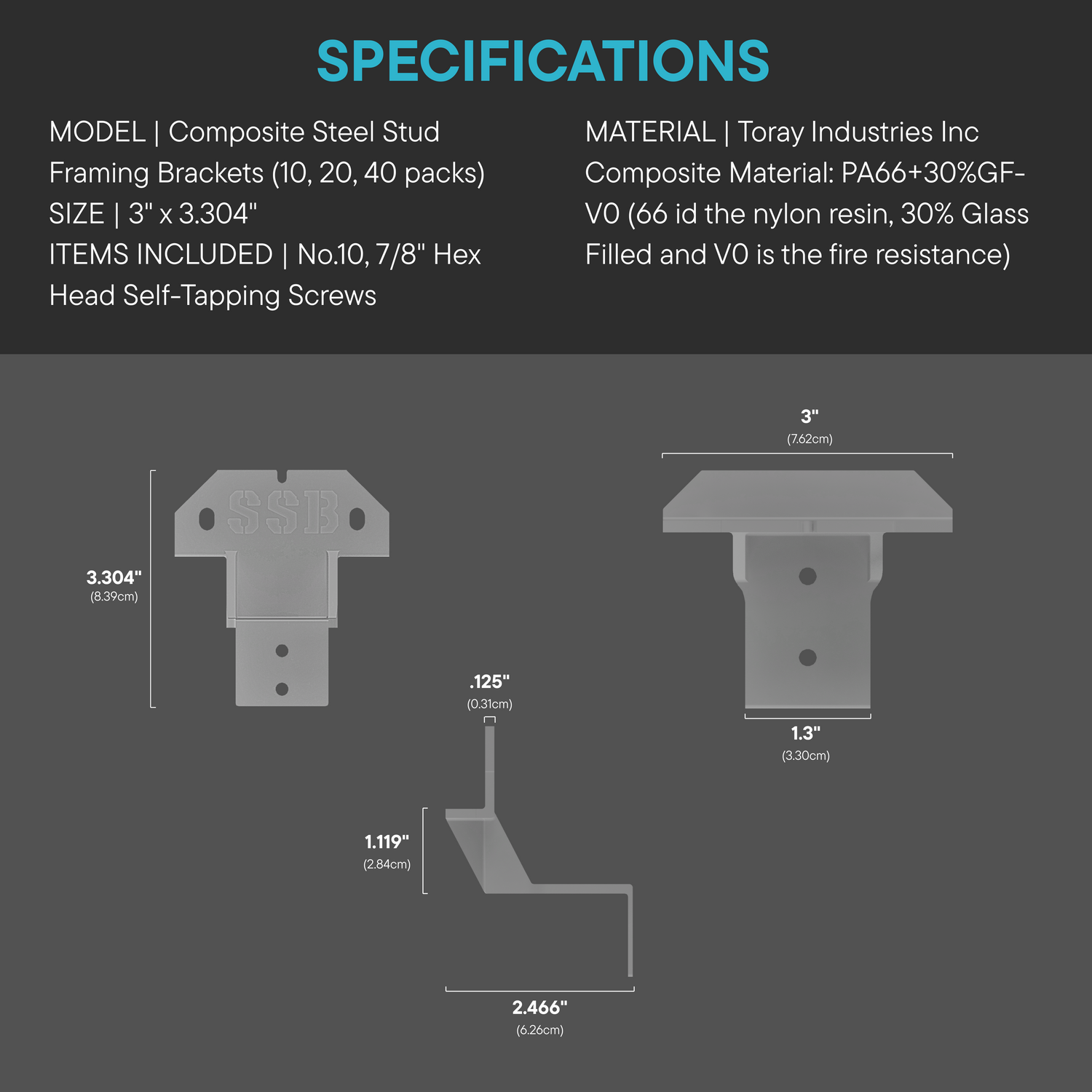

Detailed diagram illustrating the dimensions of the composite steel stud bracket, designed for precise fit with steel studs in shipping container interiors.

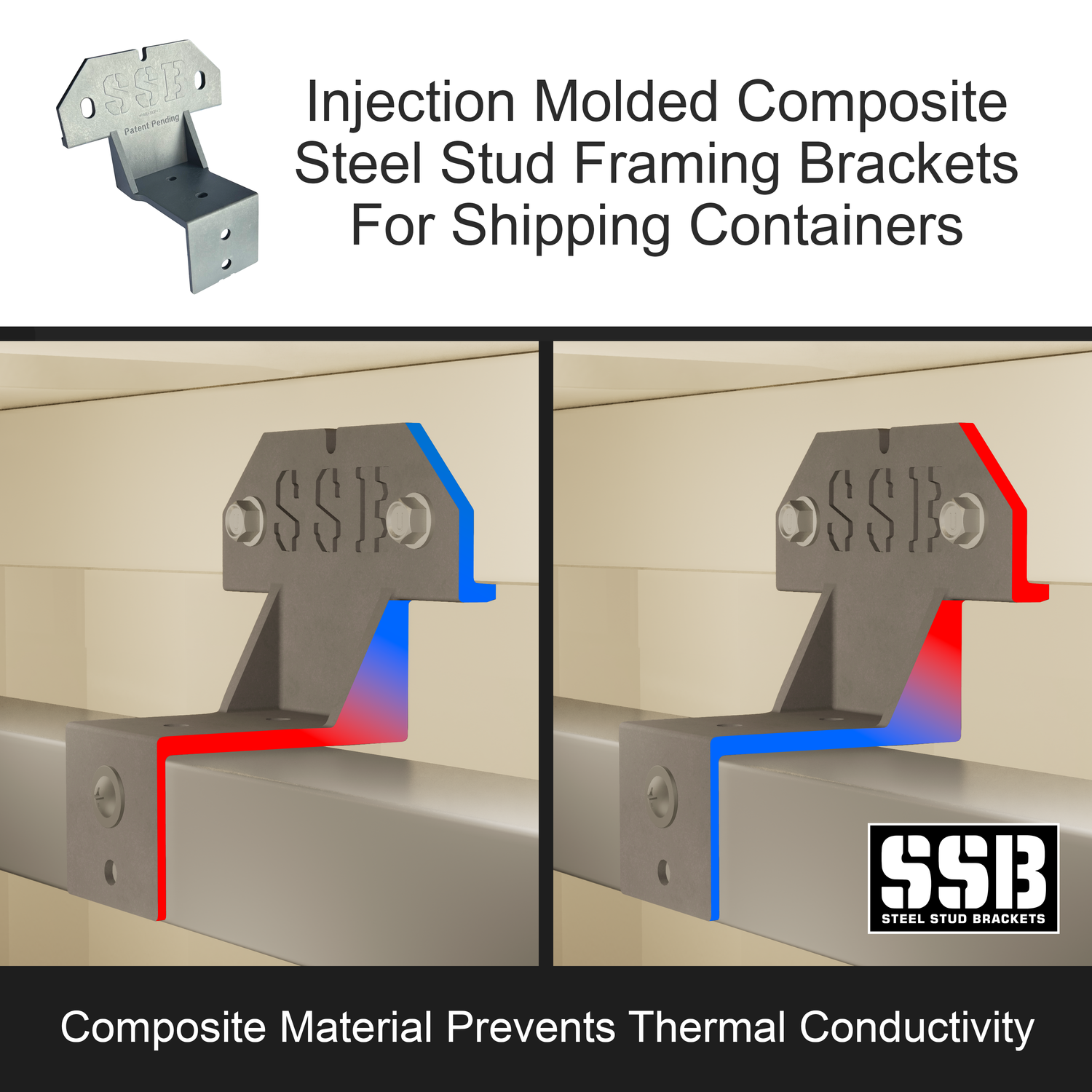

Illustration showing composite steel stud brackets installed inside a container for thermal break and insulation

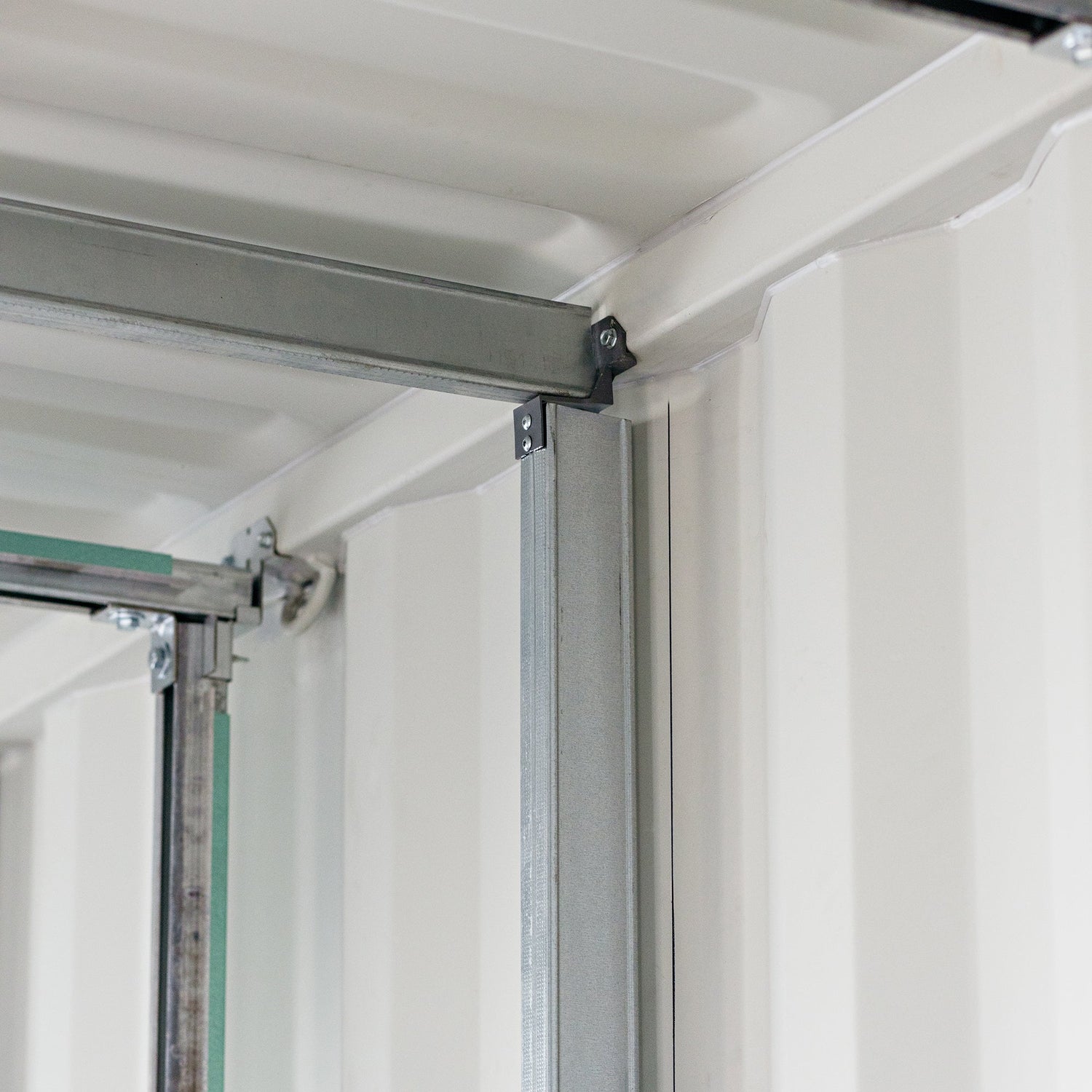

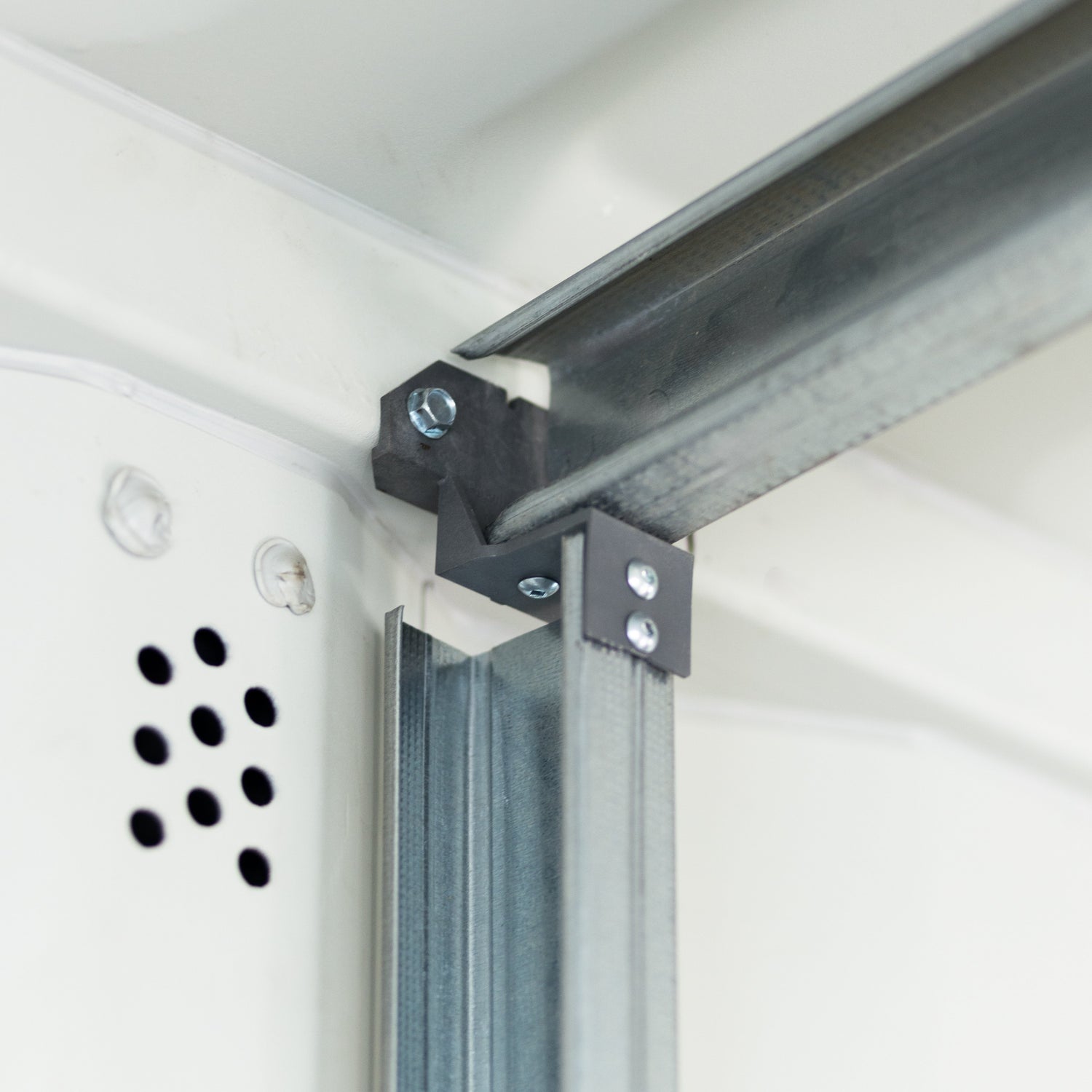

bracket installed showing how the tracks get attached when complete

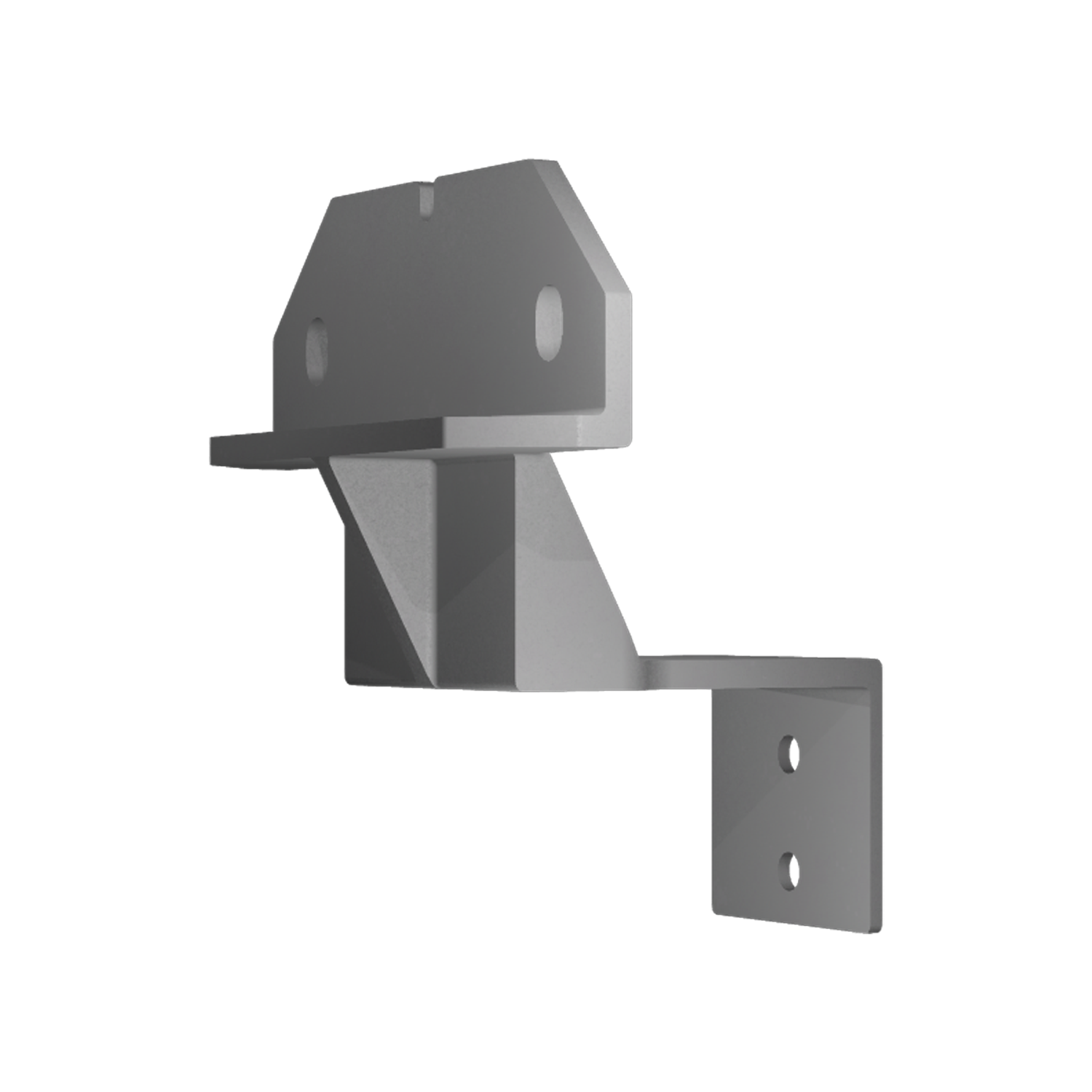

Side and back view of the composite steel stud bracket showcasing its sturdy construction, mounting holes, and thermal break design for shipping container framing.

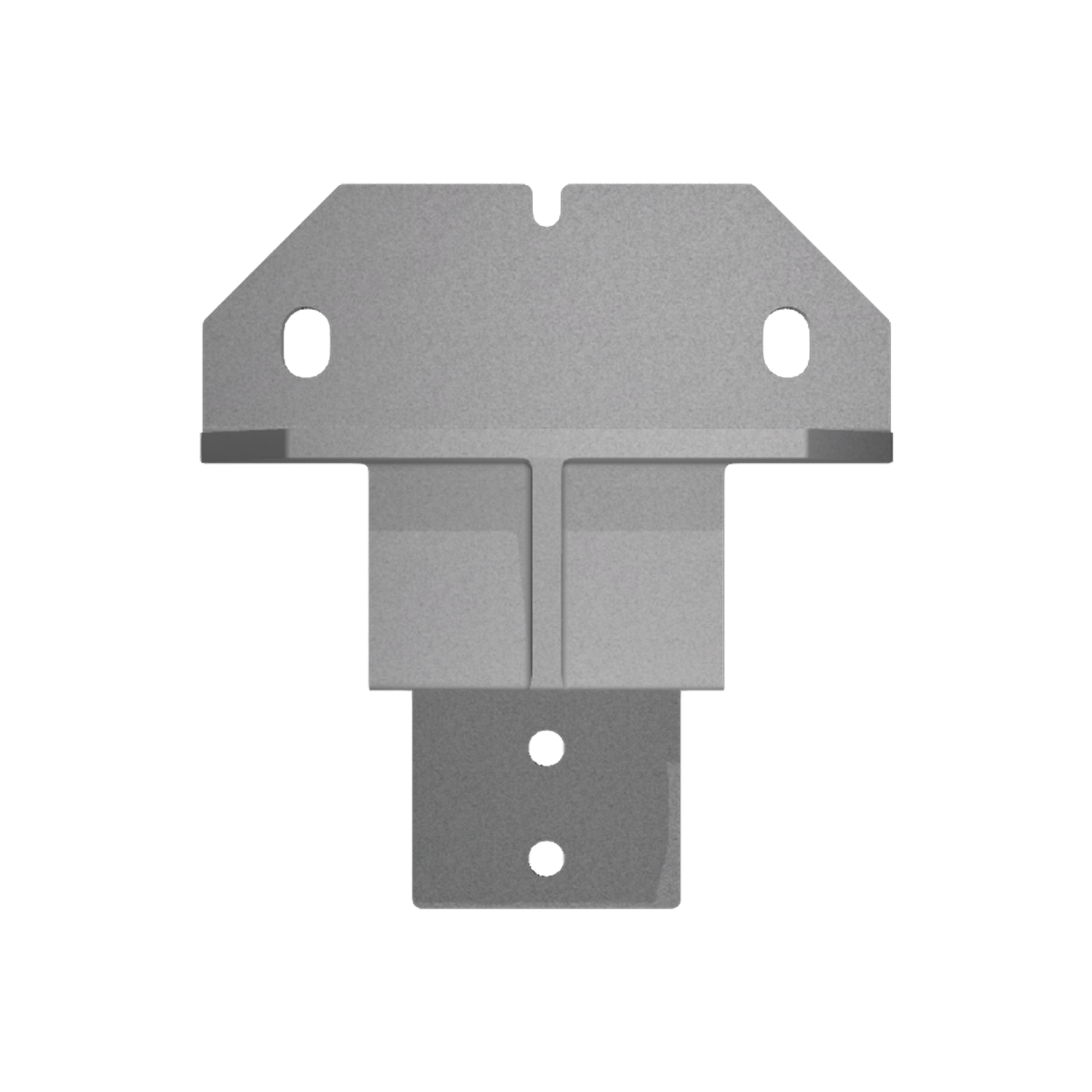

Back view of the composite steel stud bracket highlighting its smooth surface, structural reinforcement, and pre-drilled screw holes for easy installation inside shipping containers.

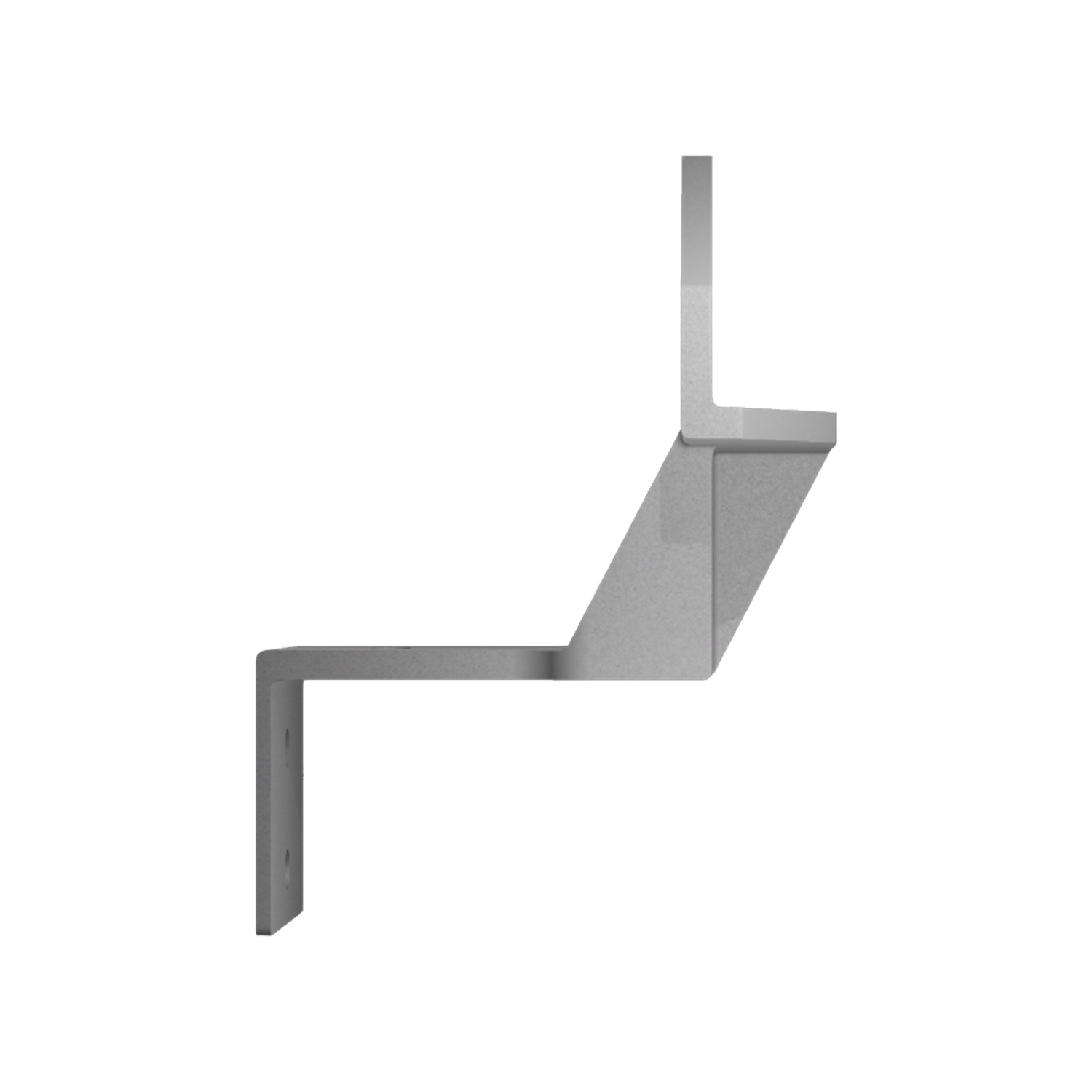

Side profile of the composite steel stud bracket showing its thickness, mounting points, and fire-resistant composite material construction designed for container interiors.
$74.95 CAD
$99.95 CAD $74.95 CAD
Style: 10 Pack
  • In stock
  • Inventory on the way

Based on the original 12 Gauge Aluminum Steel Stud Brackets from Container Modification World.

This composite version is more durable and also prevents thermal conductivity helping you keep the interior of your container cool in the summer and warm in the winter.

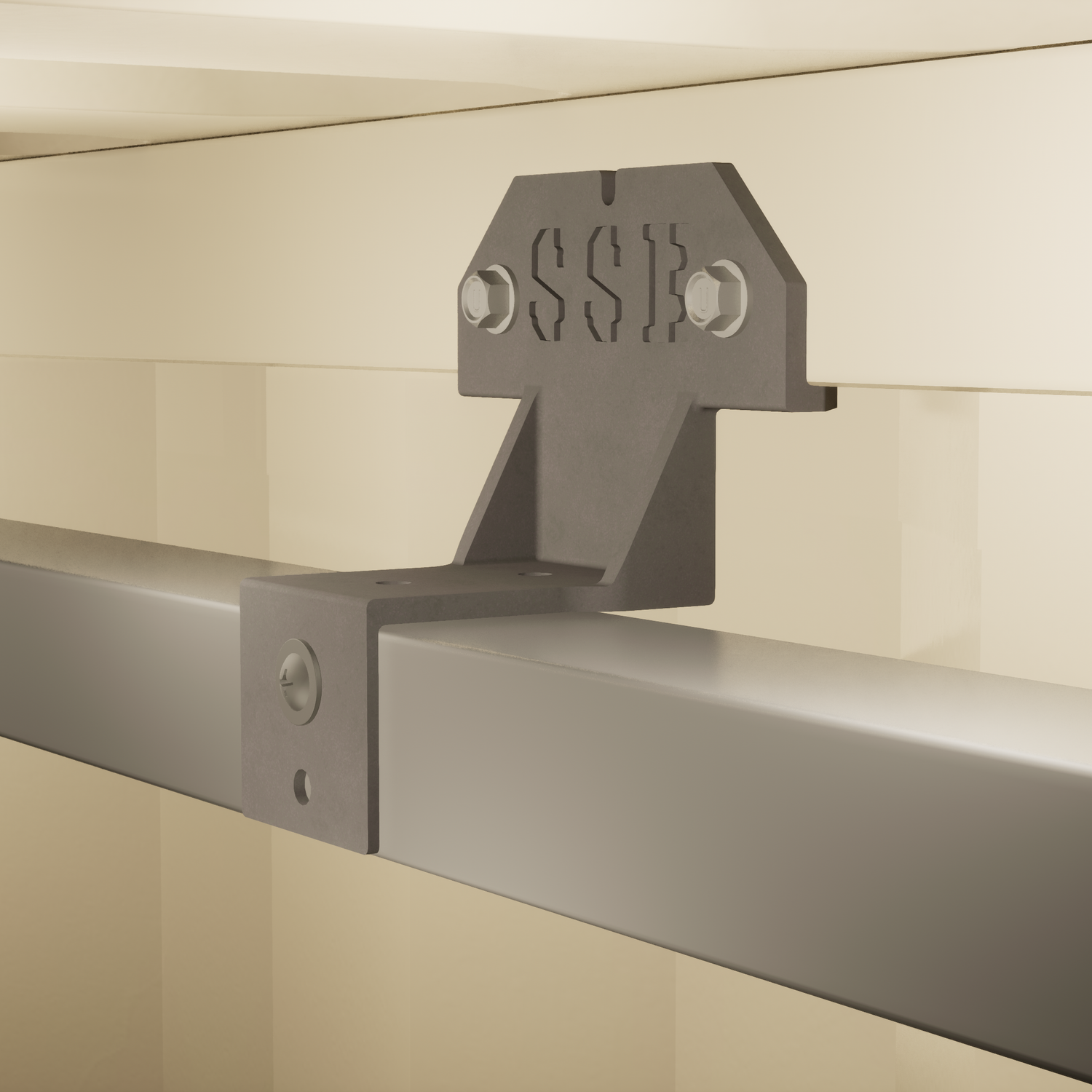

These composite SSB brackets are designed only for steel stud framing the interior of a shipping container combined with spray foam insulation.

  • Composite Material: PA66+30%GF-V0 (66 is the nylon resin, 30% Glass Filled and V0 is the fire resistance)
  • Prevents Thermal Conductivity
  • Available in 10 packs (for 10 FT Containers), 20 packs (for 20 FT Containers) or 40 packs (for 40 FT Containers)
  • Includes No.10, 7/8" Hex Head Self-Tapping Screws
  • Steel Stud Brackets fit both 2 1/2" and 1" 5/8  20 gauge steel studs
  • Patent Pending
  • Composite Material Brand: Toray Industries, Inc.



Order now and receive FREE Standard Shipping on 20 & 40 Packs! (USA & Canada)

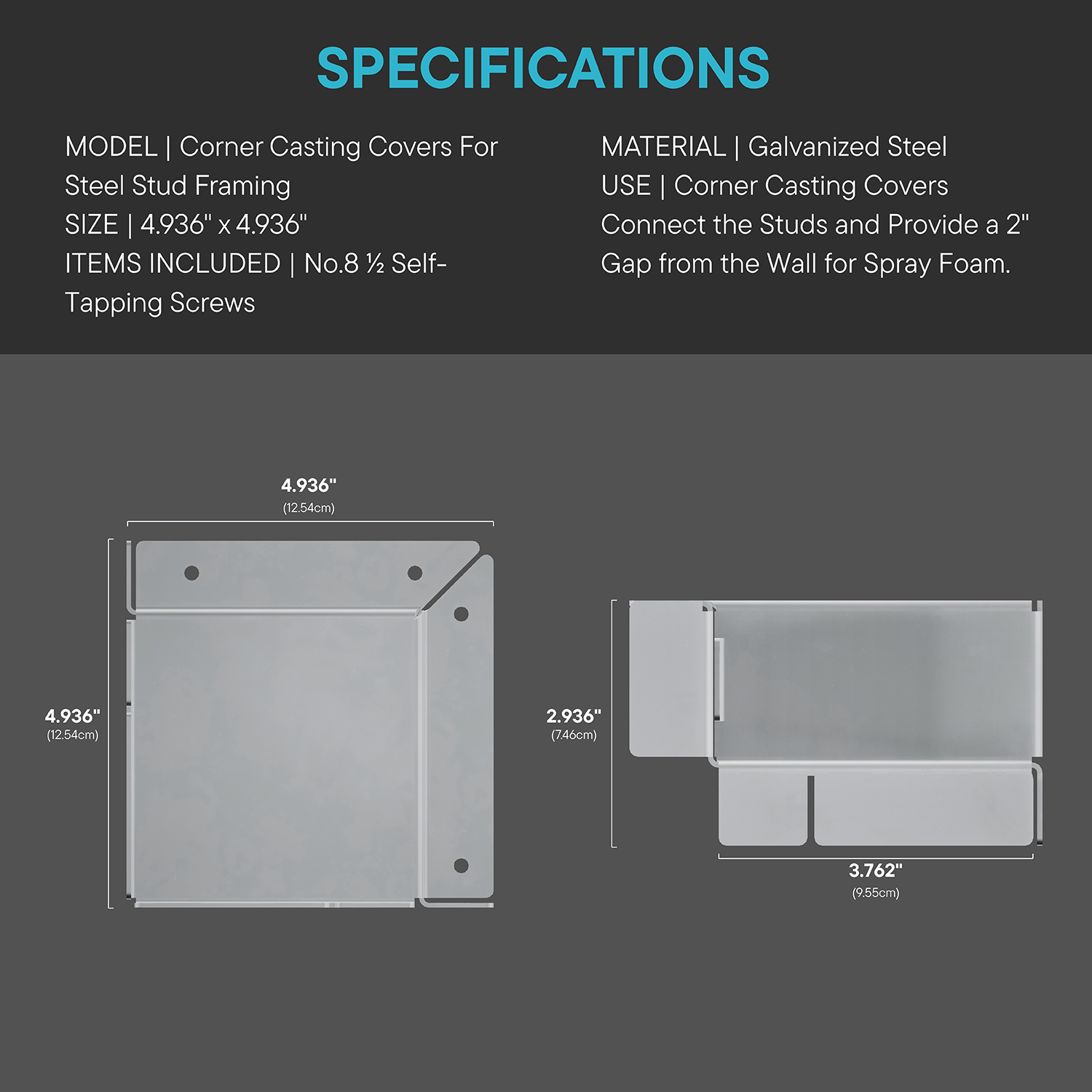

If you require Corner Casting Covers, we offer the following bundles for 10ft, 20ft, and 40 ft Containers.



Steel Stud Framing Kit for Shipping Containers/Sea Cans (12 Gauge Aluminum Brackets) - 2 Corner Casting Covers + Steel Stud Brackets + Hardware




Steel Stud Framing Kit for Shipping Containers/Sea Cans (Composite Brackets) - 2 Corner Casting Covers + Composite Steel Stud Brackets + Hardware


Installation Instructions

12 Gauge Aluminum Framing Brackets Installation Instructions (PDF)
