Container Strut Mount (CSM) Brackets for 10' shipping containers, shown in black powder-coated and galvanized finishes, with installation examples on side and end walls using every 3rd corrugation.
Detailed specifications of the CSM (Container Strut Mount) Bracket, including measurements and side views of the 10-gauge, laser-cut galvanized steel bracket designed for mounting strut channels in shipping containers.

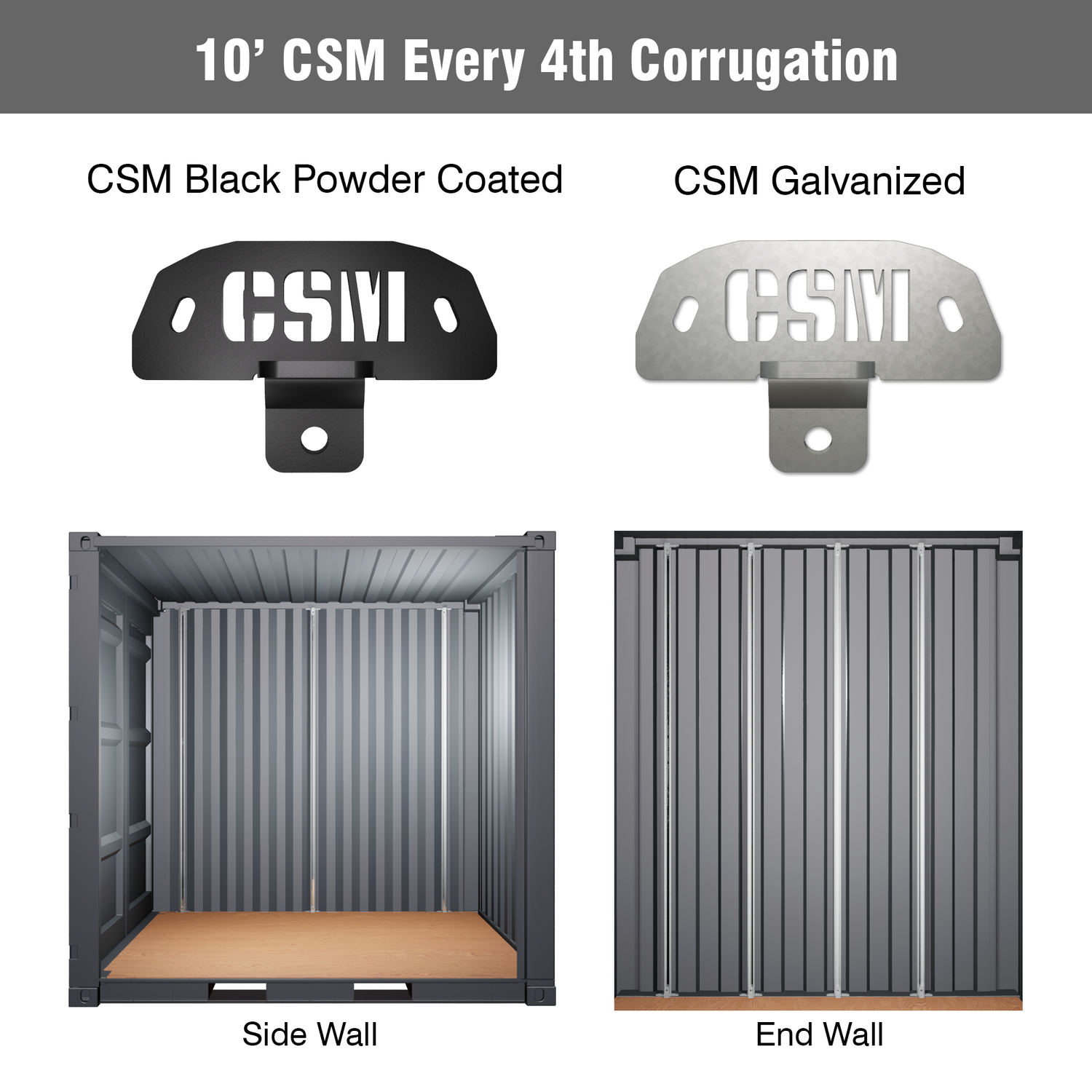

CSM Bracket installation layout for 10' shipping containers using every 4th corrugation, showing black powder coated and galvanized options, with visual examples for sidewall and end wall mounting.

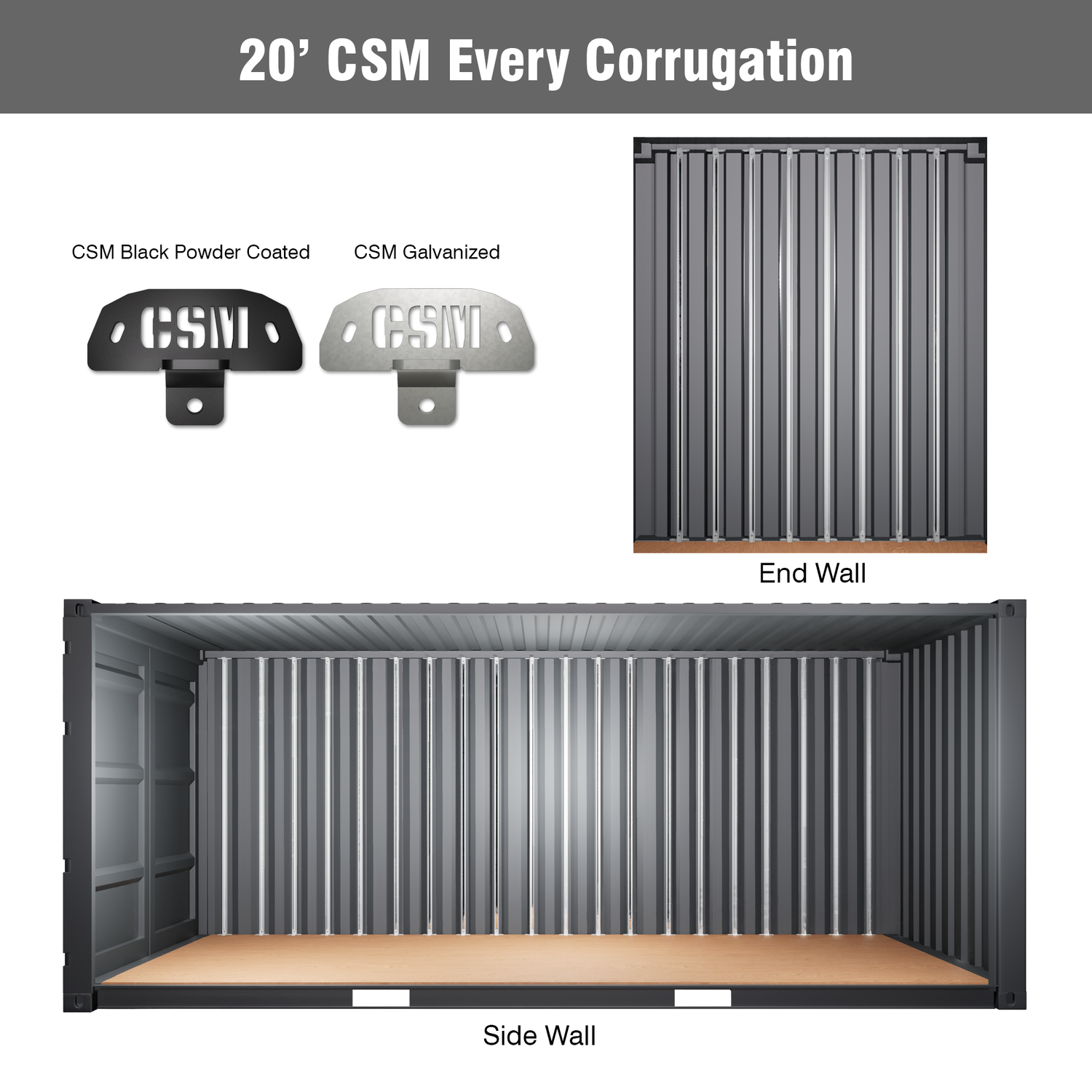

CSM Bracket installation for 20' shipping containers using every corrugation, featuring both black powder coated and galvanized brackets, with sidewall and end wall mounting views

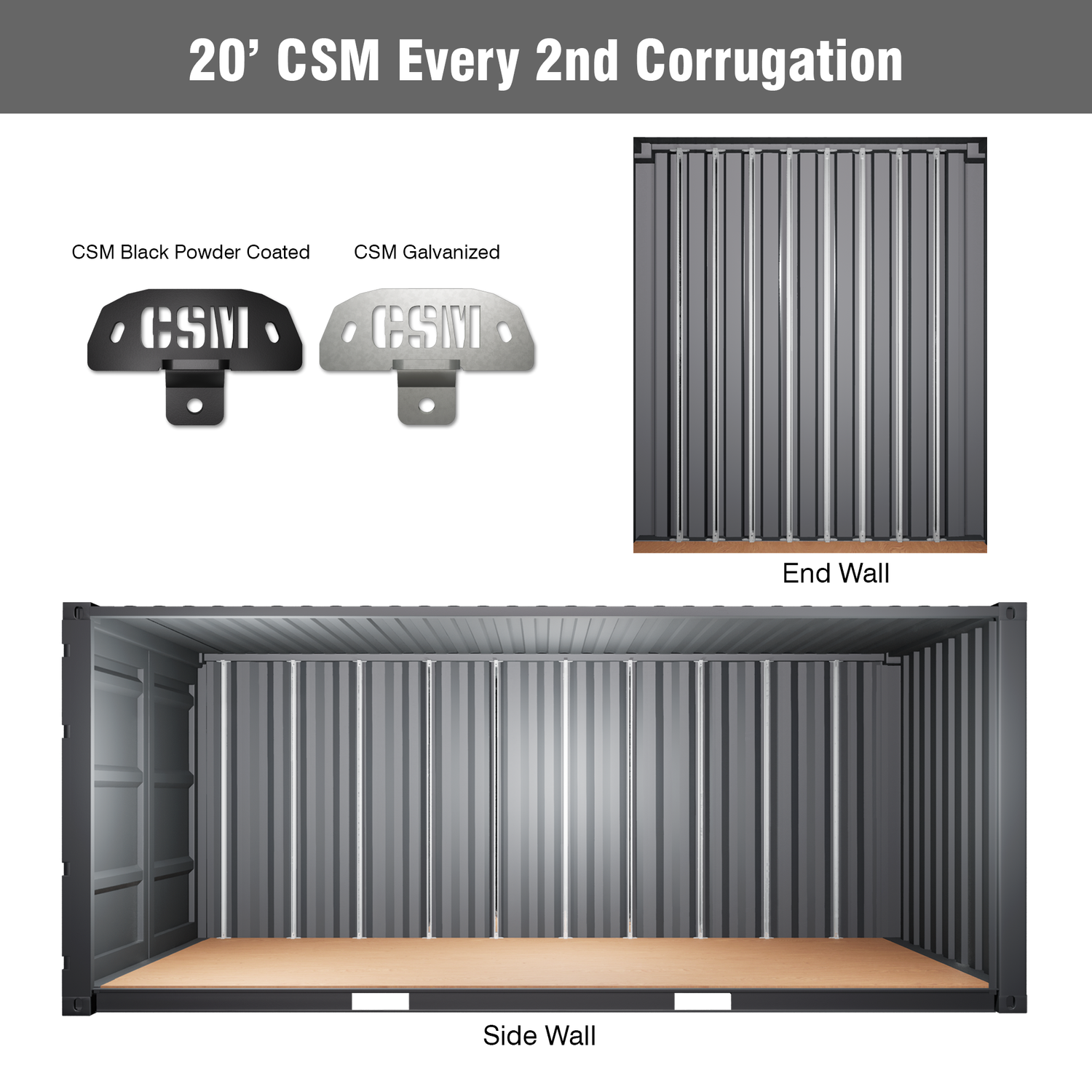

CSM Bracket installation for 20' shipping containers using every 2nd corrugation, with sidewall and end wall views, and black powder coated and galvanized bracket options displayed.
CSM Bracket setup for 20' shipping containers using every 3rd corrugation, showing end wall and side wall mounting configurations with black powder coated and galvanized bracket options.
CSM Bracket configuration for 20' shipping containers with installation on every 4th corrugation, featuring black powder coated and galvanized bracket options with end wall and side wall mounting views.
CSM Bracket configuration for 40' shipping containers with installation on every corrugation, featuring both black powder coated and galvanized bracket options with end wall and side wall mounting views
40-foot CSM Bracket installation shown on every second corrugation with black powder coated and galvanized bracket options, featuring end wall and full side wall mounting views inside a shipping container.

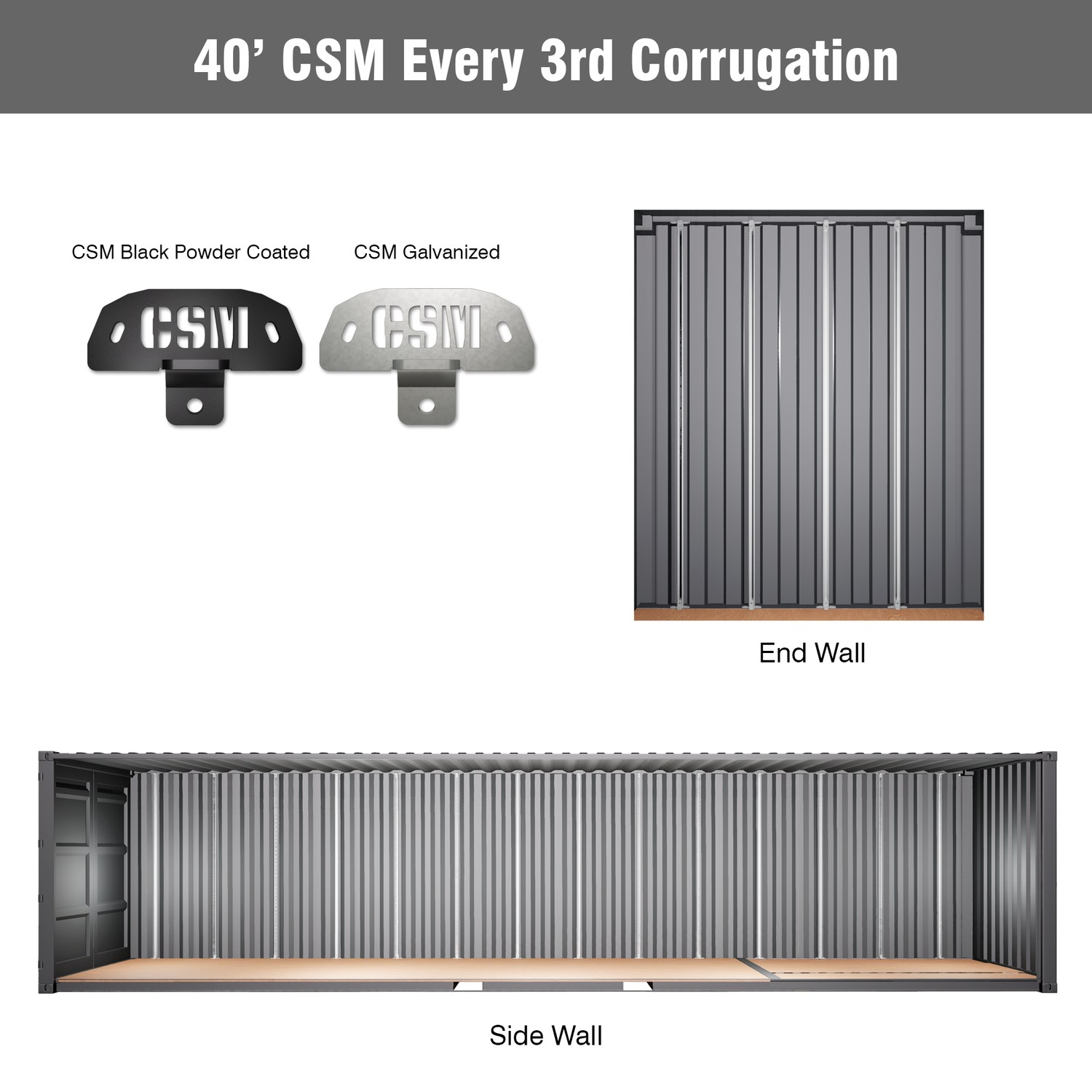

40-foot shipping container with CSM Brackets installed on every third corrugation. Shows both black powder coated and galvanized bracket options, with detailed views of the end wall and full side wall mounting configurations
40-foot shipping container with CSM Brackets installed on every fourth corrugation. Image includes both black powder coated and galvanized CSM bracket types. Displays mounting configurations on the container’s end wall and full side wall

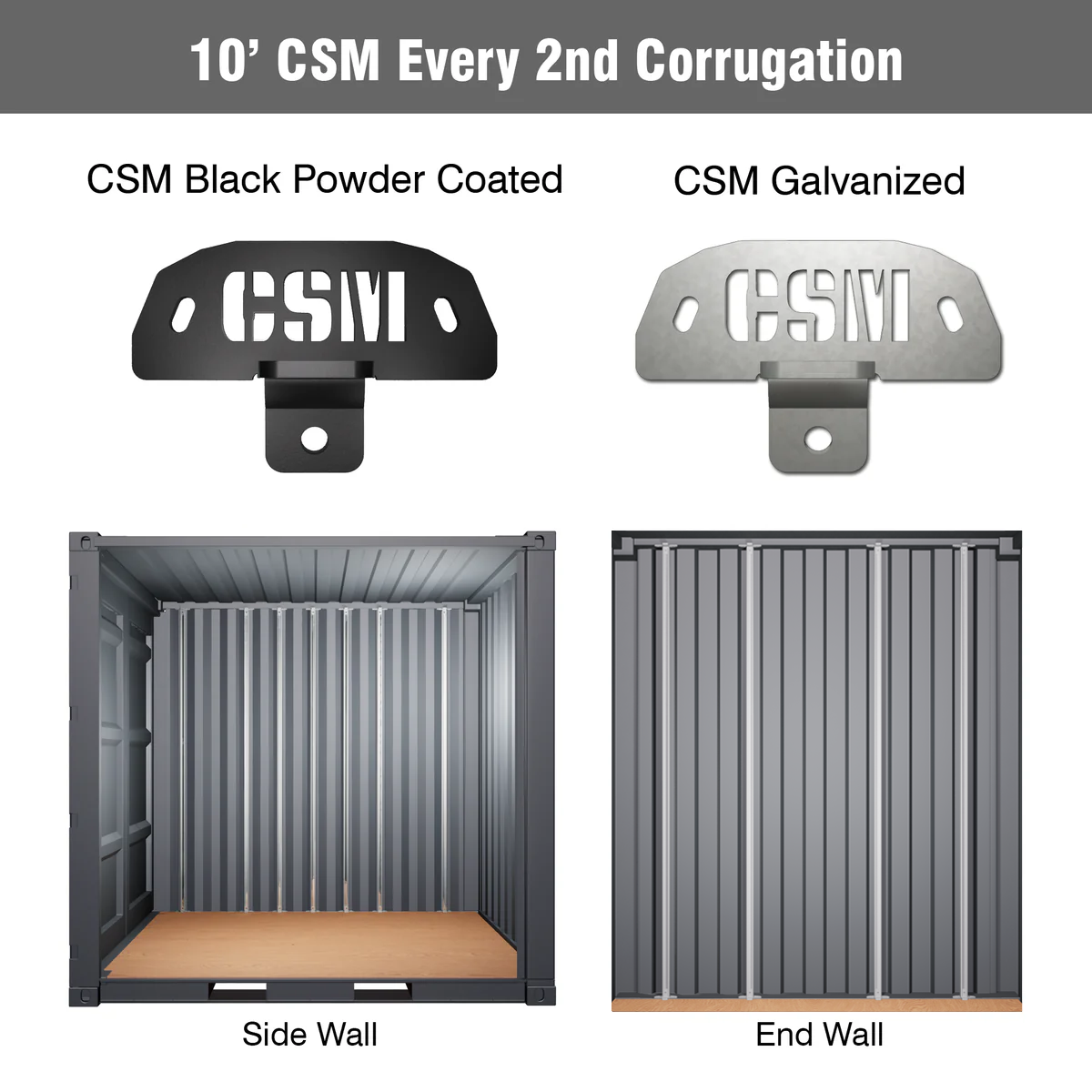

10-foot shipping container showing CSM Brackets installed on every second corrugation. The image displays both black powder coated and galvanized CSM bracket options, with visual installation examples on the container’s side wall and end wall

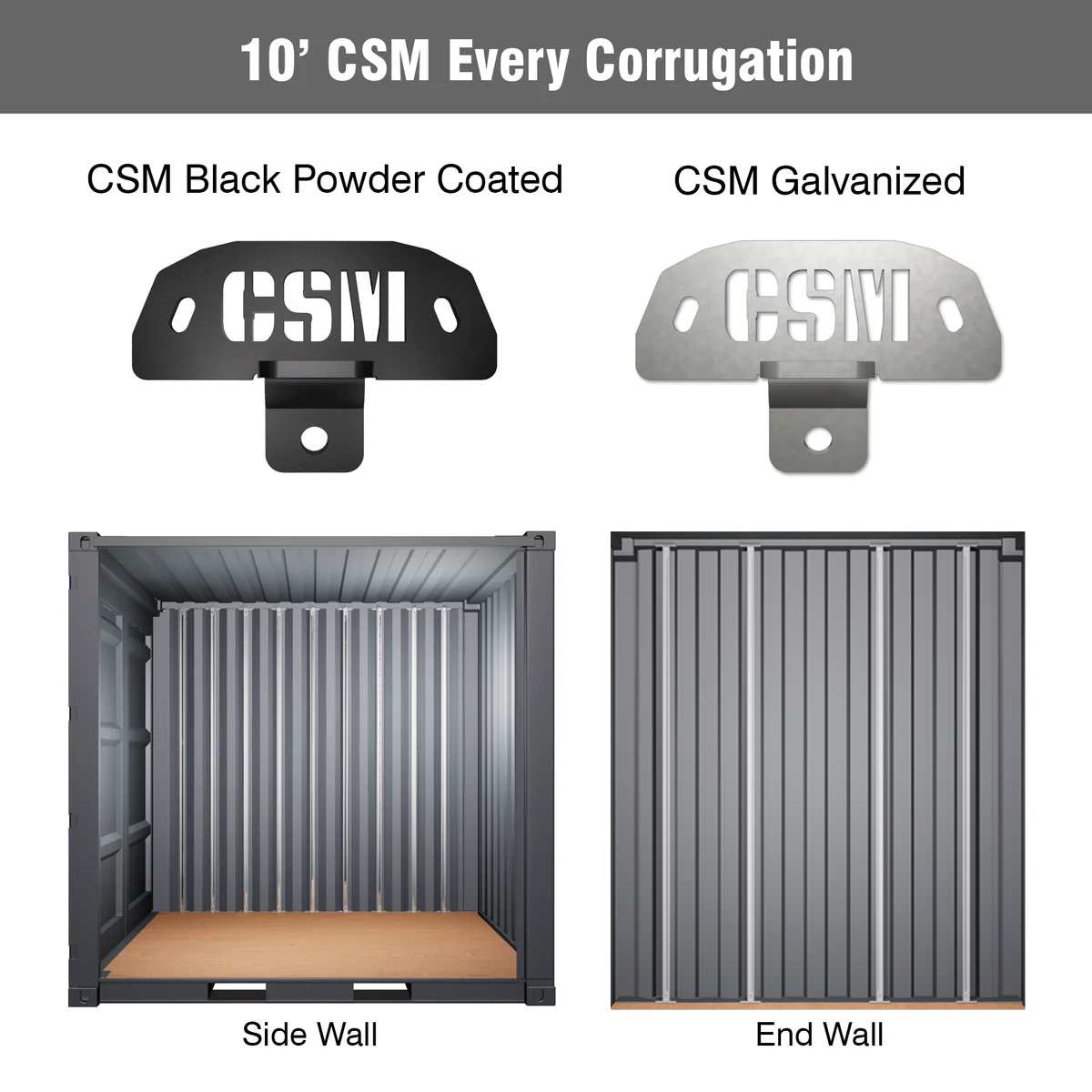

0-foot shipping container with CSM brackets installed on every corrugation. The image shows both black powder coated and galvanized CSM bracket types, with application examples on the container’s side wall and end wall.
$420.00 CAD
$420.00 CAD
Size: 10
Spacing: CSM (Galvanized Steel) / Every 3rd Corrugation
  • In stock
  • Inventory on the way

Container Strut Mount (CSM) Bracket Packs

Strut Mount Brackets allow for hassle-free mounting of strut channels inside and outside any shipping container using ISO 9910 corrugations.

  • Laser-cut galvanized steel
  • Provides strut framing without welding
  • Solves the safety hazard issue of screws poking through the exterior wall
  • CSM Strut Mount Bracket support heavy load than MSS brackets
  • CSM Bracket Packs available for 10', 20' and 40' shipping containers
  • 10 Gauge Steel
  • Galvanized Finish
  • Designed to fit both sidewall and end wall corrugations
  • Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Ideal for installing shelving and electrical panels in shipping containers

Includes No.14, 3/4" Hex Head Thread Cutting Screws.



Installation Instructions
Instructions Coming Soon
