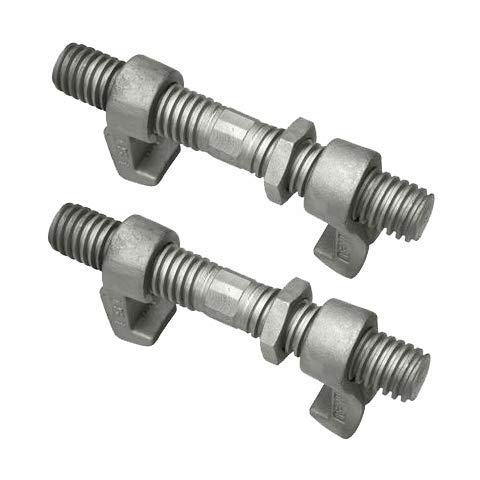

Pair of heavy-duty container bridge fittings made of hot-dip galvanized drop-forged steel, designed to securely connect ISO shipping containers side to side or end to end via corner castings. Rated for a 10-ton load capacity.
Bridge fitting shown securing two shipping container corner castings together side by side. Heavy-duty galvanized steel connection for flush horizontal container coupling.

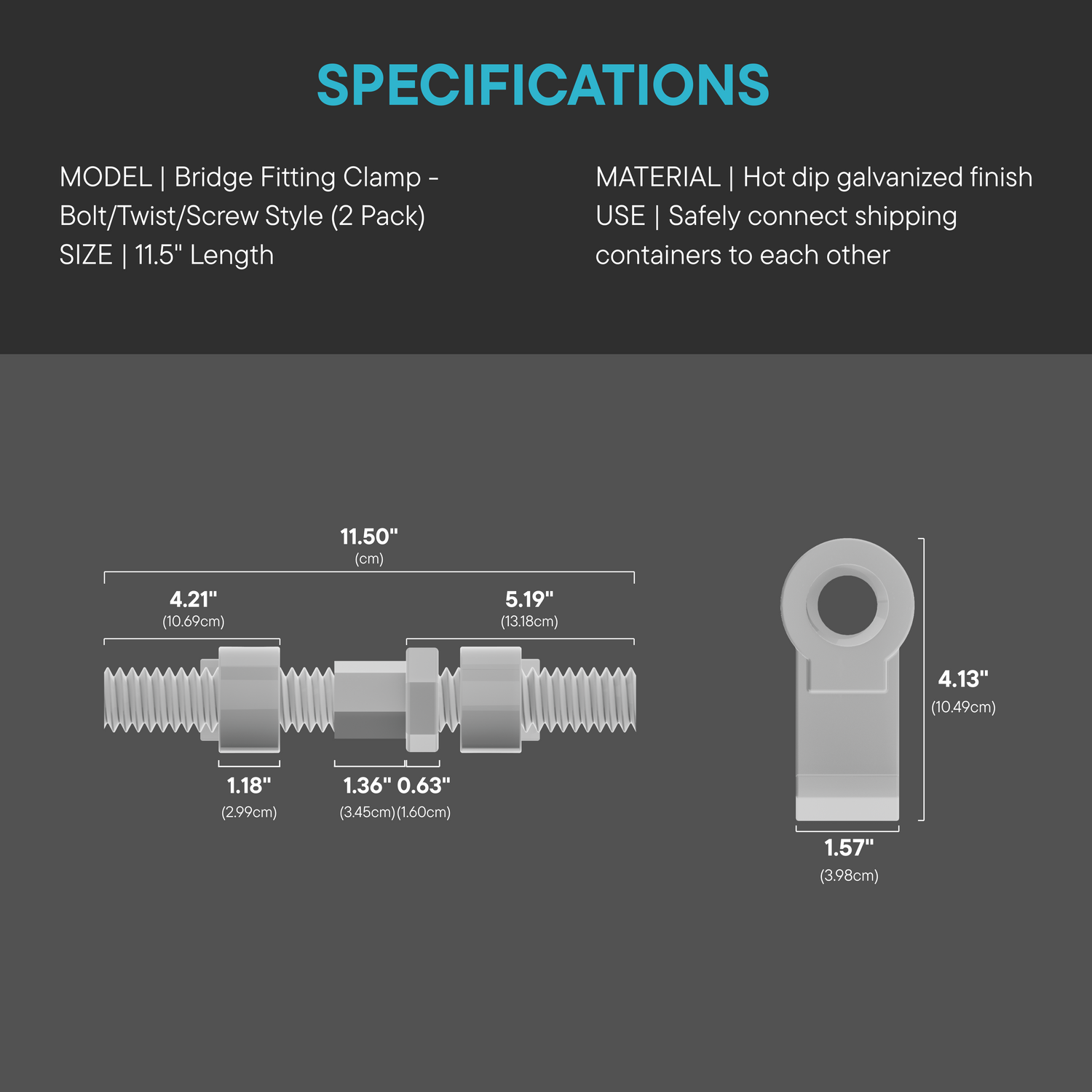

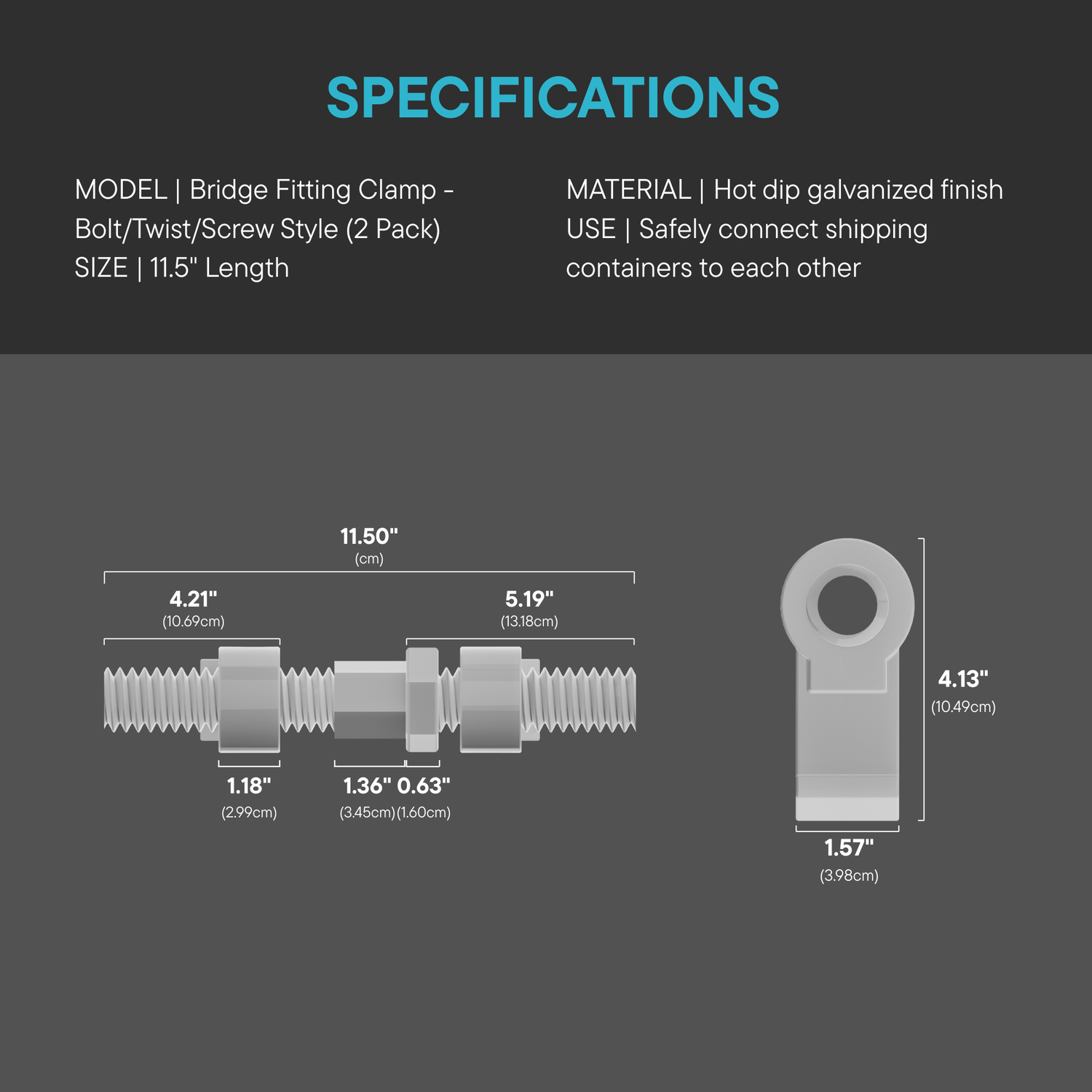

Bridge fitting clamp specifications diagram showing dimensions and design details for bolt/twist/screw style container connector with hot-dip galvanized finish.

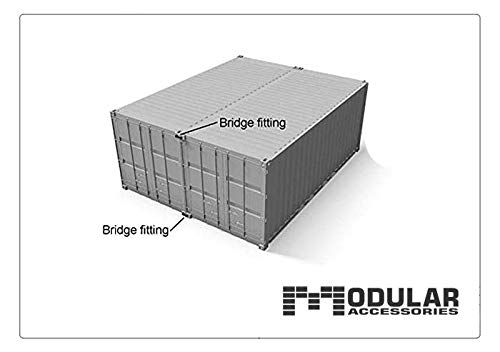

Diagram showing two ISO shipping containers connected side-by-side using bridge fittings at the corners, illustrating proper horizontal container coupling.
$199.95 CAD
$199.95 CAD
  • In stock
  • Inventory on the way

Safely connect shipping containers to each other. Designed to safely and securely connect empty or loaded shipping containers horizontally and are made to fit into container corner castings. Each container requires 4 bridge fittings for safe horizontal flush connections.

► Used to couple two ISO shipping containers together side to side or end to end.
► Drop forged steel hooks
► Hot dip galvanized finish
► Made to fit into container corner castings
► Capacity safe working load: 10 tons
► Compatible with all ISO type containers
► Designed to couple 2 ISO Containers together side to side or end to end.
► Normally use one bridge fitting on each corner (4 total)
► Rated Capacity (10 tons): 22,046 lbs/10,000 kgs
► Tare Weight: 10.1 lbs/4.6 kg
► 11.5" Length



Installation Instructions

Instructions Coming Soon
