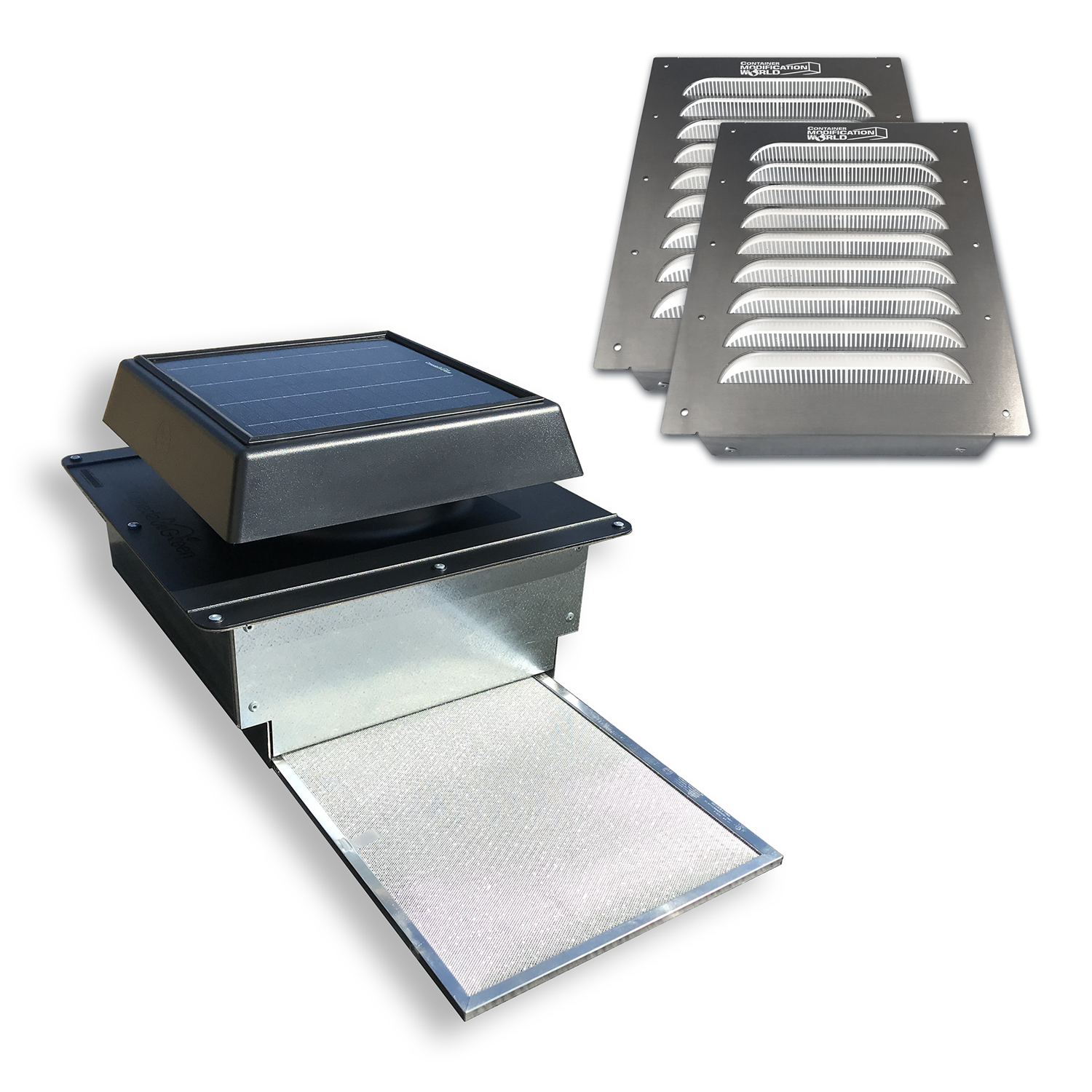

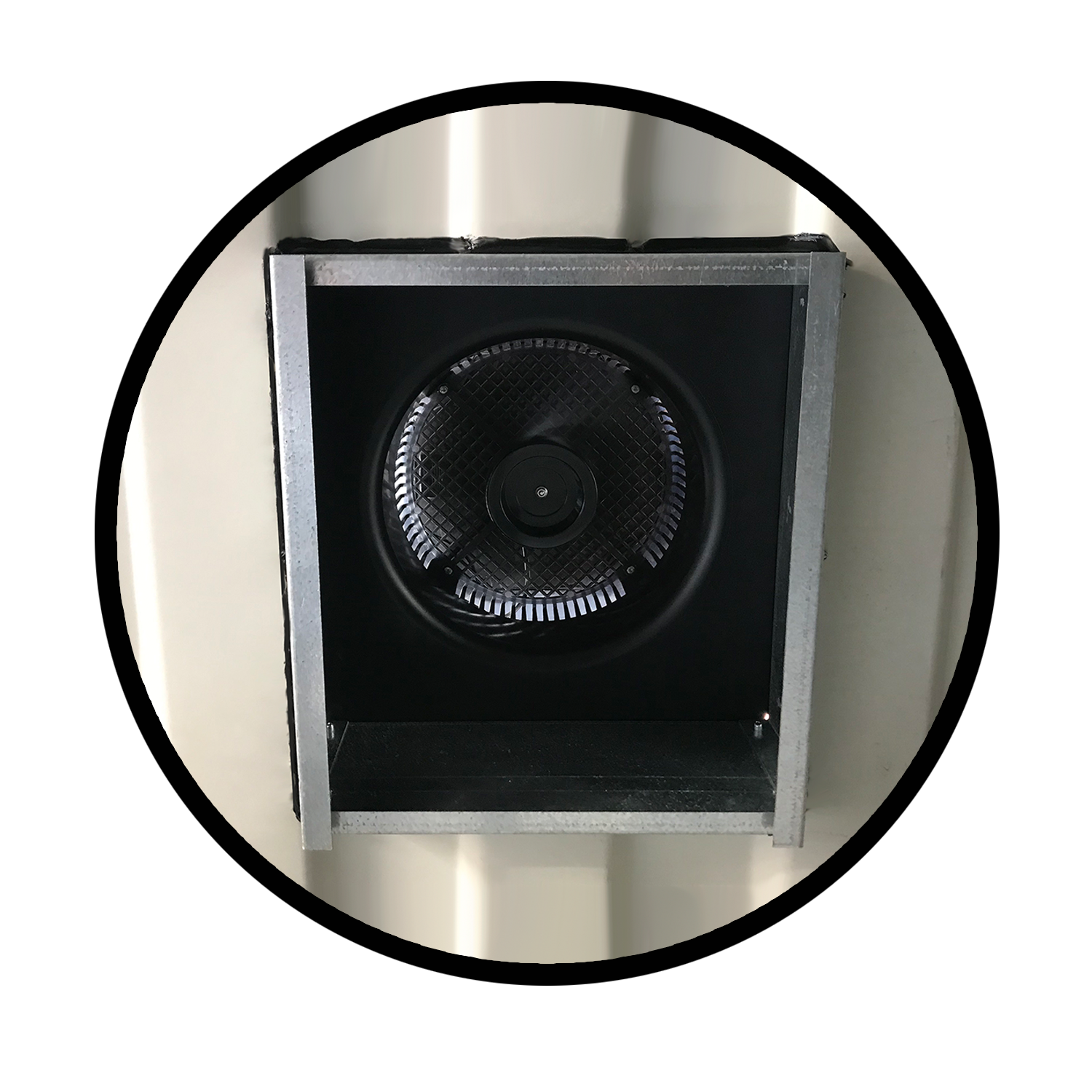

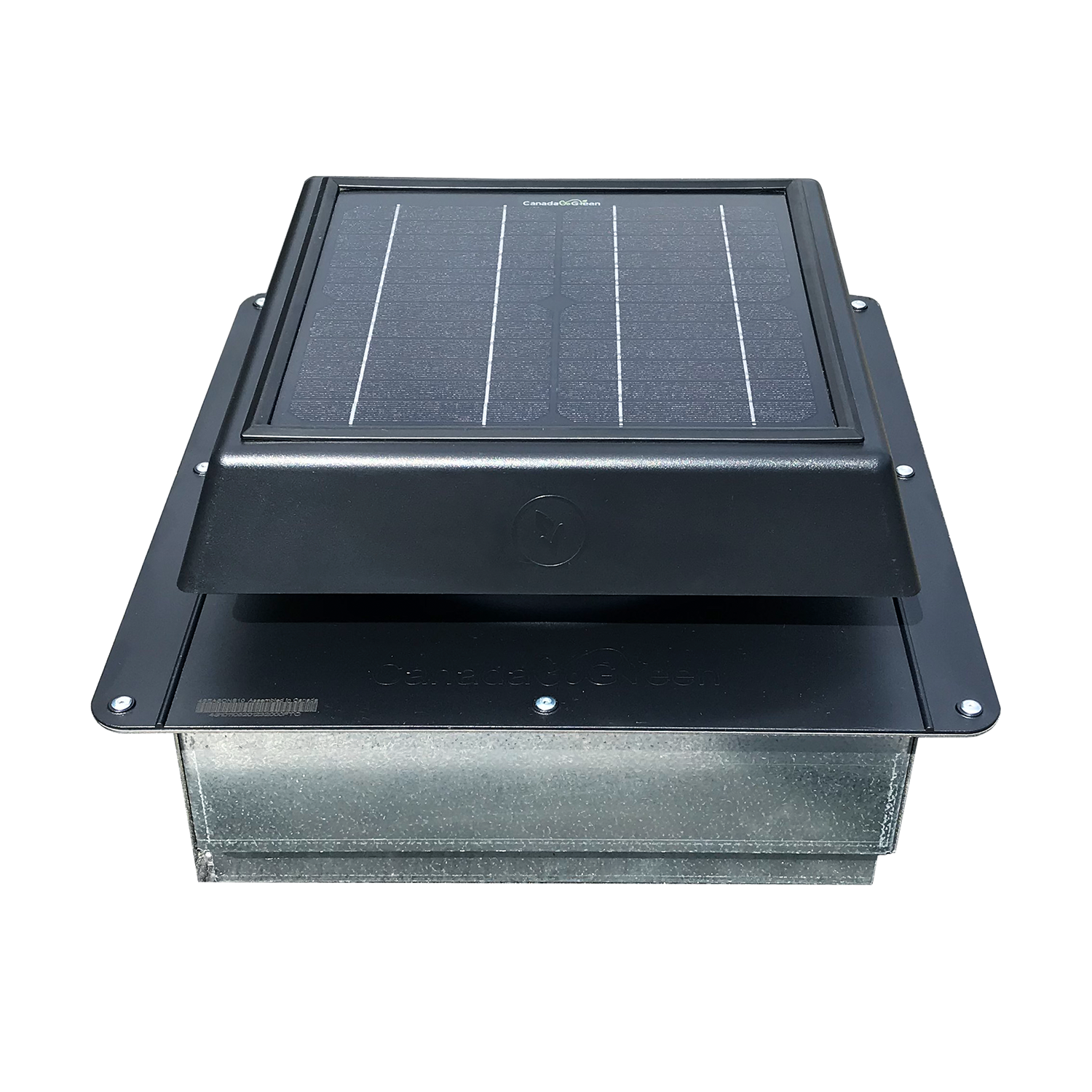

BIG AIR® 400 CFM Solar Powered Roof Vent/Fan
Container-specific parts and accessories for shipping container repairs, upgrades, and modifications.
- Built for container repairs, upgrades, and modification work.
- Confirm fitment, install location, and requirements before ordering.
- Ask TCG for help matching the part to your container or build.
Container partConfirm fitmentShips to customer
Selected price
$349.95
In stock
Checkout and fulfillment are handled by Container Modification World. TCG is an authorized dealer and can help confirm fitment before you order.
Sold by The Container Guy. Fulfilled by Container Modification World.
TCG authorized dealerContainer-specific parts
CMW fulfillmentParts orders fulfilled by CMW
Built for containersFitment and use-case guidance
Ships to customerOrder online or ask for help
What it does
Bring power through the wall cleanly.
PortPlugs create a cleaner exterior power pass-through than pinching extension cords through doors, vents, or gaskets.
Weather-cap protection
The snap-fit cap helps protect the connection point from snow, ice, freezing rain, and jobsite weather.
Simple wall install
Designed around a 2 inch hole, four screws, and an integrated cord for a cleaner OEM-style result.
Specs and fitment
Specs and fitment
Category
Ventilation
Brand
Container Modification World
Variant
BIG AIR® 400 CFM Solar Roof Exhaust Fan - No Intake Vents - FAN ONLY
SKU
CMW-1K-230-0419
Install notes
Power install notes
- Confirm 120V AC use, amp rating, plug style, and load before ordering.
- Drill the correct 2 inch opening, fasten squarely, and seal the exterior face to protect weather-tightness.
- Use a qualified trade when required by code, site rules, or the equipment being powered.
- 400 CFM provides a complete air exchange every 3 minutes in a 20 ft container and every 6 minutes in a 40 ft container under ideal conditions.
- Anti-UV/Freeze Construction

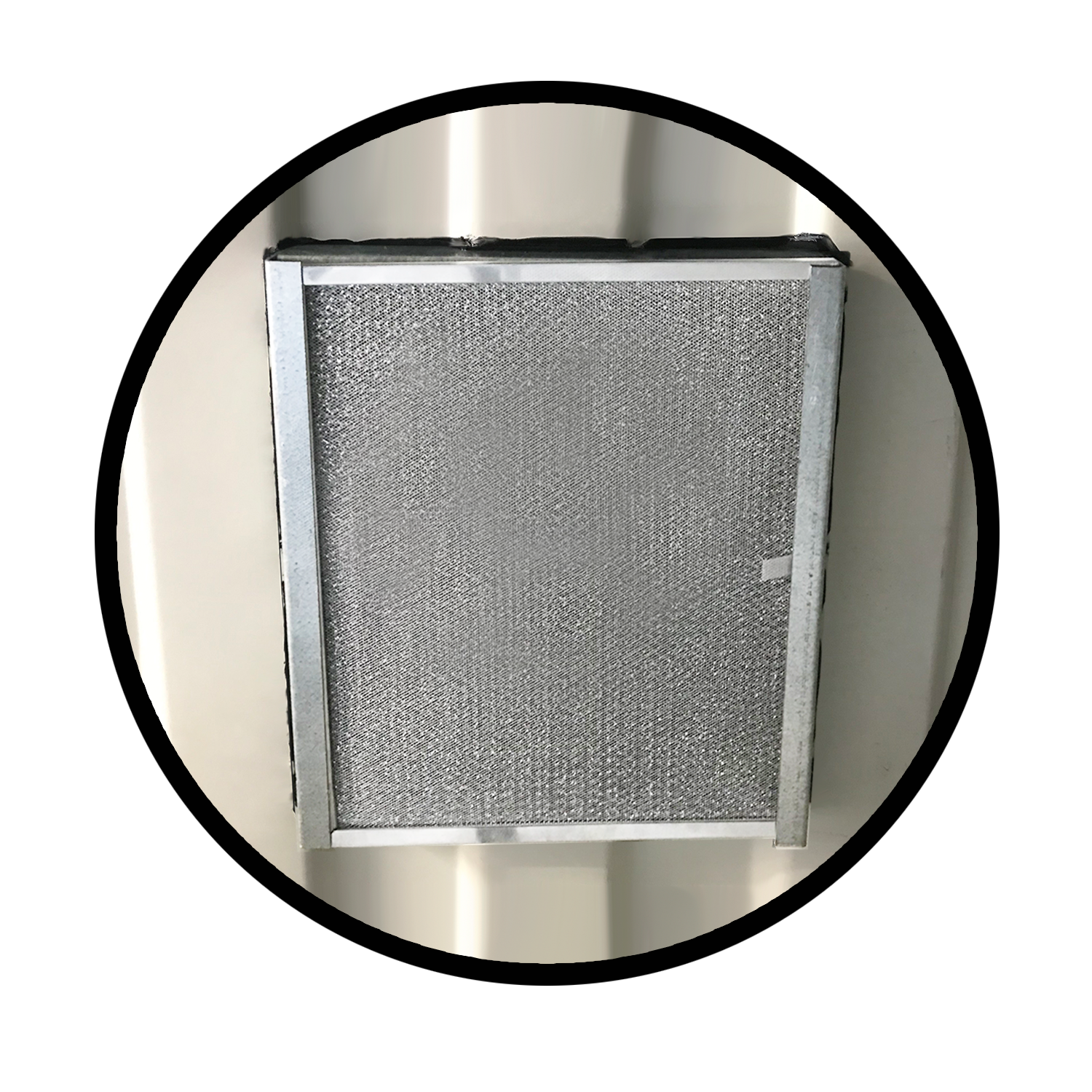

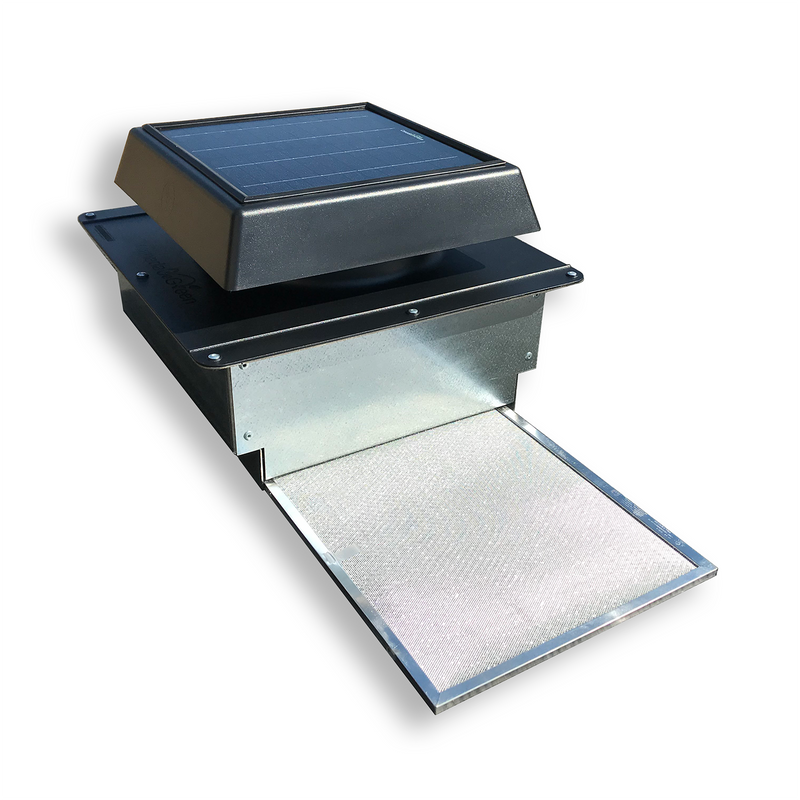

- Removable aluminum bug filter

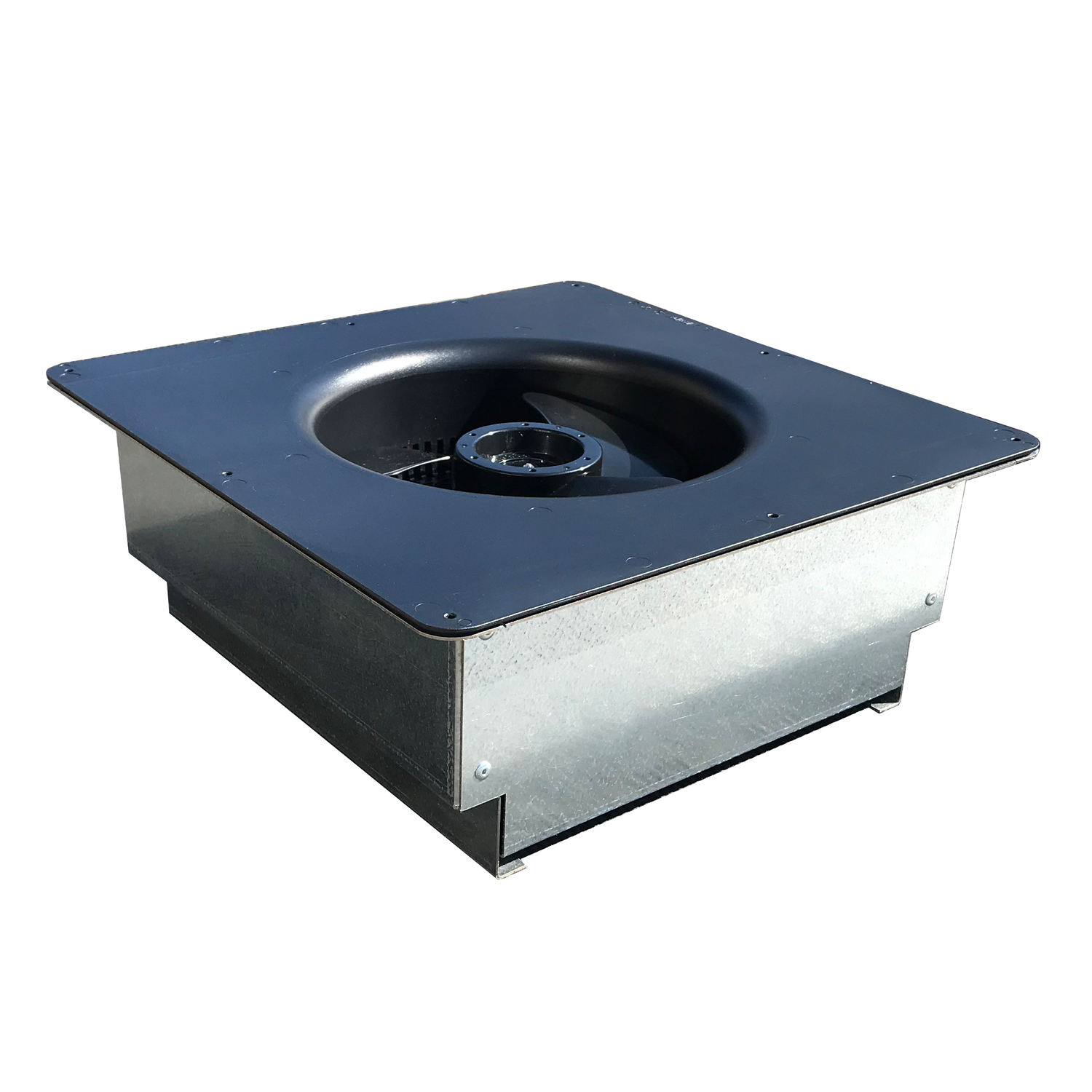

- Unique metal framing kit designed for shipping containers
- Quiet operation, fully assembled – No On or Off switch!
In most jurisdictions, low-voltage (12V) fans can be used in hazardous materials (HAZMAT) settings without the need for explosion-proof electrical.

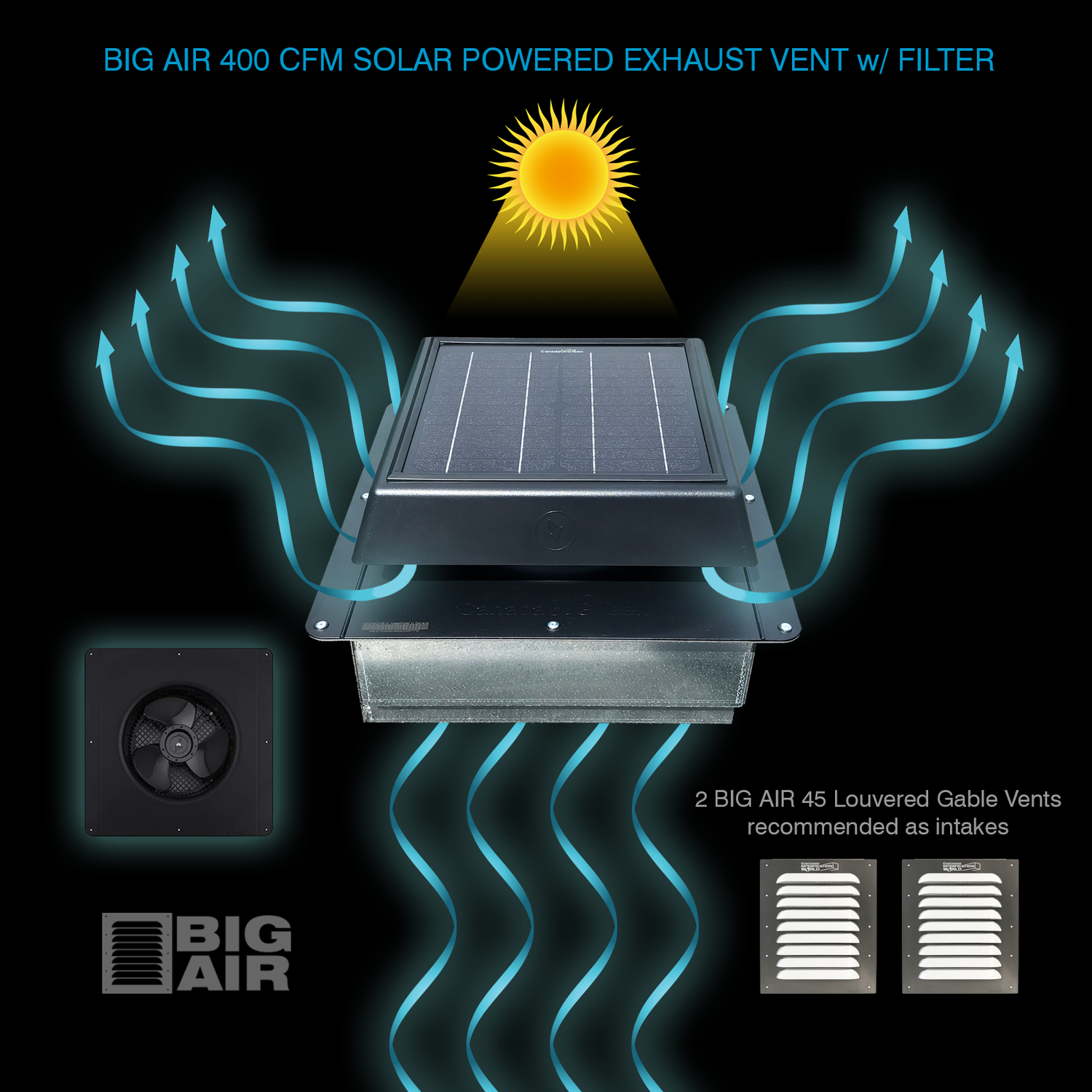

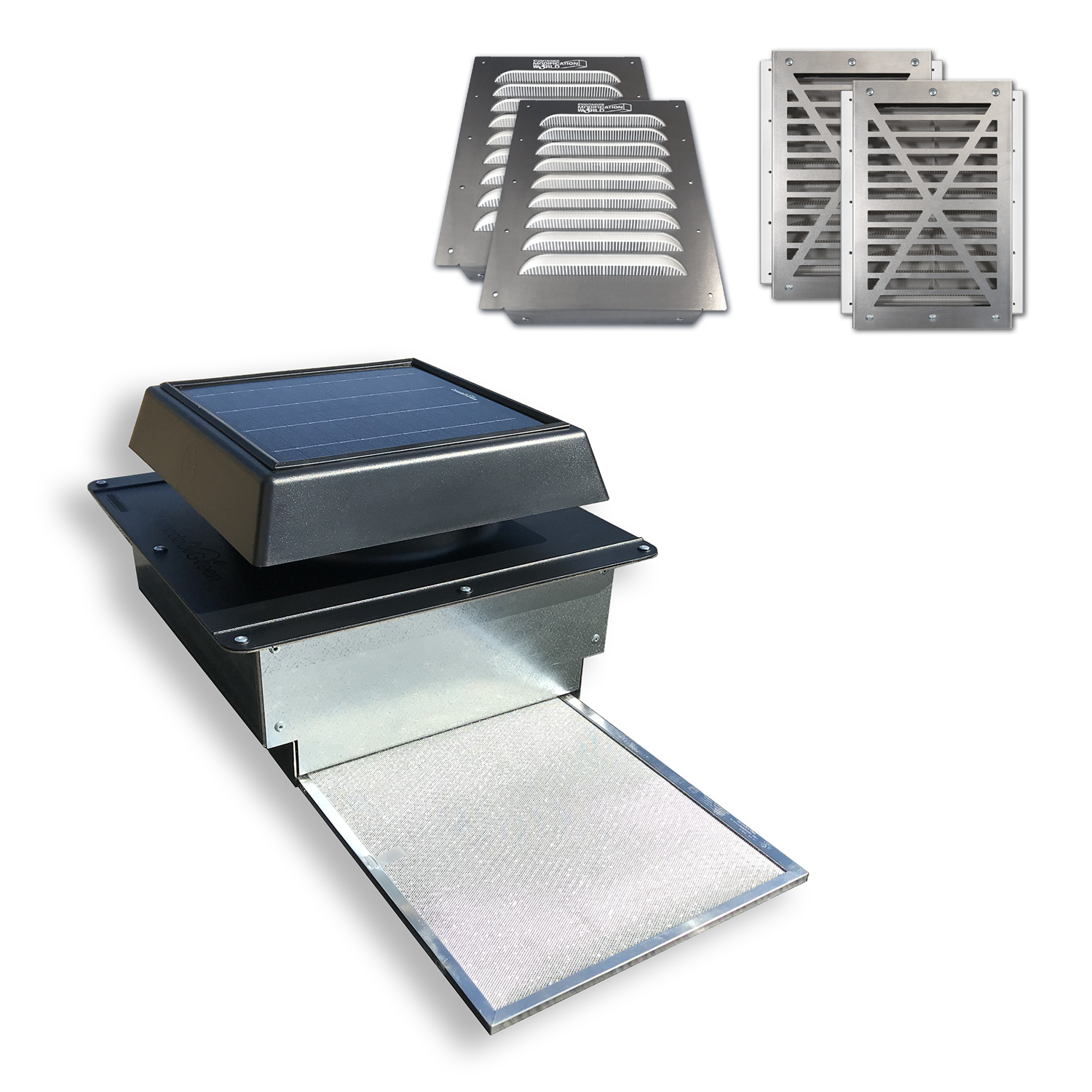

Disclaimer: To be used in conjunction with BIG AIR® 45 vents for HAZMAT storage so that there is adequate passive ventilation at times when the solar-powered fan is not in operation.
Engineered to be installed anywhere on shipping containers, van trailers & all wood construction building rooftops.
No on or off switch!
- ABS-PC anti-UV/Freeze construction

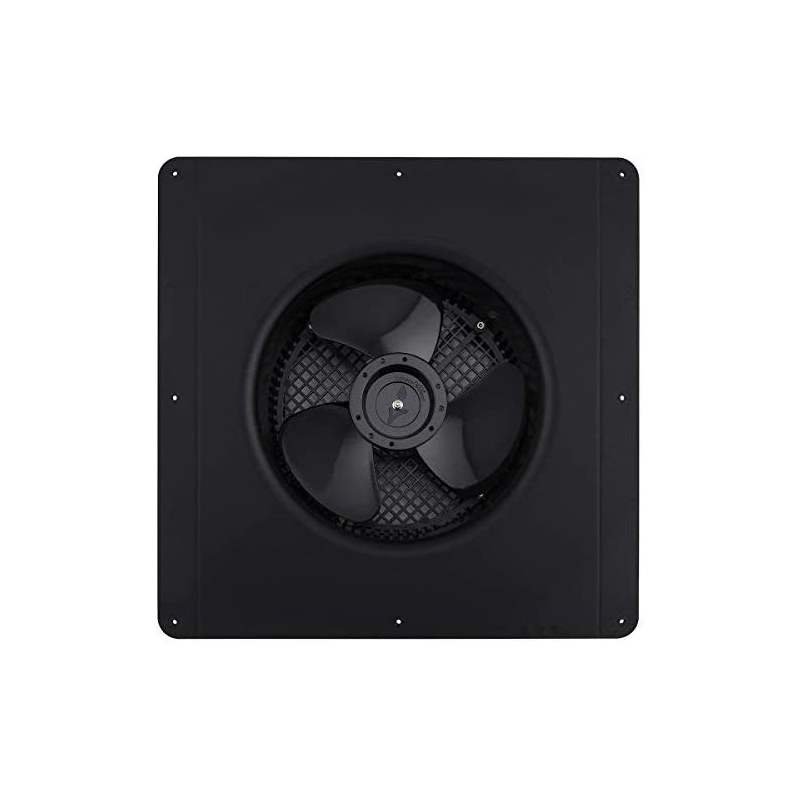

- Brushless DC NSK Japanese Ball Bearings cools up to 500 sq feet of attic space
- Ventilates up to 400 CFM

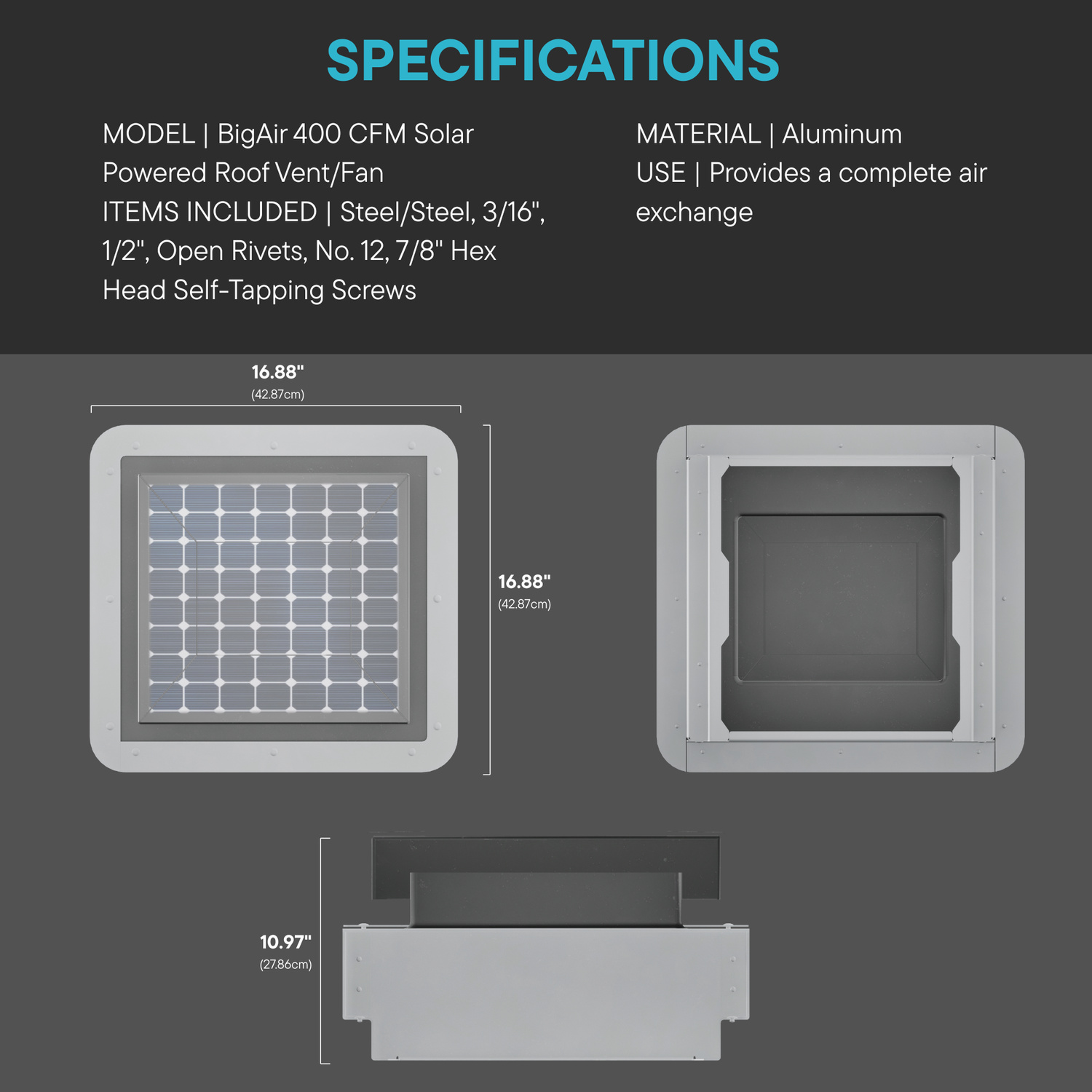

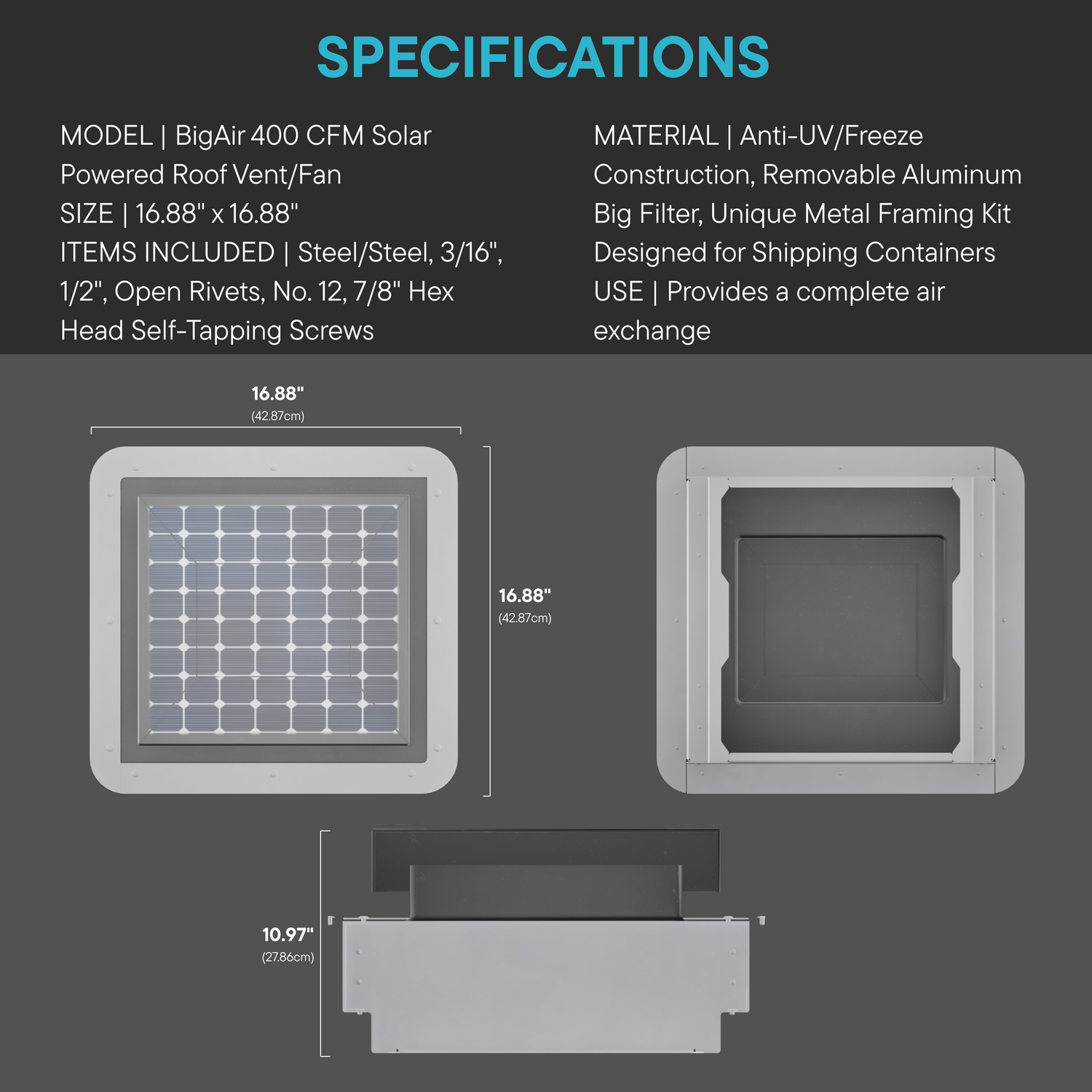

- 11" 3/4 x 15" rough opening
- Vent opening diameter: 9.5"
- Comes with an 11" 7/8 x 14" 11/32 range hood filter (Bug Screen)
- Leakproof flashing
- Quiet operation and no vibration
- Wildlife and hail-resistant

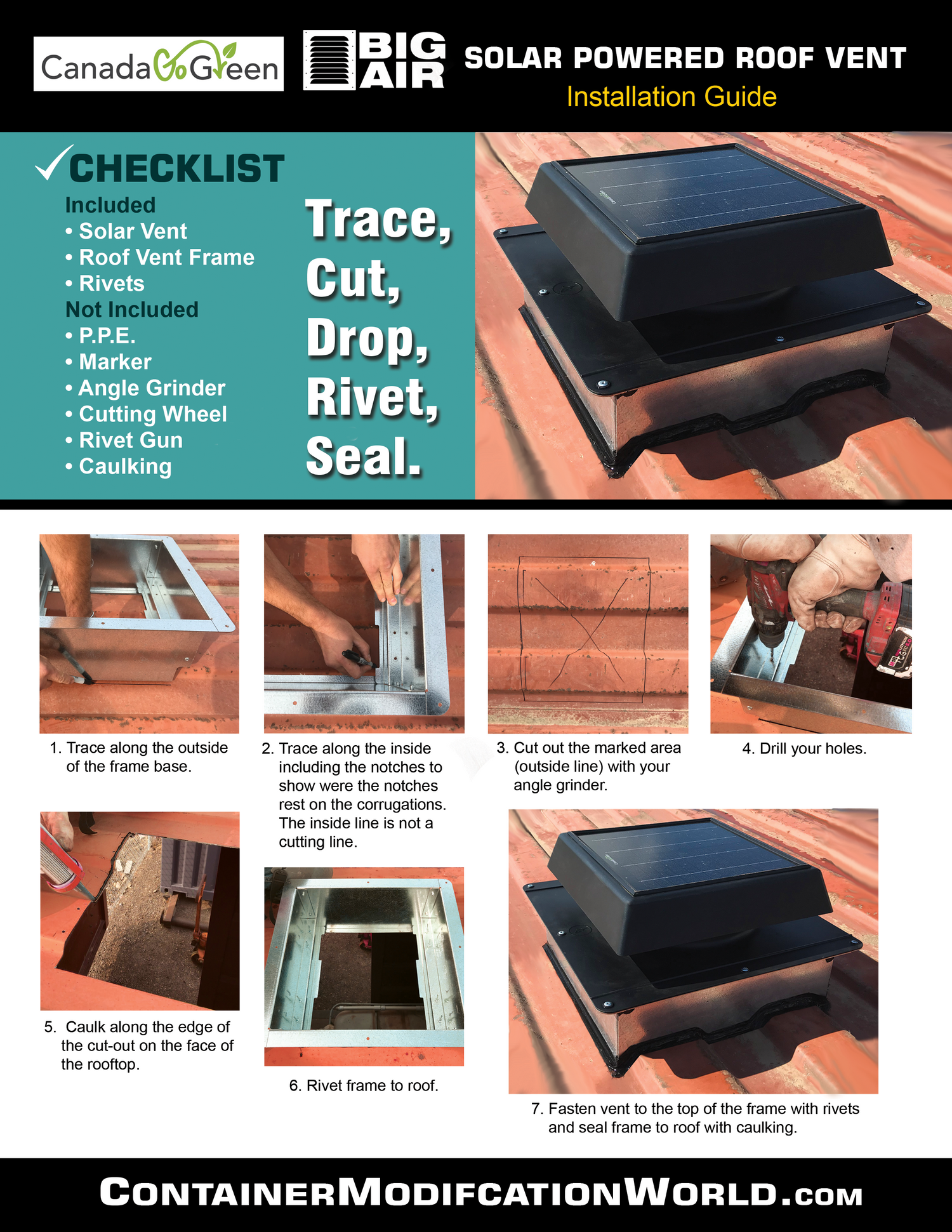

Easy installation!
Included Hardware
- Steel/Steel, 3/16", 1/2", Open Rivets
- No.12, 7/8" Hex Head Self-Tapping Screws
Made in Canada.

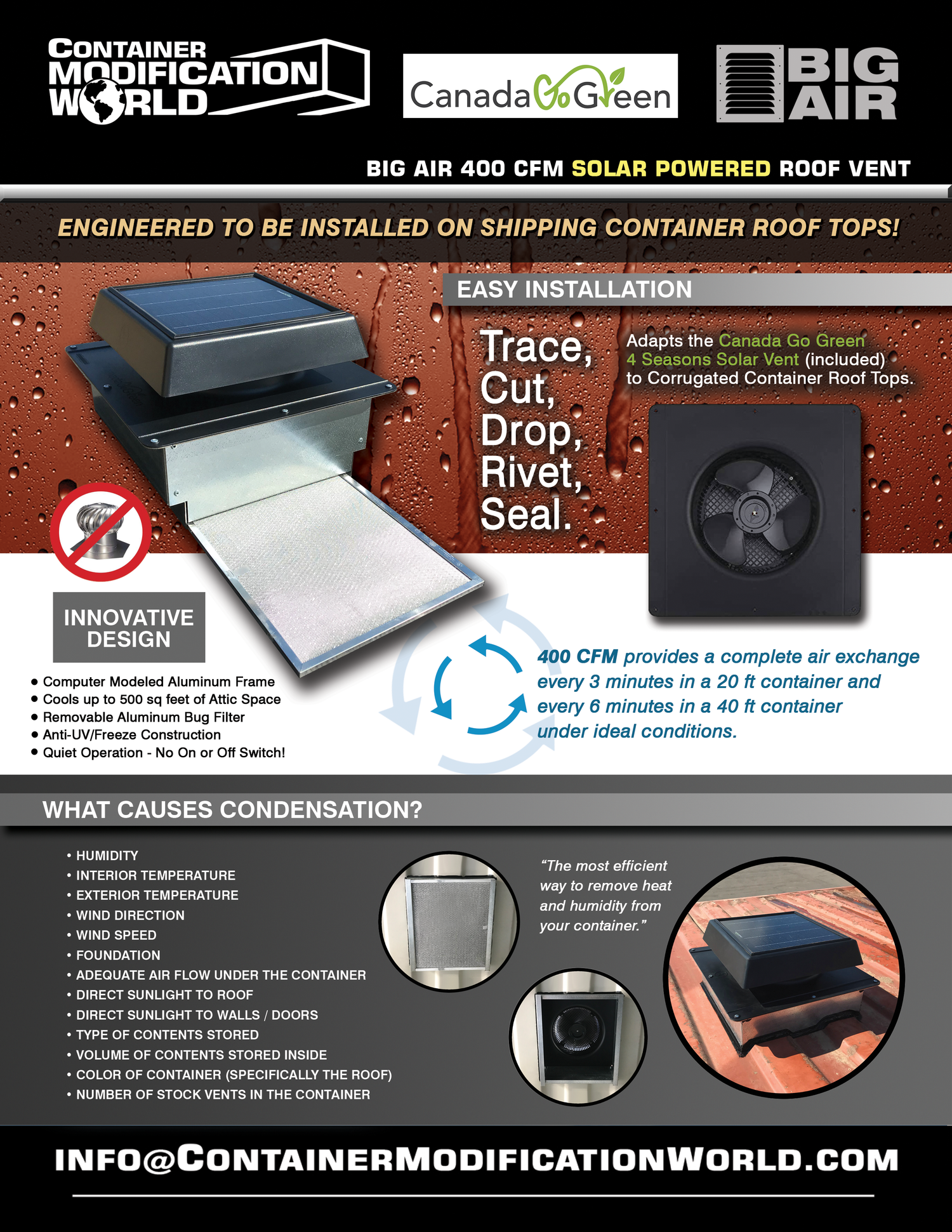

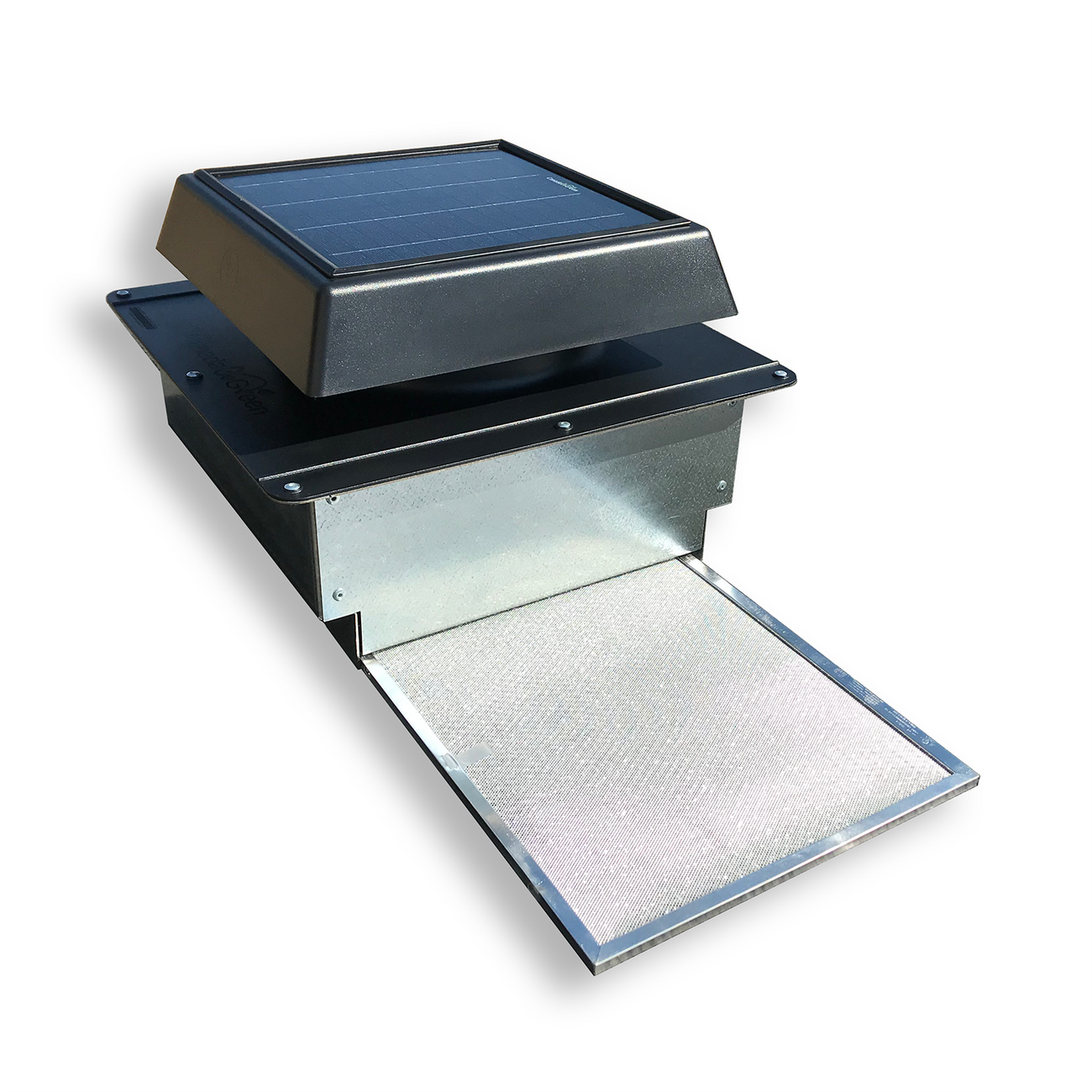

Eliminate moisture and excess heat with our state-of-the-art computer-modeled frame design, which adapts the Canada Go Green 4 Seasons Solar Vent (included) to corrugated shipping container rooftops.
The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen. The above-mentioned variables include, but are not limited to the following:
- Humidity
- Interior temperature
- Exterior temperature
- Wind direction
- Wind speed
- Foundation
- Adequate airflow under the container
- Direct sunlight to roof/walls
10-YEAR LIMITED WARRANTY FOR SOLAR FAN INCLUDED
Canada Go Green offers a 10-year limited warranty to the owner of the property from any manufacturing defects under normal use in material or craftsmanship (including solar panel, flashing, motor, and fan blade) from the original date of purchase. In order to validate your warranty, the customer must register online within 30 days.
In case of a return, you must present proof of purchase to validate your warranty. Canada Go Green does not cover any labor, installation, misuse, abuse, improper handling, or delivery of the product under the warranty. If the purchaser feels the product is defective in any way, please call or write to our Customer Care Department at Canada Go Green.
The Container Guy sells these Container Modification World parts as an authorized dealer. Parts orders are fulfilled and shipped by CMW.
