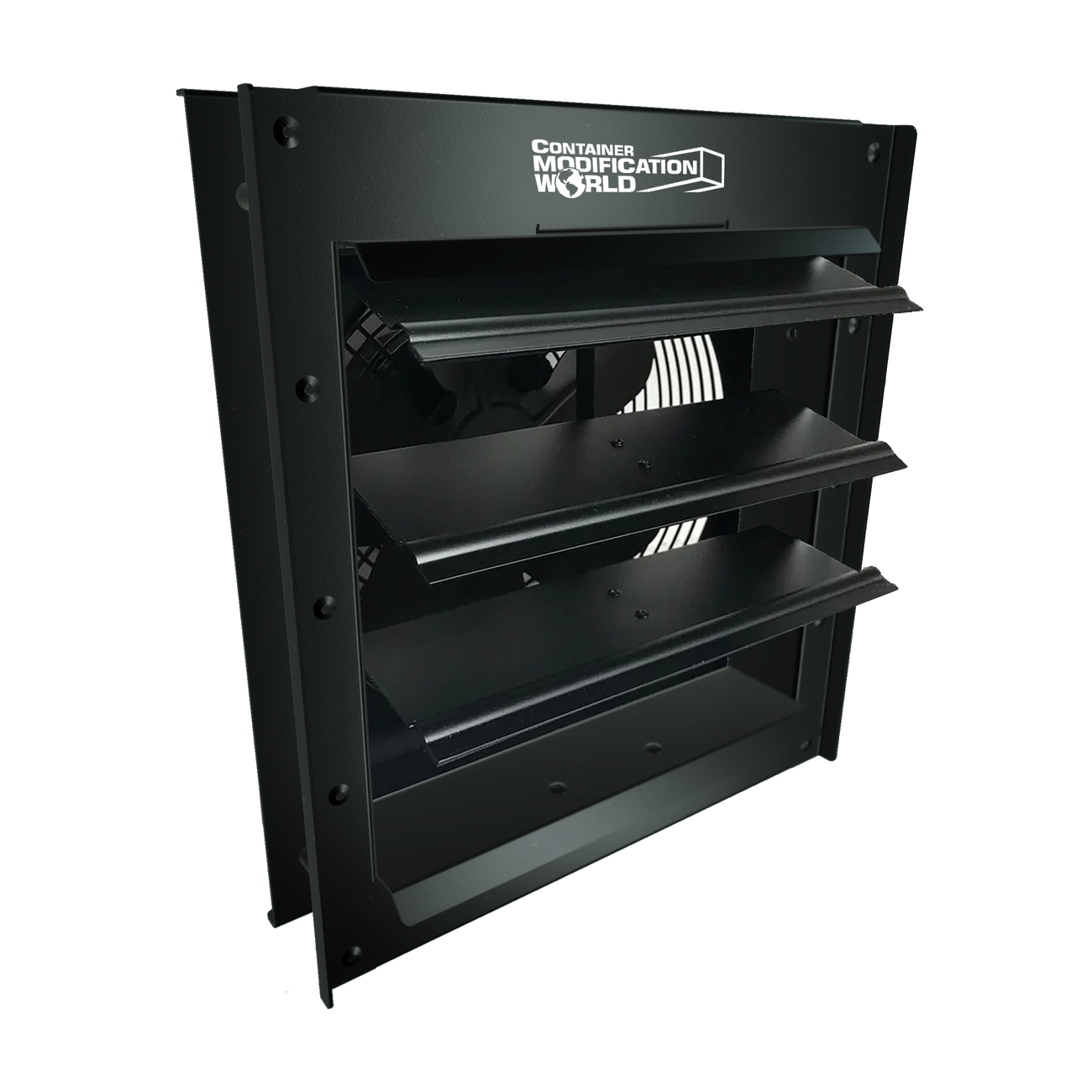

BIG AIR® T10 Air Lift (631 CFM) Electric Exhaust Fan

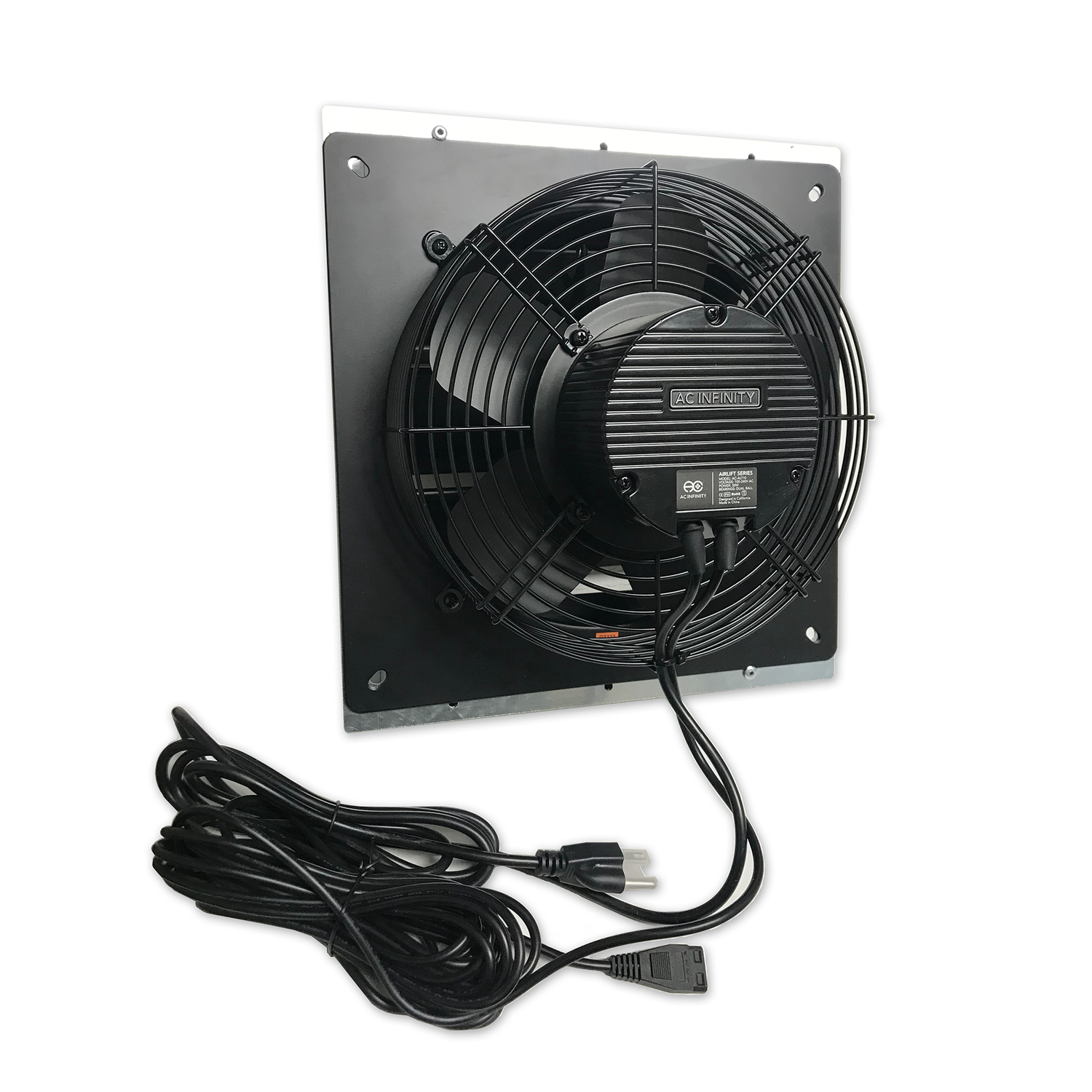

The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller is powered by AC Infinity.

Eliminate moisture and excess heat with our state-of-the-art computer-modeled design.

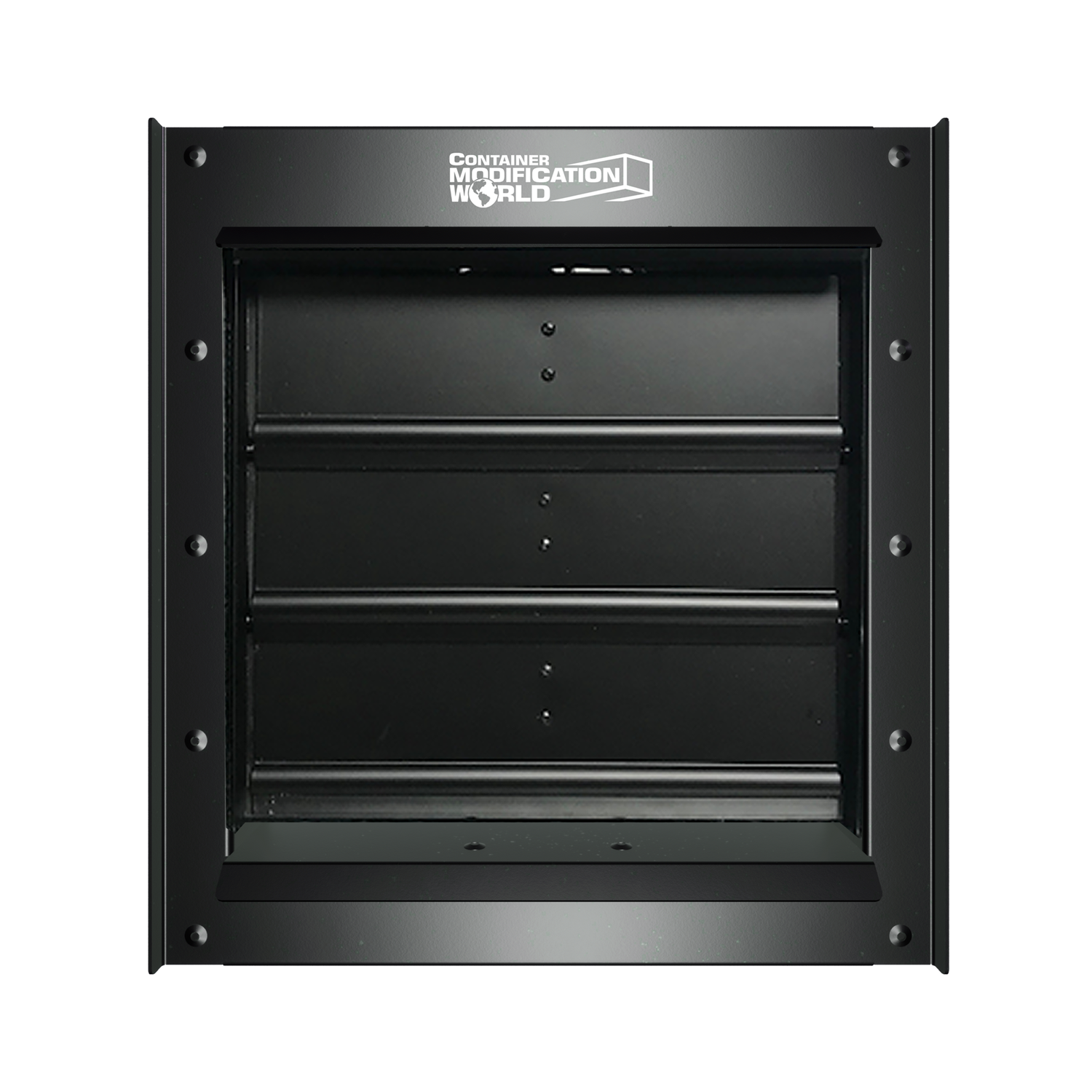

This powder-coated galvanized steel framing kit allows the T10 Air Lift Exhaust Fan to be installed anywhere on shipping container sidewalls and end walls – from floor to ceiling.

• 631 CFM high-airflow exhaust fan designed to expel heat, moisture, odors, dust and stale air from shipping containers, workshops, storage units, garages and enclosed structures - engineered for heavy-duty ventilation performance.

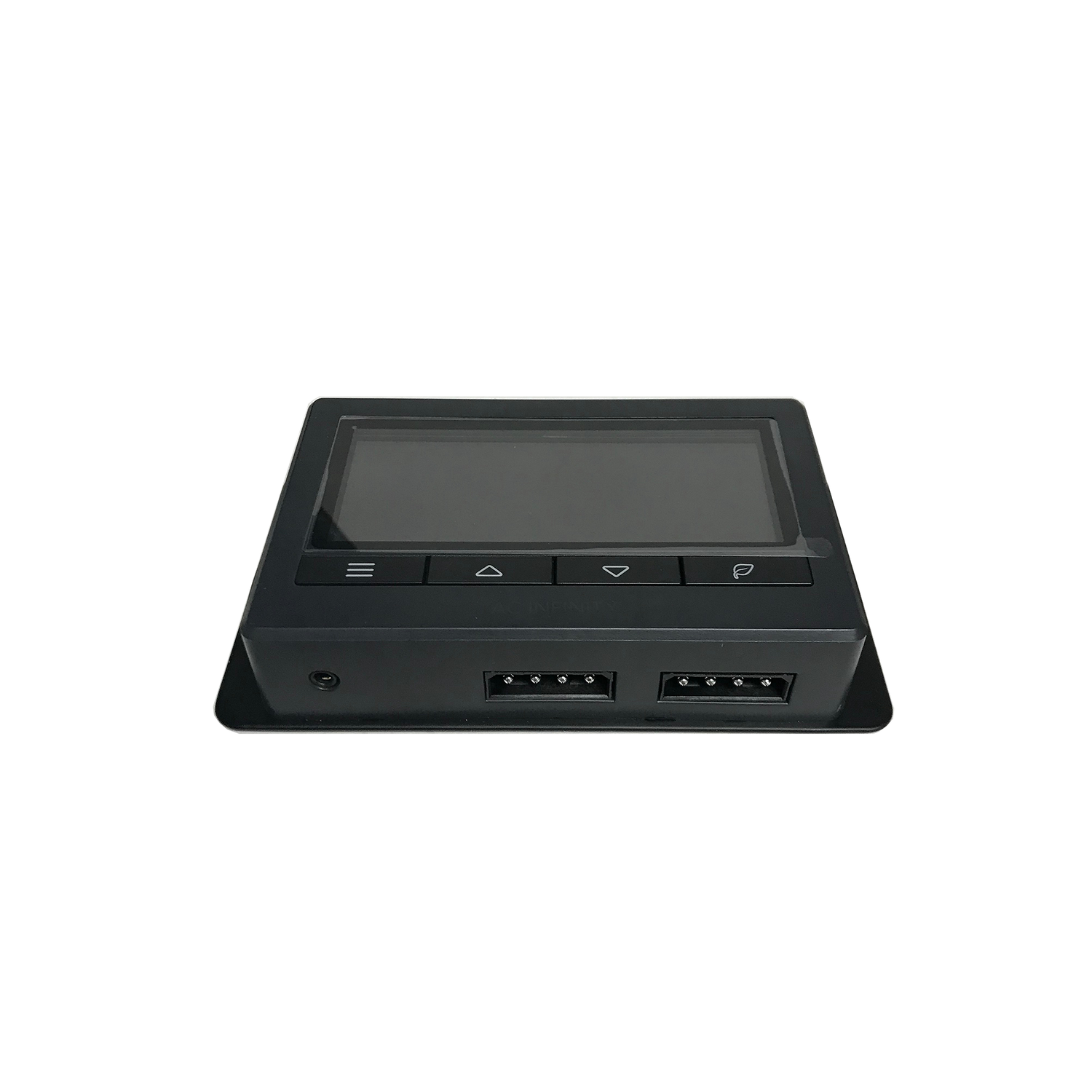

• Smart temperature & humidity controller included with long corded sensor probe allows automatic fan speed adjustments based on real-time environmental changes to help prevent condensation and maintain ideal airflow.

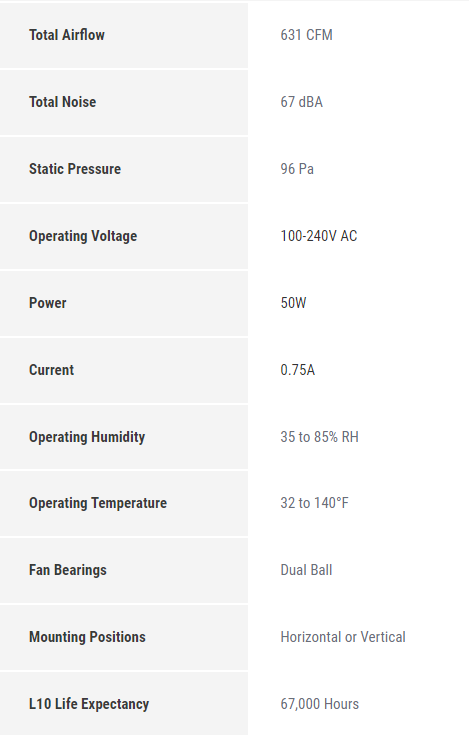

• Programmable EC motor with PWM control maximizes airflow while reducing energy consumption and noise (67 dBA), featuring dual-ball bearings rated for ~67 000 hours of reliable operation.

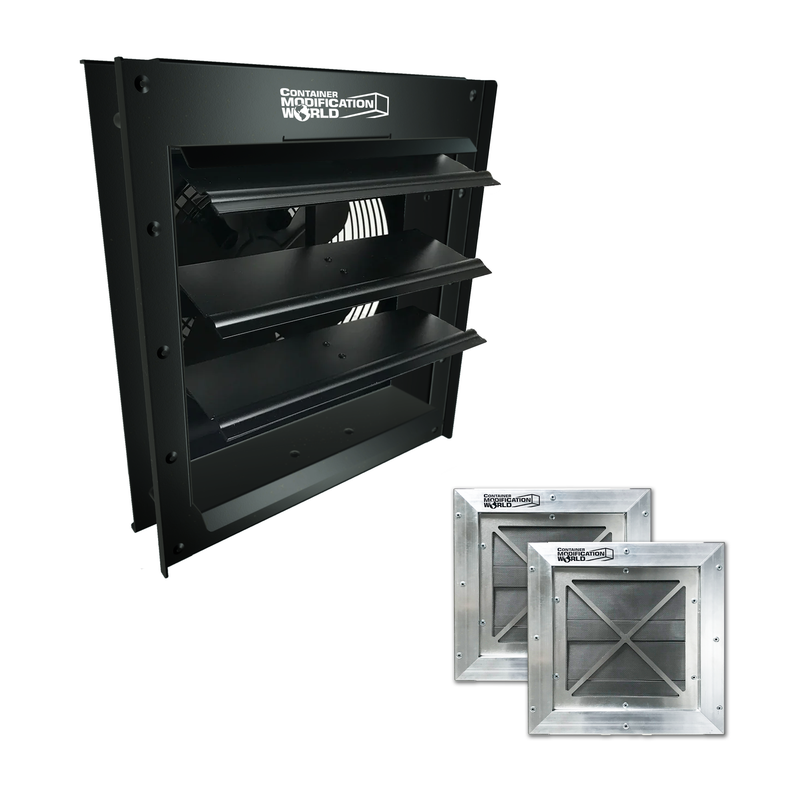

• Bundle includes 2 aluminum intake gravity louvers engineered for sidewall, end wall or door installation to ensure balanced ventilation and passive air intake to complement the exhaust system.

• Powder-coated galvanized steel framing kit and included hardware (marking guide, rivets and self-tapping screws) enables secure DIY or professional installation from floor to ceiling on container walls.

• Rugged, weather-resistant build with steel shutters and lightweight aluminum blades rated IP-44 for dust and liquid resistance - ideal for industrial and semi-outdoor ventilation setups.

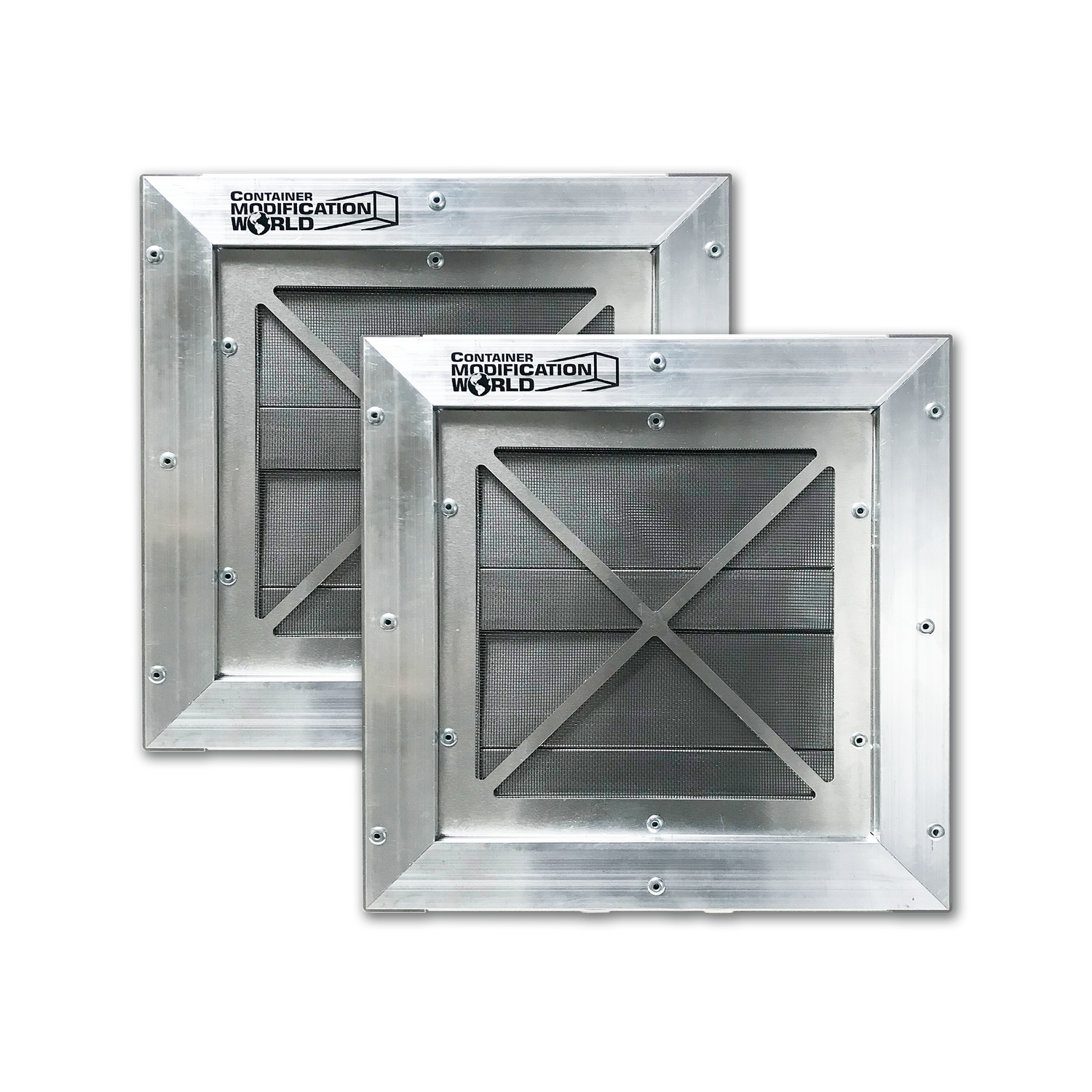

The 10" Aluminum Gravity Louvers are also designed to be installed anywhere on shipping container side walls, end walls, or doors – from floor to ceiling.

The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller comes with a marking guide to make cutting a hole as easy as possible! Rivets and self-tapping screws are also included (we recommend using rivets).

The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen. The above-mentioned variables include, but are not limited to the following:

• Humidity

• Interior temperature

• Exterior temperature

• Wind direction

• Wind speed

• Foundation

• Adequate airflow under the container

• Direct sunlight to the roof

• Direct sunlight to walls/doors

• Type of contents stored

• The volume of contents stored inside
• Color of container
• Number of stock vents in the container

Unfortunately, stock container vents are not enough to prevent condensation. Typically, used containers have between 2 and 4 vents, and the actual total air passage hole is about the size of a dime. These vents are designed to keep sea water out and are meant more as a method to equalize pressure than to exchange air.

The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller is truly a groundbreaking, powerful solution for ventilating shipping containers!

Warranty
Electrical parts are not covered by warranty after purchase unless there is a manufacturing defect.

Included Hardware

• Steel/Steel, 3/16", 1/2", Open Rivets

Installation Instructions

T10 Installation Instructions
