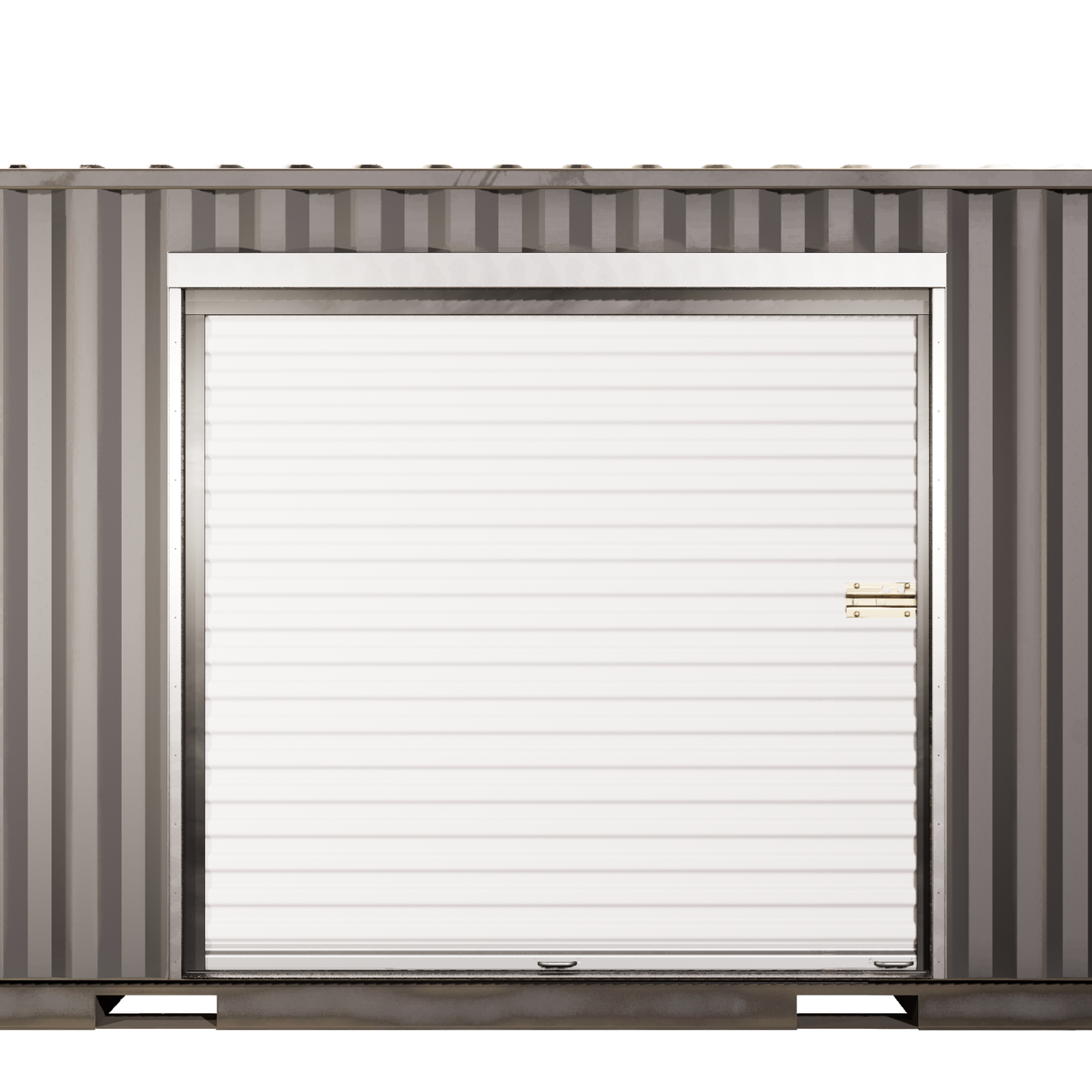

High cube shipping container with a white roll-up door installed using a galvanized steel framing kit. The door is centered on the container sidewall, featuring a flush fit and a clean, weather-sealed finish. Framing kit includes all necessary hardware; roll-up door sold separately.

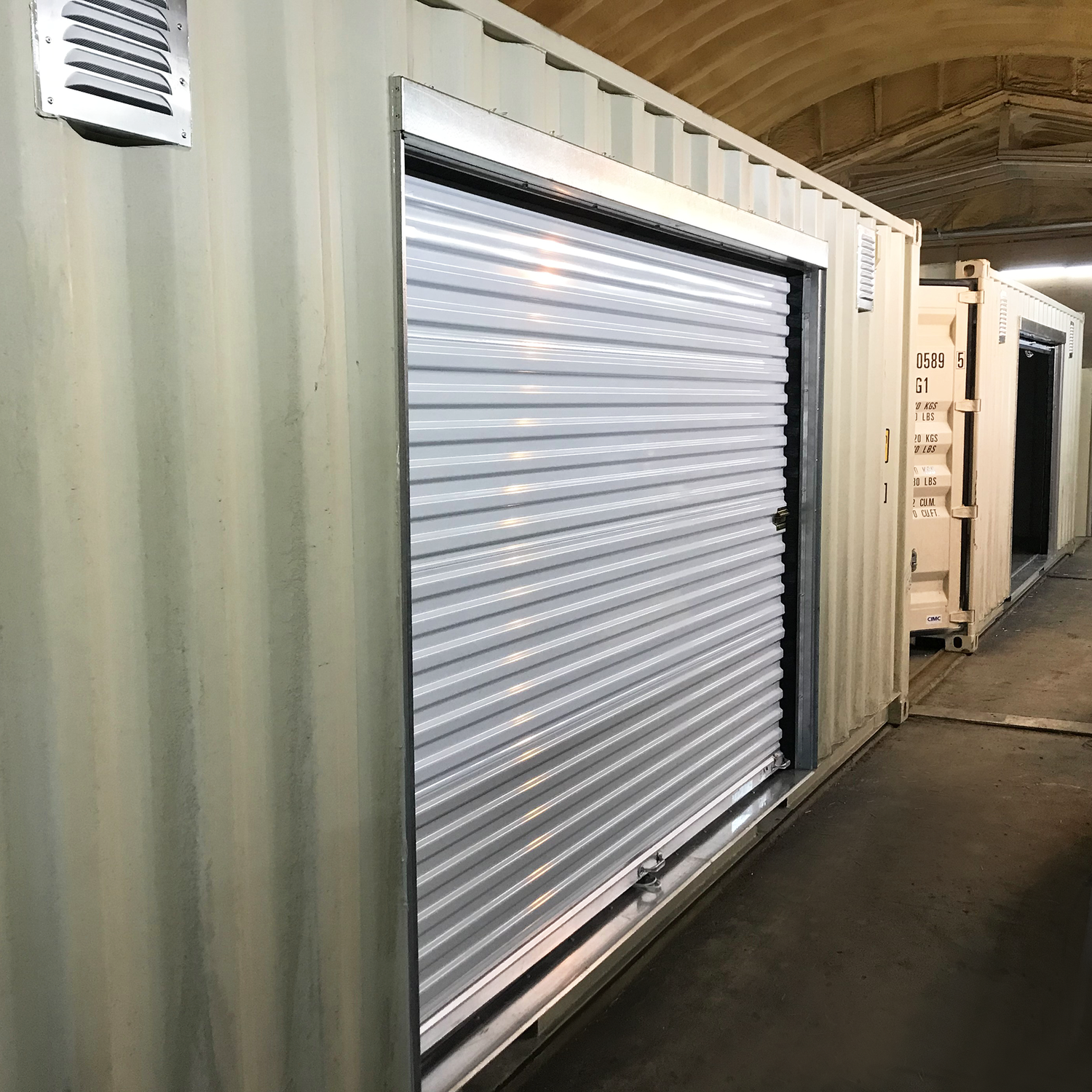

Side view of a roll-up door installed in a high cube shipping container using a galvanized steel framing kit. The door is securely fitted with a flush mount and clean trim, inside a covered storage facility. Framing kit only—door sold separately.

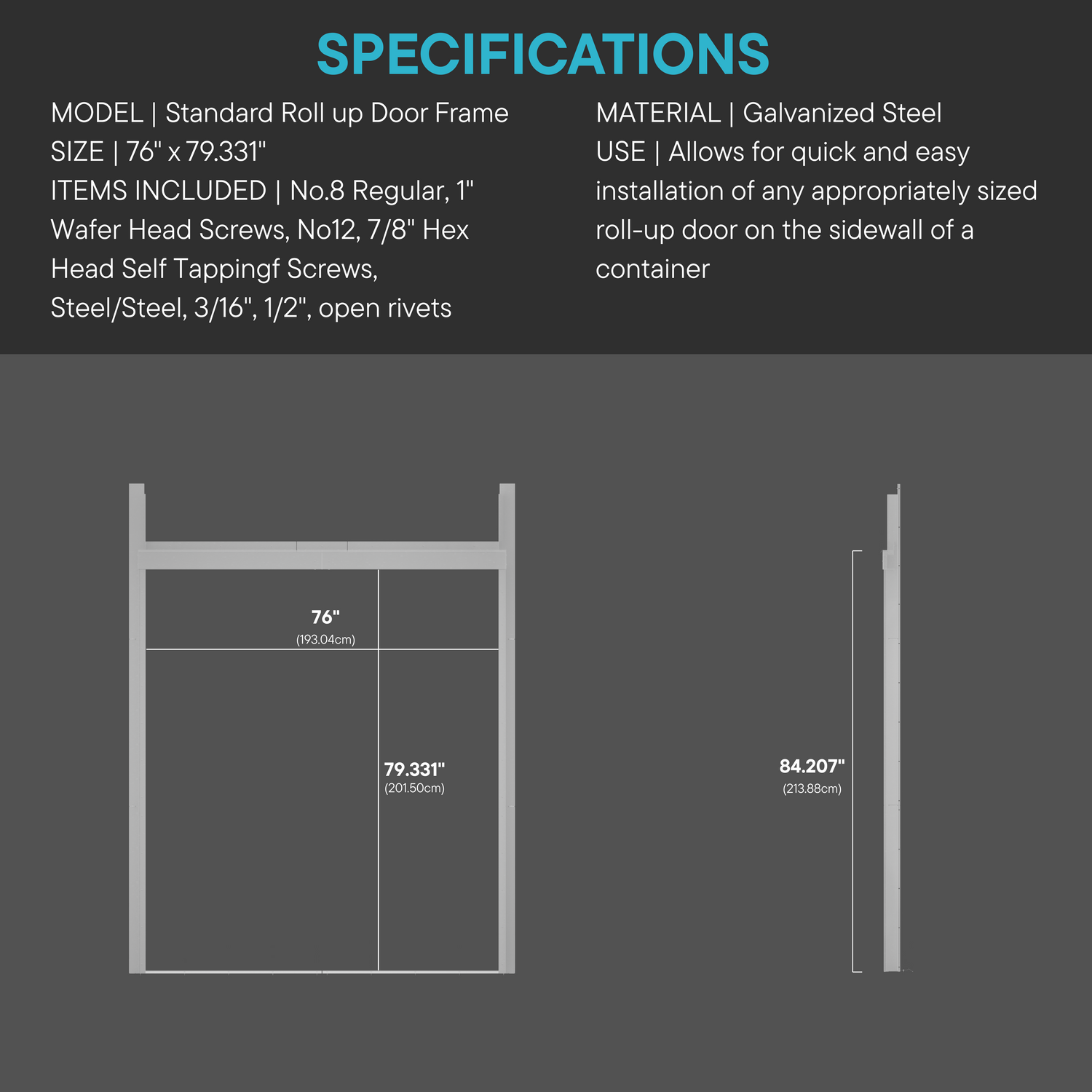

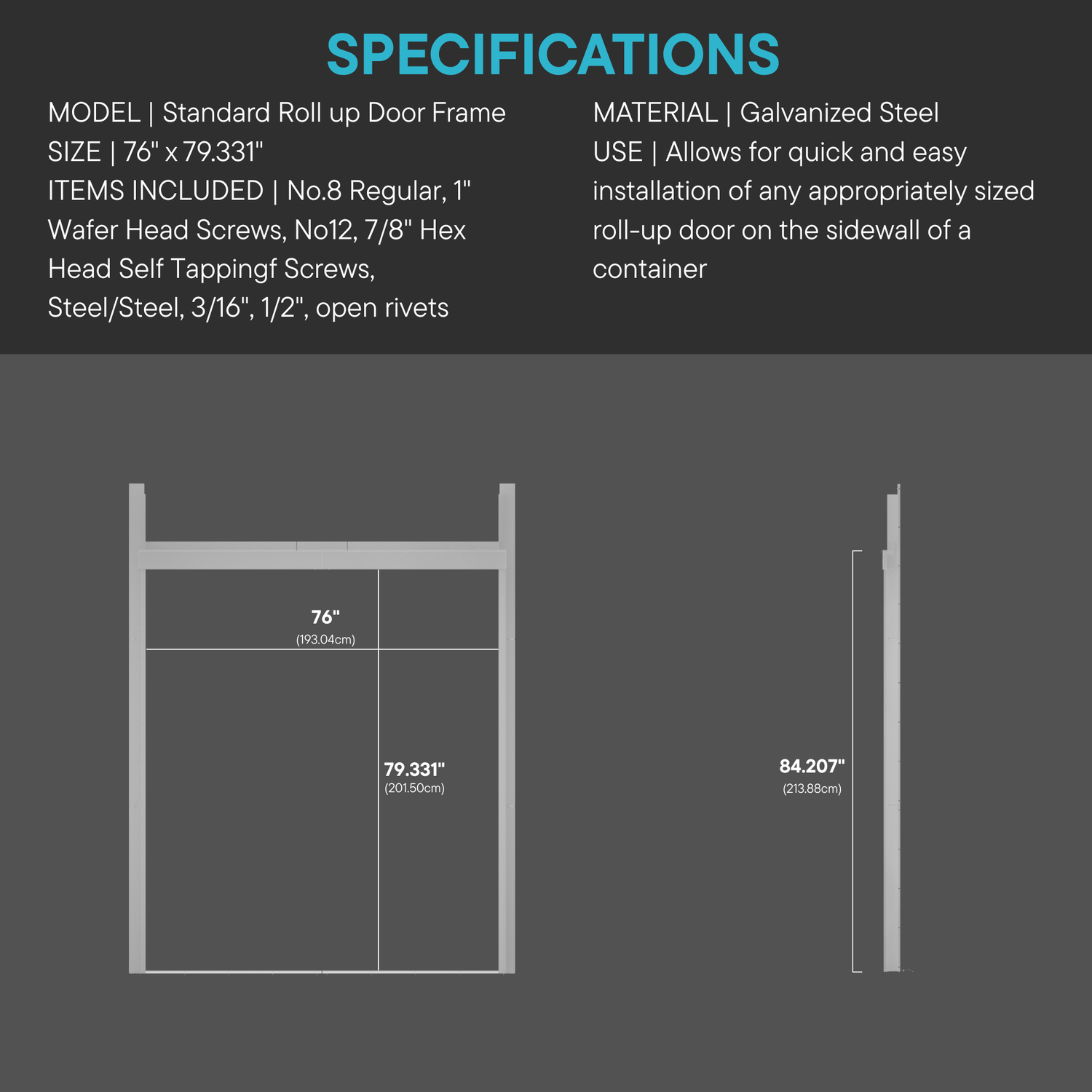

Technical diagram of a standard roll-up door framing kit for a shipping container. The galvanized steel frame measures 76 inches wide by 79.331 inches high with side profile depth of 84.207 inches. Hardware included for installation; door sold separately.

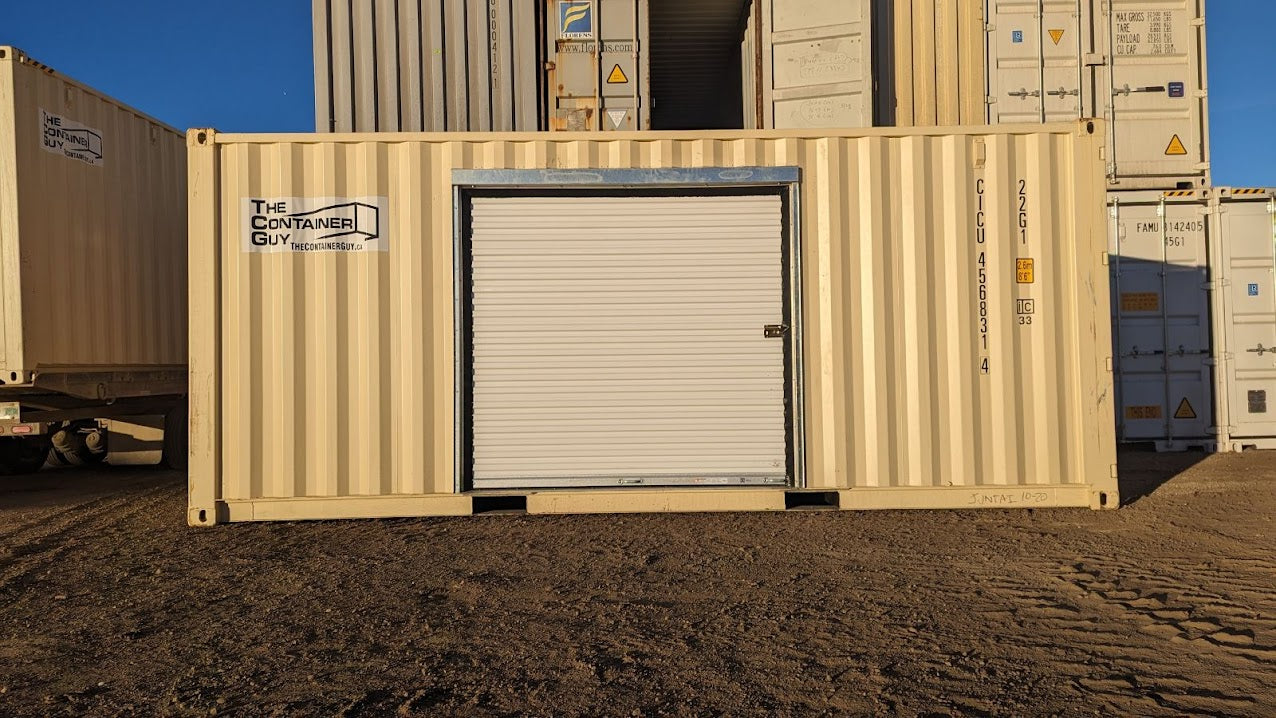

Beige shipping container with installed white roll-up door on the sidewall using a galvanized steel framing kit. Container sits on a dirt lot with other stacked containers in the background. Branding for “The Container Guy” is visible.

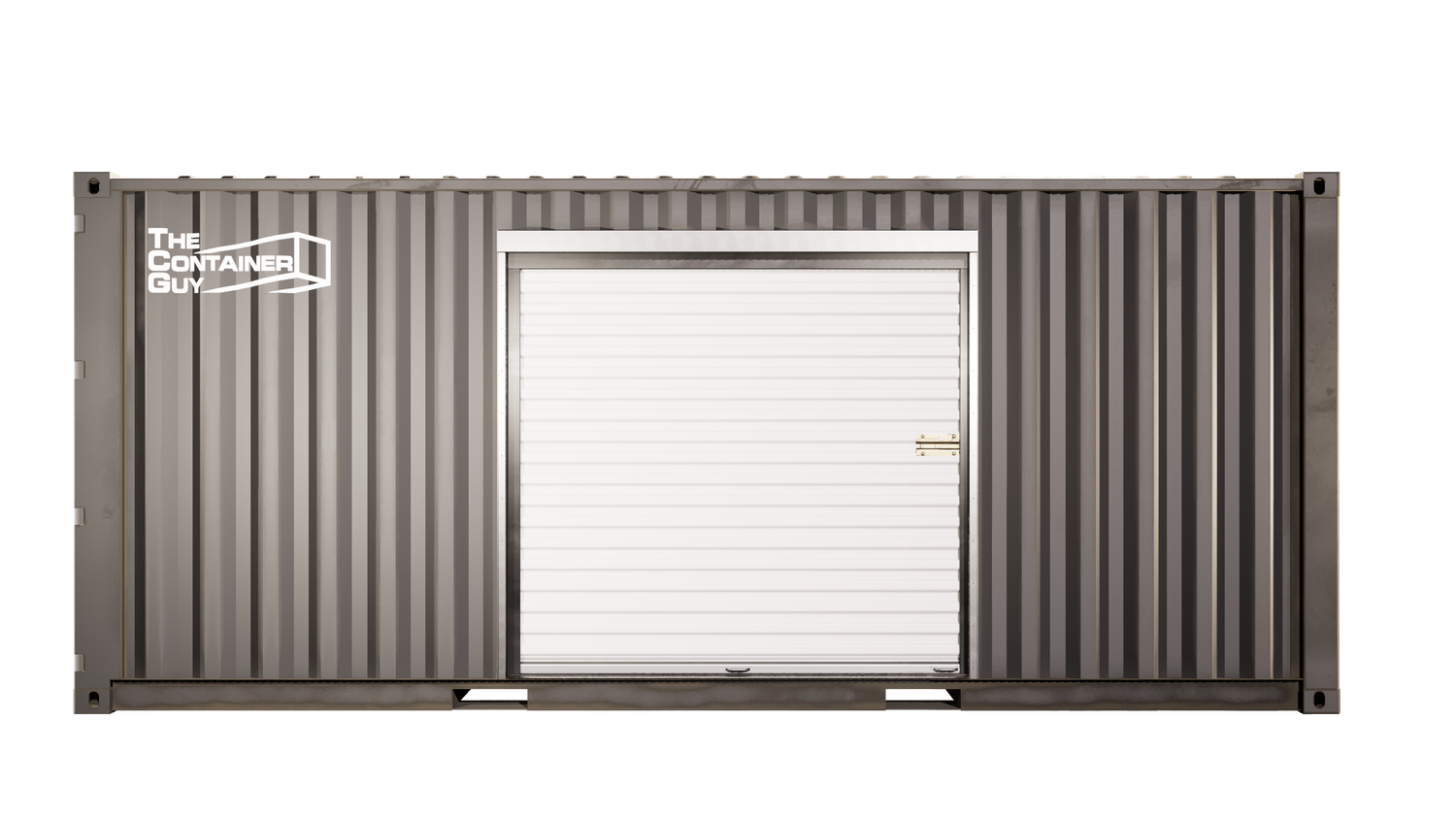

High cube shipping container side view with installed roll-up door framing kit and white roll-up door, featuring 'The Container Guy' logo on the left panel

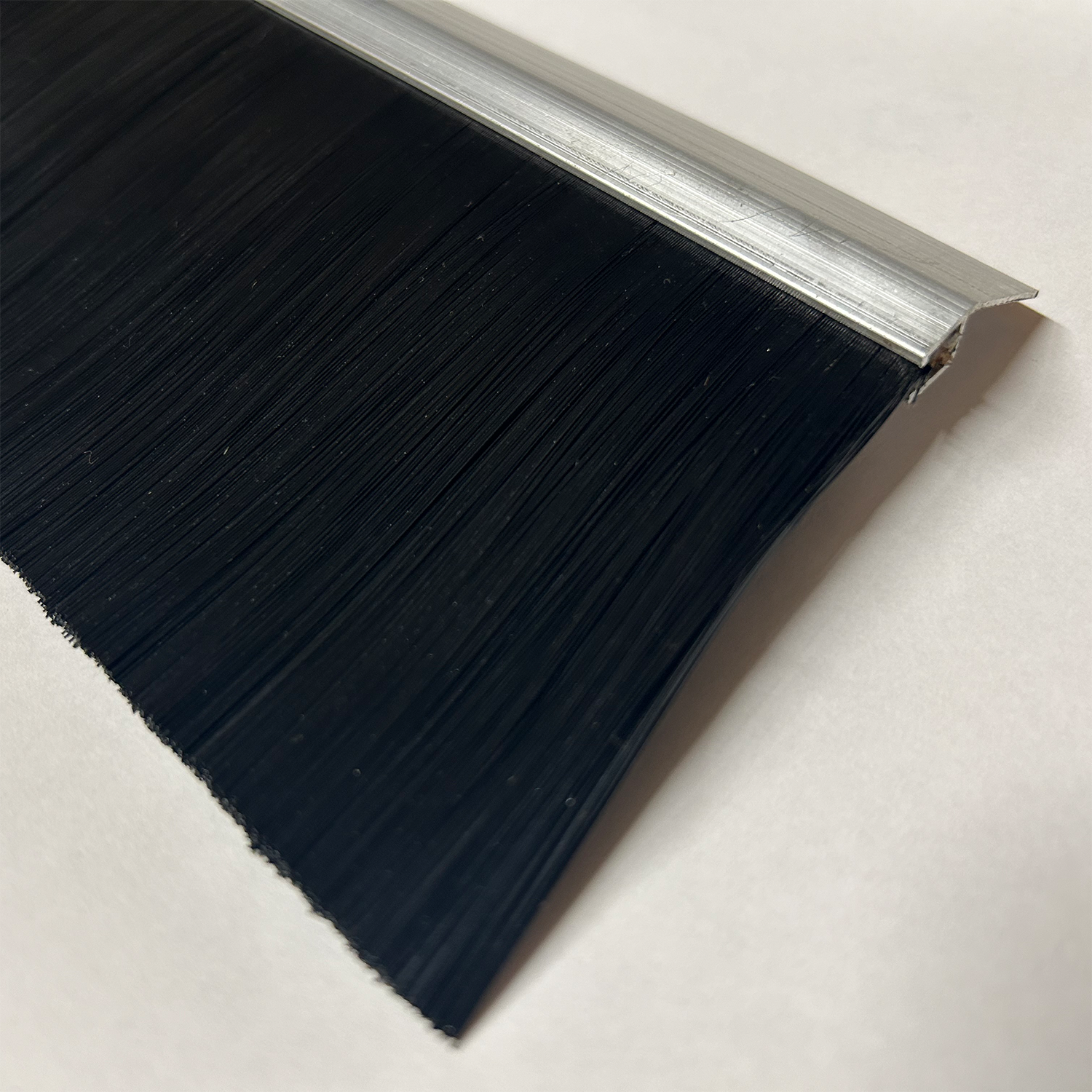

Close-up view of a black brush seal with aluminum holder for roll-up doors, designed for dust and weather protection in container modifications

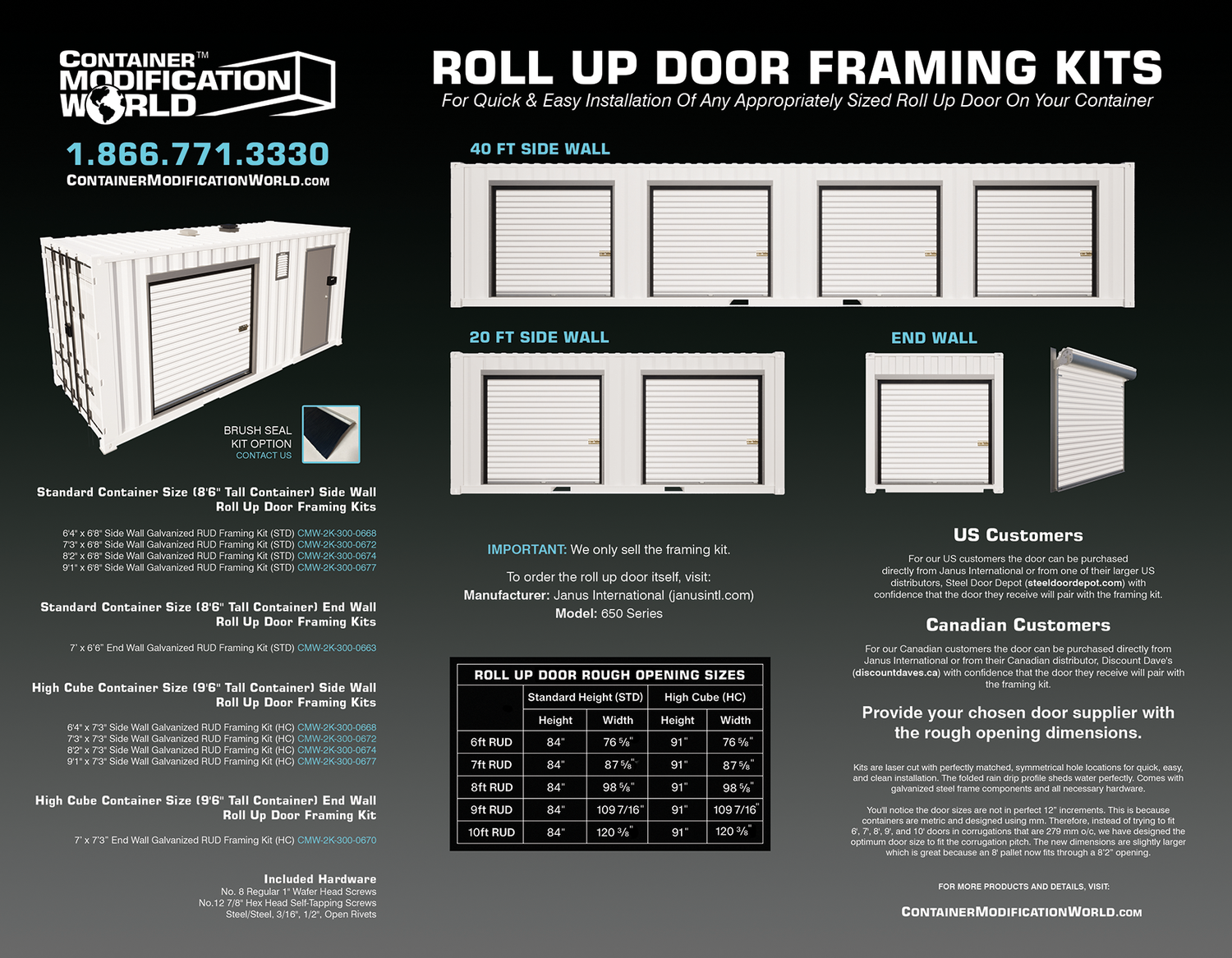

Marketing flyer showing various roll-up door framing kits for standard and high cube shipping containers. Includes product options for 20 ft, 40 ft sidewalls and end walls, model compatibility (Janus 650 Series), rough opening sizes, brush seal option, and ordering details for US and Canadian customers. Features illustrations of installed kits and door configuration variations.
$675.00 CAD
$675.00 CAD
Size: 6'4" x 6'8" Side Wall Galvanized RUD Framing Kit (STD)
  • In stock
  • Inventory on the way

IMPORTANT: We only sell the framing kit, we have included the required information below to order the roll up door itself

Manufacture: Janus International (https://www.janusintl.com/)

Model: 650 Series

US Customers

For our US Customers the door can be purchased directly from Janus International or  from one of their larger US distributors, Steel Door Depot (https://www.steeldoordepot.com/) with confidence that the door they receive will pair with the framing kit.

Canadian Customers

For our Canadian Customers the door can be purchased directly from Janus International or from their Canadian distributor, Discount Dave's (https://www.discountdaves.ca/) with confidence that the door they receive will pair with the framing kit.


Provide your chosen door supplier with the rough opening dimensions

Janus Roll Up Door Model 650 PDF

This framing kit allows for quick and easy installation of any appropriately sized roll-up door on the sidewall of a container. The door is not included.

Brush seal option is available.

Engineered framing kit is laser cut with all perfectly matched, symmetrical hole locations for quick, easy, and clean installation. The folded profile sheds water perfectly.

Comes with galvanized steel frame components, all necessary hardware and edge trim for the top of the door for a clean appearance and watershed seal.

You'll notice the door size is in inches. This is because containers are metric and designed using mm. Therefore, instead of trying to fit 6', 7', 8', 9', and 10' doors in corrugations that are 278 mm o/c, we have designed the optimum door size to fit the optimum frame design. The new dimensions are slightly larger which is great because an 8' pallet now fits through a 98 1/2" door.

If you are a dealer, this may require a little adjustment to your system/inventory but once you make the switch, we promise, you won't look back.

Included Hardware

  • No.8 Regular, 1" Wafer Head Screws
  • No.12, 7/8" Hex Head Self Tapping Screws
  • Steel/Steel, 3/16", 1/2", Open Rivets





Installation Instructions

Download Installation Instructions (PDF)
