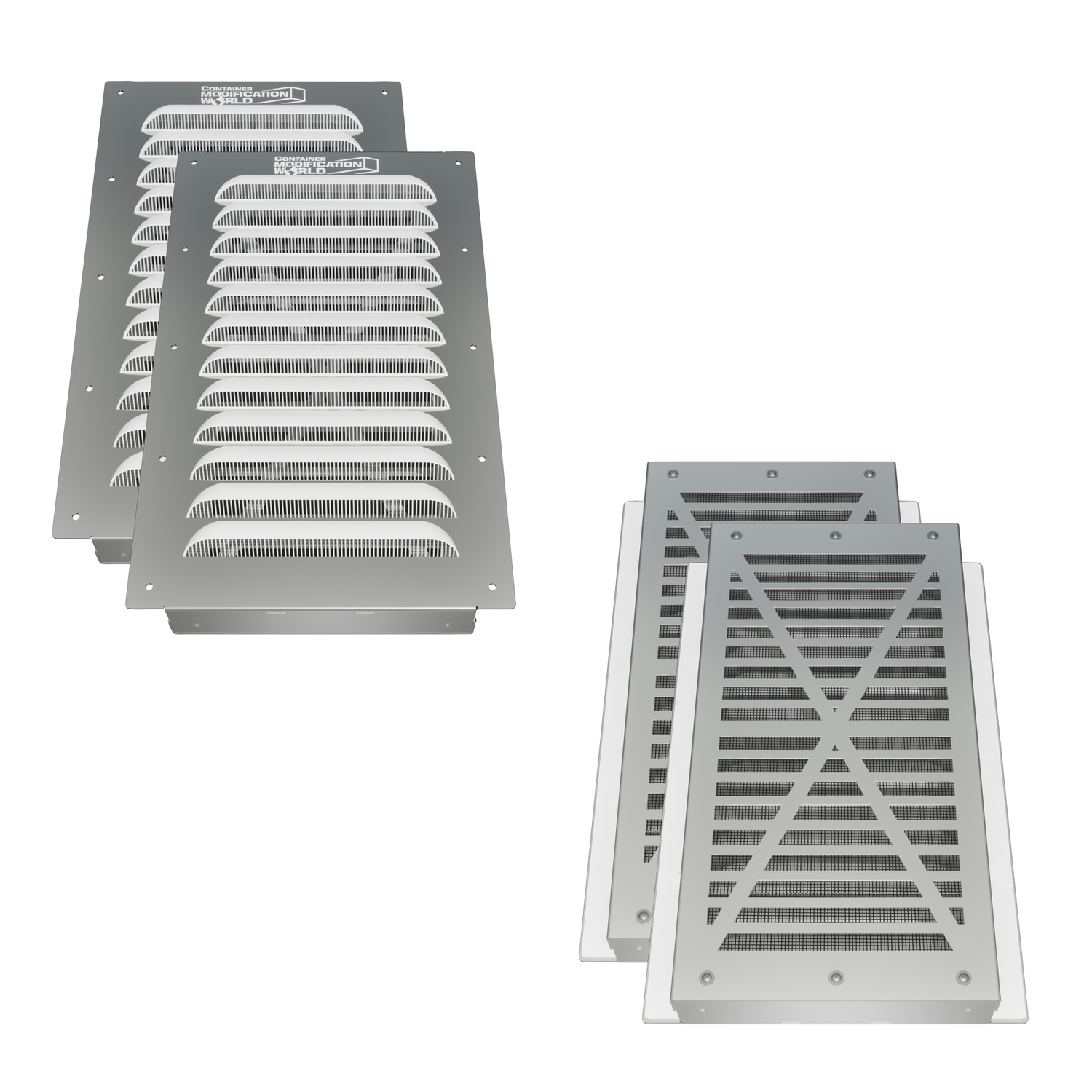

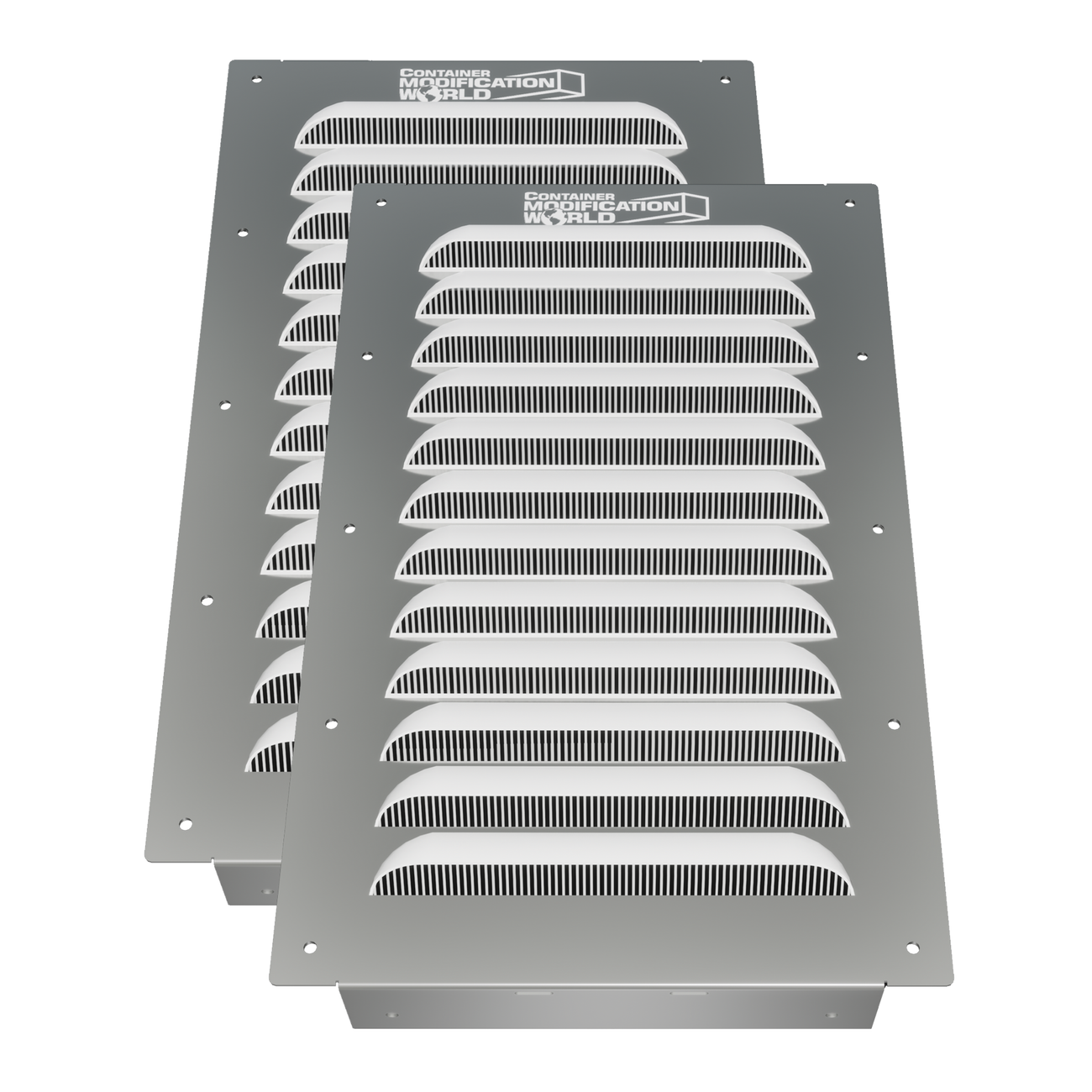

BigAir Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.

BigAir Louvered Container Vents (sizes: 30 & 45), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets). BigAir60 Vents do not come with a marking guide.

A minimum of two vents are required per container for temperature & moisture control in temperate climates. Four vents per container are suggested in tropical climates. For HAZMAT ventilation, two vents installed high (3" down from the 60mm tubing) and two vents installed low (6" up from the container floor) is suggested. Customer's responsibility to ensure OSHA compliance when storing hazardous materials. Vents that

Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BigAir will never rust!

The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.

The above-mentioned variables include, but are not limited to the following:

► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
► Direct sunlight to roof
► Direct sunlight to walls/doors
► Type of contents stored
► The volume of contents stored inside
► Color of container
► Specifically the roof
► Number of stock vents in the container


Features:

• Engineered to be installed anywhere on shipping container side walls, end walls or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
• Utilizes Duraflo 680812 CSA Approved Gable Vent
• High UV Resistant Polypropylene and Laser Cut Aluminum Frame will never rust!
• 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose
• Big Air 30 = 9” x 10 ½” Rough Opening
• Big Air 45 = 9" x 14" Rough Opening

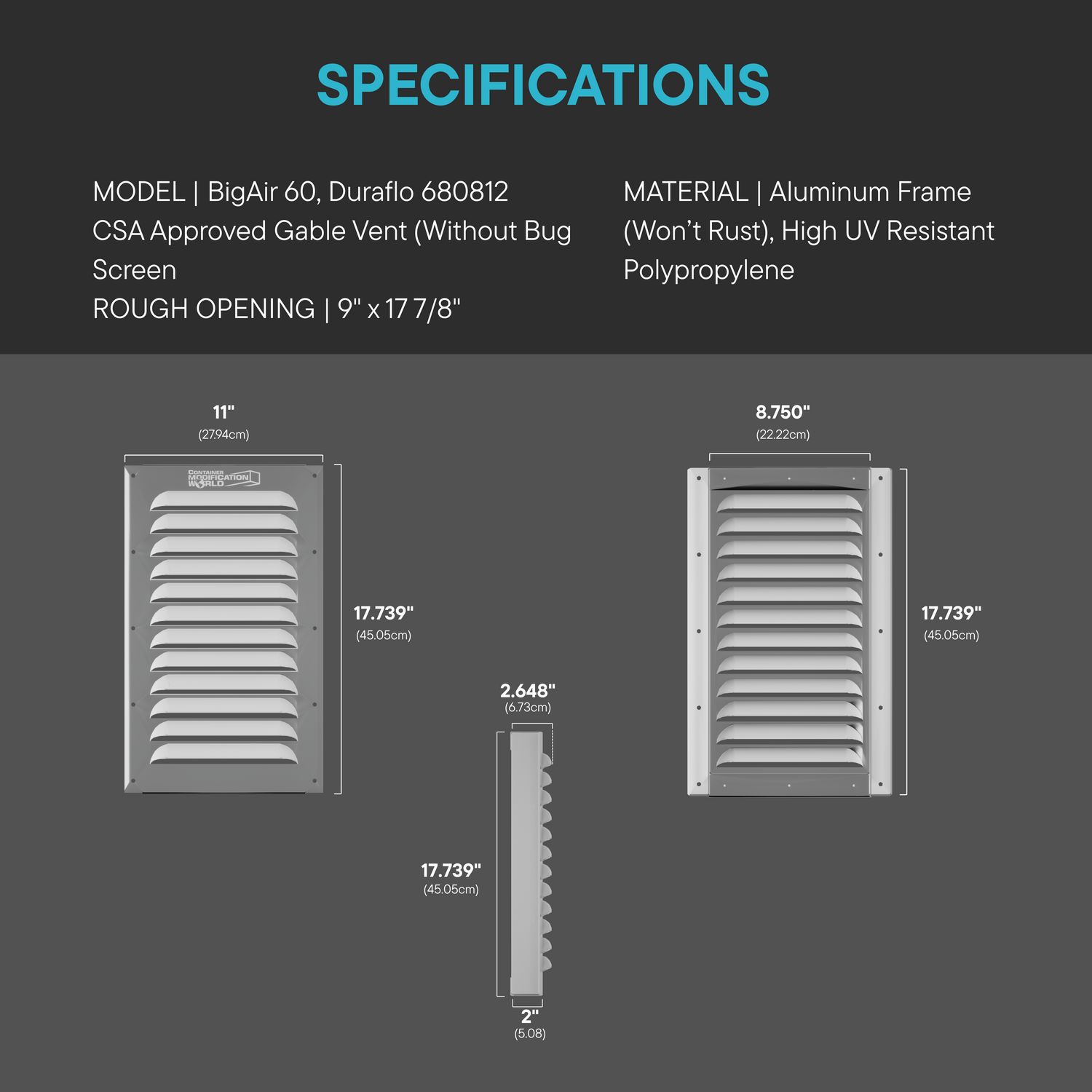

• Big Air 60 = 9” x 17 ⅞” Rough Opening
• Disclaimer: Ensure Your Container Complies With OSHA When Storing Hazardous Materials
• Includes Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self Tapping Screws

Installation Instructions

BigAir30 Installation Instructions (Download PDF)
BigAir45 Installation Instructions (Download PDF)
BigAir60 Installation Instructions (Download PDF)
